Soundavo CSA-60 Owner's Manual

2 channels class d amplifiers

Advertisement

CSA-60
CSA-150
CSA-60
2 CHANNEL
CLASS D AMPLIFIERS
OWNERS MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CSA-60 and is the answer not in the manual?

Questions and answers

Summary of Contents for Soundavo CSA-60

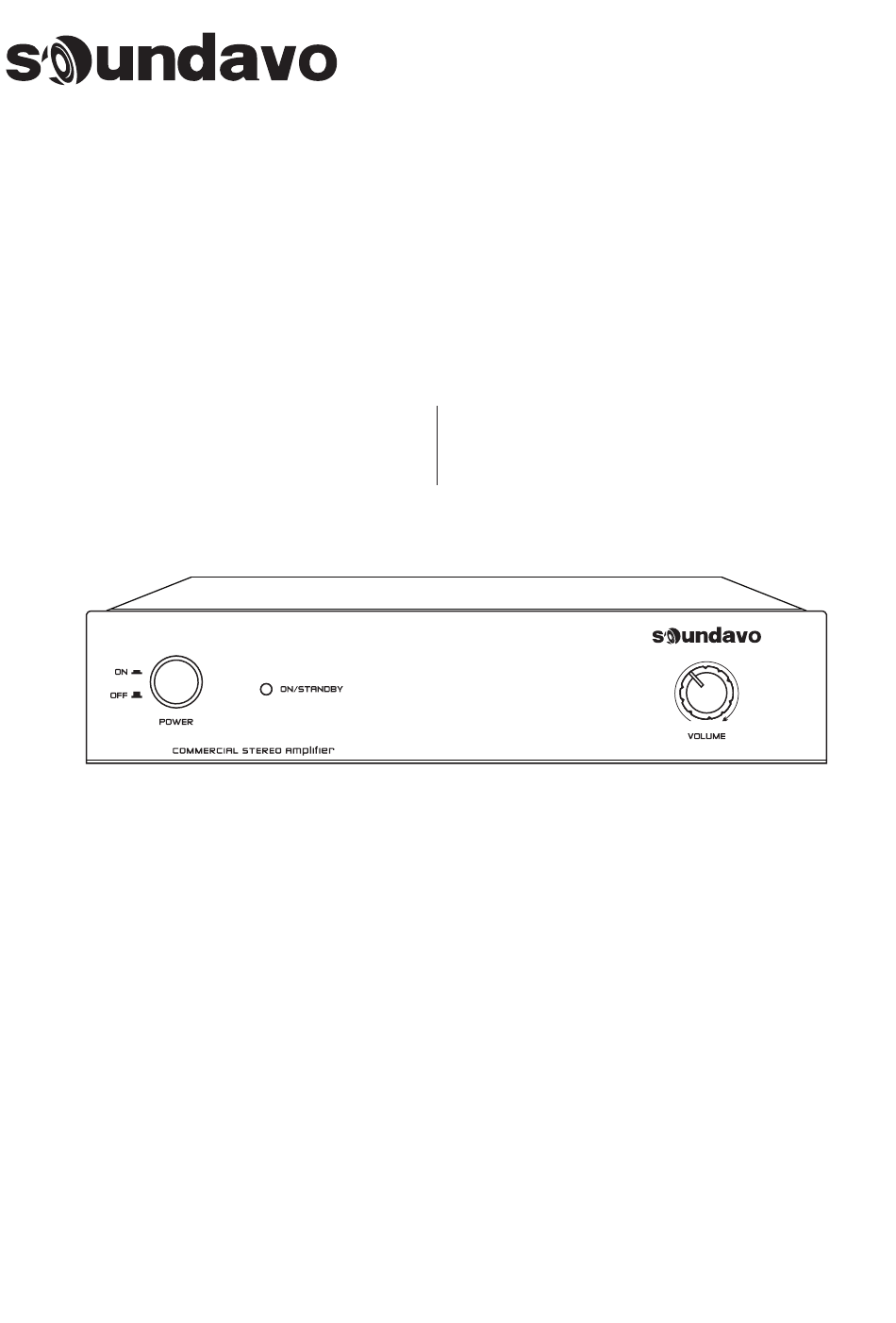

  • Page 1 CSA-60 2 CHANNEL CSA-150 CLASS D AMPLIFIERS CSA-60 OWNERS MANUAL...
  • Page 2 Thank you for purchased Soundavo product. Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. WARNING 1. Do not place or install this device in an area where it can be exposed to excessive amounts of dust, humidity, oil, smoke, or combustible vapors.
  • Page 3: Package Contents

    Also includes an auto-ON feature so the units do not need to be powered manually, just hit play and the amps will power on automatically! With a broad range of power output to pick from, the Soundavo CSA amplifier series are a great solution for any desired application.
  • Page 4 CSA-60 AC IN:115V, 50/60Hz 150W MODE selection between Stereo, Mono, or Bridge Connection to speakers using the included terminals connector • For stereo operation, connect the Left and Right speaker wires to the corresponding terminals • For bridge-mono operation, connect the positive speaker wire to the L+ and the negative speaker wire to the R- terminals Connect a source device to the INPUT terminals - 3.5 or RCA*...
  • Page 5 Source Speaker Wire Speakers CSA-60 Connect an audio source to either the 3.5mm or the dual-RCA inputs 2. Connect the speaker wires to the provided terminals connector, ensuring the negative port on the amp is going to the negative terminal on the speaker(s), and the positive port on the amp is going to the positive terminal on the speaker(s).
  • Page 6: Specifications

    SPECIFICATIONS Model Number: CSA-60 CSA-150 Power Output 60W x 2 150Wx2 (RMS @ 8 Ω) Power Output 90W x 2 225Wx2 (RMS @ 4 Ω) Bridge Output 180W 450W (RMS @ 8 Ω) <1%(Rated power: <1%(Rated power: Total Harmonic Distortion (THD): 60W @ 8Ω)

This manual is also suitable for:

Csa-150
