Page 3

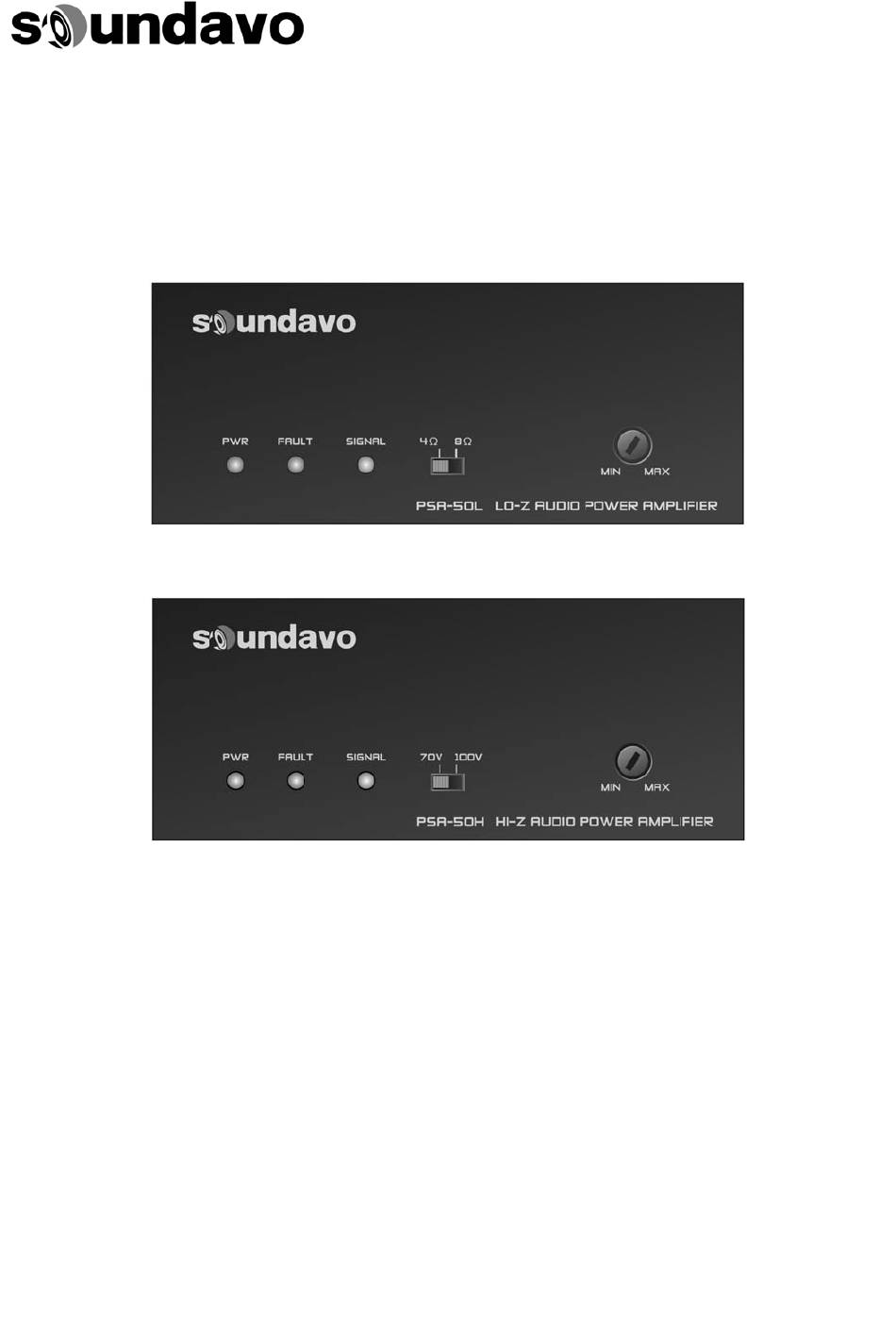

RONT PANE EL PWR: Green n LED, indica ates operat ting power s supplied fro om AC line p power FAULT: Red LED, indicat tes an over‐ ‐temperatu ure or over‐c current faul lt SIGNAL: Bi‐c color Green n/Red LED, g green indica ates input s signal prese nce d red indica ates withou ut input sign nal Output Swit tch: 4Ω/8Ω switch on t the front pa anel of PSA‐ ‐50L ...
Page 4
OPERATING DIAGRAM In nput Conne ction O Output Conn nection ...
Page 5
Assemble Diagram Before the amplifier can be installed a rack, please prepare the optional rack ears and Fix plate, and then follow below steps to install. A: Assemble Single Amplifier A mplifier Dime ns ion Unit: mm Rack Ear (L) Unit: mm (O ptional p art) Ass emble Diagram Finis hed ...
Page 6
SPECIFICATIONS PSA‐50L PSA‐50H Output Channel 1 1 Max. Output / CH 50 W @ 4Ω/8Ω 50 W @ 70V/100V Frequency Response 20Hz~22KHz +0/‐3dB @ 4Ω 20Hz~15KHz +0/‐3dB @ 70V/100V THD @ Max power < 1% @ 4Ω < 1% THD @ 1/8 full power < 0.2% @ 4Ω < 0.2% ...
