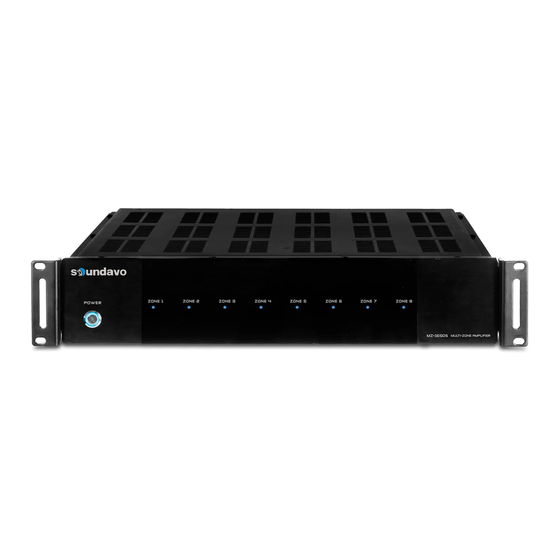

  • Page 1 MZ-1650S MULTI ZONE MZ-1250S POWER AMPLIFIER MZ-850S OWNERS MANUAL...
  • Page 2 Thank you for purchased Soundavo product. Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. WARNING 1. Do not place or install this device in an area where it can be exposed to excessive amounts of dust, humidity, oil, smoke, or combustible vapors.

  • Page 3: Thermal Protection

    INTRODUCTION The Soundavo MZ series multichannel power amplifiers are ideal for use in adding additional power in distributed audio systems or combining with the commercial sound installation, home theater applications. The MZ-850S provides 8 channels, MZ-1250S provides 12 channels and MZ-1650S provides 16 channels of digital amplifications.

  • Page 4: Rear Panel

    REAR PANEL 7 8 9 1. Bus 12VDC Trigger In/Out 4. Optical Input The trigger input is a handy feature when For components with Digital Optical Outputs sending connecting the amplifier to an automated audio digital audio signals to each zone system, The 3.5mm mini- plug jack will accept a 5.
  • Page 5 MZ-1250S: 16.81”W x 3.46” H x 16.14”D (42.7 x 8.8 x 41.0 cm) Delay Time: Can be adjusted per each zone to either 5 seconds, 5 minutes, or 10 MZ-1650S: 16.81”W x 3.46” H x 16.14”D (42.7 x 8.8 x 41.0 cm) Weight: minutes .

  • Page 6: System Configuration

    Bridged mode. When MZ-1650S or MZ-1250S or MZ-850S is working as a home theater amplifier, the amplifier could support up to a 7.1 or 5.1 surround system, and recommend using the Bridged mode to have the higher outputs.
  • Page 7 Bridged Mode When the amplifier is in Bridged mode operation, a single channel (the left) is used to provide a higher power mono output. Use one channel pair to amplify the left channel by connecting the left audio signal to the L input of a channel pair, setting the Stereo/Bridge switch to "Bridge" and connecting the speaker as indicated below.
