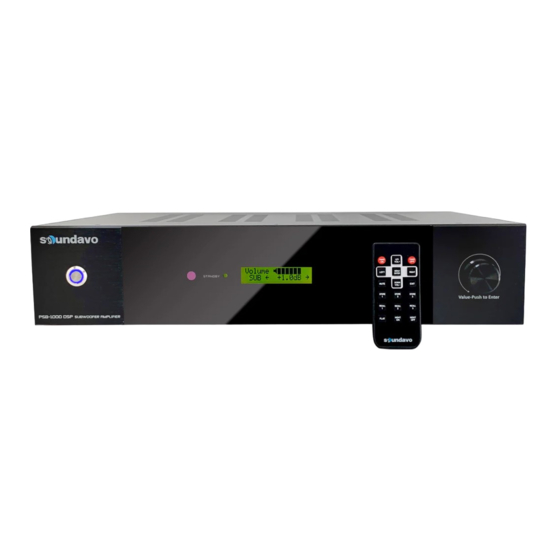

Soundavo PSB-1000 DSP Owner's Manual
  1. Manuals
  2. Brands
  3. Soundavo Manuals
  4. Amplifier
  5. PSB-1000 DSP
  6. Owner's manual

Soundavo PSB-1000 DSP Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SUBWOOFER
PSB-1000DSP
AMPLIFIER
OWNERS MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSB-1000 DSP and is the answer not in the manual?

Questions and answers

Related Manuals for Soundavo PSB-1000 DSP

Summary of Contents for Soundavo PSB-1000 DSP

  • Page 1 SUBWOOFER PSB-1000DSP AMPLIFIER OWNERS MANUAL...
  • Page 7 þ ÿ þ ÿ...
  • Page 8 þ ÿ þ ÿ þ ÿ þ ÿ...

  • Page 11: Dsp Navigation

    DSP NAVIGATION...

  • Page 12: About Dsp

    ABOUT DSP PSB-1000...
  • Page 13 PSB-1000 PSB-1000 PSB-1000 PSB-1000...
  • Page 14 LCD DISPLAY DETAIL INFORMATION...
  • Page 15 RS-232 CONTROL INTERFACE (DB9 Connector Protocol Pin out, TX, RX, GND) NOTE - TX and RX labelings are relative to controller TX -> 2 (Receiver Data) RX -> 3 (Transmitter Data) G -> 5 (Ground Signal) 1:MUTE/UNMUTE:[ Unmute ] :A5 A5 A5 00 A1 00 A4 00 00 01 00 04 AA 2:MUTE/UNMUTE:[ Mute ] :A5 A5 A5 00 A1 00 A4 00 00 01 01 05 AA 3:Channel Volume : [ -60.0 dB ] :A5 A5 A5 00 A1 00 A3 00 00 01 00 03 AA 4:Channel Volume : [ -55.0 dB ] :A5 A5 A5 00 A1 00 A3 00 00 01 0A 09 AA...
  • Page 16 35:Subsonic freq:[ 19.7Hz] :A5 A5 A5 00 A1 00 A5 00 00 01 00 05 AA 36:Subsonic freq:[ 20.3Hz] :A5 A5 A5 00 A1 00 A5 00 00 01 01 04 AA 37:Subsonic freq:[ 20.9Hz] :A5 A5 A5 00 A1 00 A5 00 00 01 02 07 AA 38:Subsonic freq:[ 21.5Hz] :A5 A5 A5 00 A1 00 A5 00 00 01 03 06 AA 39:Subsonic freq:[ 22.1Hz] :A5 A5 A5 00 A1 00 A5 00 00 01 04 01 AA 40:Subsonic freq:[ 22.7Hz] :A5 A5 A5 00 A1 00 A5 00 00 01 05 00 AA...
  • Page 17 91:Crossover freq:[ 46.8Hz] :A5 A5 A5 00 A1 00 A6 00 00 01 1E 18 AA 92:Crossover freq:[ 48.2Hz ] :A5 A5 A5 00 A1 00 A6 00 00 01 1F 19 AA 93:Crossover freq:[ 49.6Hz] :A5 A5 A5 00 A1 00 A6 00 00 01 20 26 AA 94:Crossover freq:[ 50.0Hz] :A5 A5 A5 00 A1 00 A6 00 00 01 21 27 AA 95:Crossover freq:[ 52.6Hz] :A5 A5 A5 00 A1 00 A6 00 00 01 22 24 AA 96:Crossover freq:[ 54.1Hz] :A5 A5 A5 00 A1 00 A6 00 00 01 23 25 AA...
  • Page 18 131:Crossover freq:[ 182Hz] :A5 A5 A5 00 A1 00 A6 00 00 01 4D 4B AA 132:Crossover freq:[ 187Hz] :A5 A5 A5 00 A1 00 A6 00 00 01 4E 48 AA 133:Crossover freq:[ 193Hz] :A5 A5 A5 00 A1 00 A6 00 00 01 4F 49 AA 134:Crossover freq:[ 198Hz ] :A5 A5 A5 00 A1 00 A6 00 00 01 50 56 AA 135:Crossover freq:[ 204Hz] :A5 A5 A5 00 A1 00 A6 00 00 01 51 57 AA 136:Crossover freq:[ 210Hz] :A5 A5 A5 00 A1 00 A6 00 00 01 52 54 AA...

  • Page 19: Troubleshooting

    TROUBLE SHOOTING...

  • Page 20: Remote Controller

    REMOTE CONTROLLER Volume Up/ Scroll Up Power ON Power OFF Scroll Left Scroll Right Menu/Enter Mute Exit Volume Down Scroll Down Memory Recall Memory 、 Night OFF Flat Night ON SPECIFICATION...
