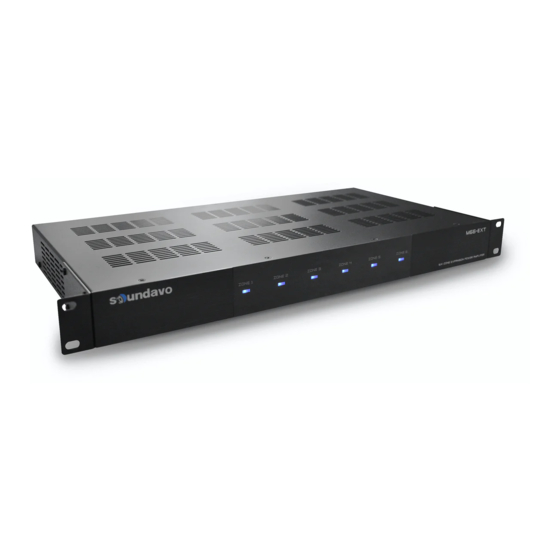

Six-zone expansion power amplifier
Hide thumbs

Advertisement

Quick Links

Download this manual
M66-EXT
Six-Zone Expansion
Power Amplifier
OWNERS MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the M66-EXT and is the answer not in the manual?

Questions and answers

Related Manuals for Soundavo M66-EXT

Summary of Contents for Soundavo M66-EXT

  • Page 1 M66-EXT Six-Zone Expansion Power Amplifier OWNERS MANUAL...

  • Page 3: Specification

    WS66i to expand other 6 zone speaker outputs. it provides up to 50W x 2 power by class D amplifier and distribute at most to 18 zones (with 1 x WS66i and 2 x M66-EXT), which all can be controlled by APP, or the optional keypads & IR remote controller.
  • Page 4 SWITCH KEYPAD CONNECTOR...
  • Page 5 (optional accessories) 1. Numeric LED Display: The digital LED display show the number of the source device, as well as the volume, treble, and bass level. 2. VOL. LED: When illuminated, this LED indicates that the Numeric LED is displaying the volume level. Use the Up and Down buttons to increase and decrease the volume level.
  • Page 6 (optional accessories)
  • Page 7 (Before you begin to install the M66-EXT) * The M66-EXT unit is not work as stand-alone, so it does not have audio input and volume controls, the main 6 audio sources will come from the WS66i master unit * Connect all the audio source devices to the WS66i MASTER unit to the Source Input 1 (RCA), 2 (RCA), 5 (Mini Jack TRS), 6 (Optical / Mini Jack TRS), and WiFi Streamer or USB stick to Source Input 3 &...
  • Page 8 1. Make sure each unit is correctly addressed: The WS66i unit set as “Master" (for Zone 1 ~ Zone 6) First M66-EXT unit set as "SLAVE 1” (for Zone 7 ~ Zone 12) Second M66-EXT unit set as “SLAVE 2" (for Zone 13 ~ Zone 14) 2.
  • Page 10 The M66-EXT can be controled via 6 POE enabled keypads (optional). This allows for source control from each specific zone as well as IR routing to the appropriate source devices once selected. The M66-EXT also comes with optional hub that allows for all 6-keypads to be connected to the amp via Cat5e/6.
  • Page 11 reserved for cascading units FRONT BACK...
  • Page 12 WS66i master unit, simply connect an IR emitter to the IR Emitter output jack (either one) from the M66-EXT, and then connect the flasher from the IR emiiter cable to the IR receiver window on source 2 (CD Player) The user will be able to control the CD Player to power the device on/o , change settings etc….
