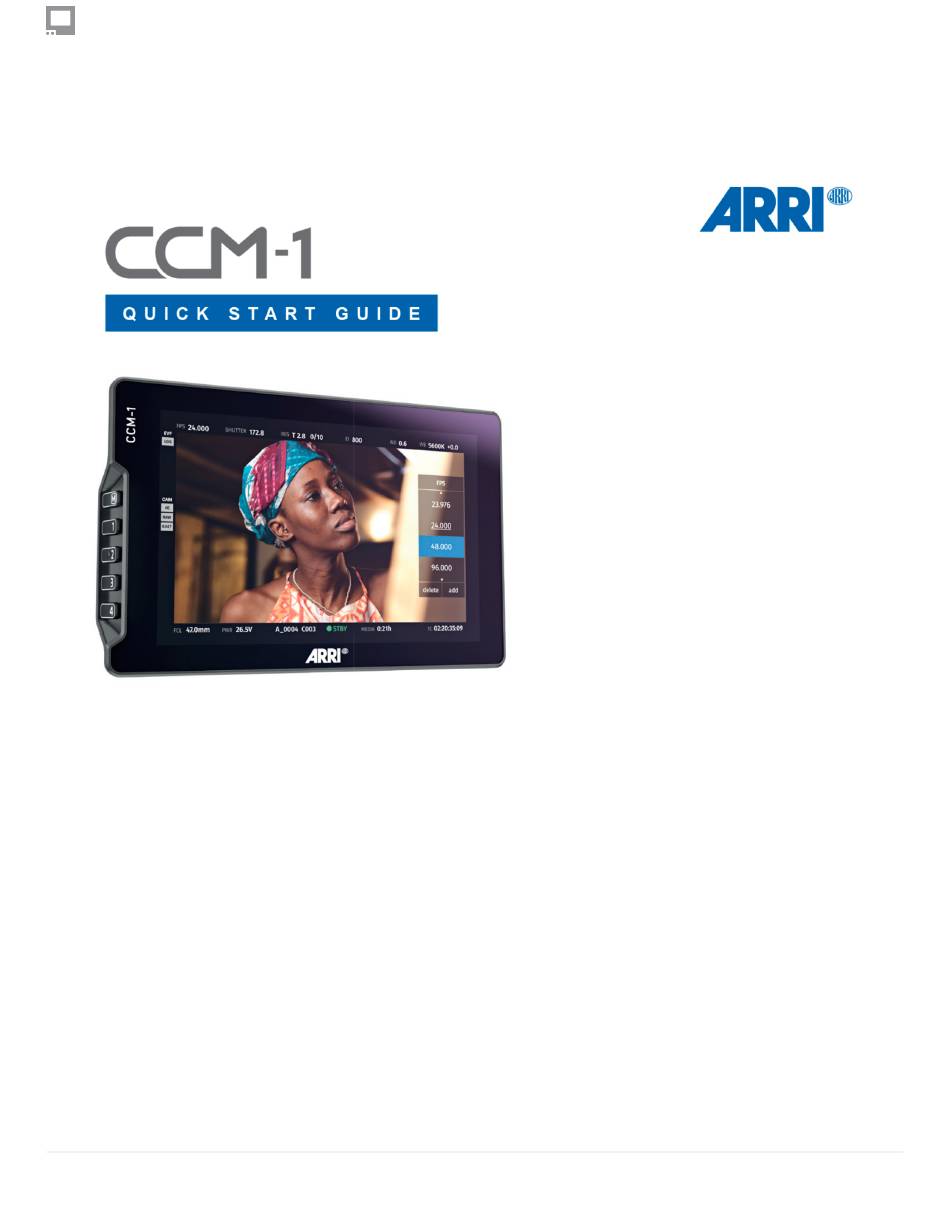

- Page 1 SmallHD User Manual CCM-1 Quick Start Guide CCM-1 Quick Start Guide Page 1...
-
Page 2: Table Of Contents
SmallHD User Manual TABLE OF CONTENTS PHYSICAL PROPERTIES ..........................3 POWER AND CONNECT ..........................4 ARRI FOLDABLE SUNHOOD ........................4 ARRI MONITOR ARM FOR CAMERA MAC-1 ..................... 5 ARRI CAMERA CONTROL ........................... 6 PAGEOS 4 OVERVIEW ..........................10 • General Layout ............................ -
Page 3: Physical Properties

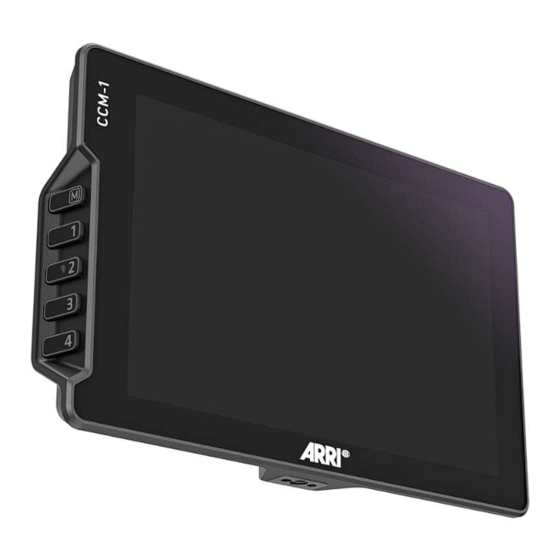

SmallHD User Manual PHYSICAL PROPERTIES A: VF F: Headphone K: User buttons CCM-1 Quick Start Guide Page 3... -
Page 4: Power And Connect
• Video signals via 3G-SDI up to 1080p60 MOUNTING OPTIONS ¼"-20 MOUNTING POINTS There are 4x ARRI Pin-Lock ¼" mechanical interfaces to secure the monitor to a camera or rig (bottom, rear, right side, top). ARRI FOLDABLE SUNHOOD This foldable sunhood for the Camera Control Monitor CCM-1 can be mounted to the CCM-1 without any tools, as the side flaps and the top flap hold together magnetically. -
Page 5: Arri Monitor Arm For Camera Mac-1
SmallHD User Manual ARRI MONITOR ARM FOR CAMERA MAC-1 The 2-axis MAC-1 monitor arm allows for rapid positioning of the CCM-1 without affecting the horizon relative to the camera. The MAC-1 features an adjustable friction system for one-handed repositioning and inserts for different mounting standards (1/4" ARRI Pin-Lock and SmallHD Pins). -
Page 6: Arri Camera Control
A live image with interactive status components allows quick access to the most frequently adjusted settings. Changes occur in real-time and can be viewed live instead of changing between a menu and the image. CCM-1 Quick Start Guide Page 6... - Page 7 SmallHD User Manual HOME SCREEN The familiar HOME screen has been updated for the larger CCM-1 display and shows all relevant camera information at a glance. Touching one of the five main exposure parameters will take users to a live image where they can make adjustments with a real-time preview. On the left, an overview of the user button assignments is shown.
- Page 8 SmallHD User Manual CLASSIC MENU The CCM-1 offers access to the complete camera menu for access to all camera settings. The menu[1] can be controlled with touch or physical keys and offers the same intuitive layout as the MVF-2. CCM-1 Quick Start Guide...
- Page 9 SmallHD User Manual PLAYBACK CONTROL Improved playback control is accessed via the menu or a user button. An extended clip list can be viewed during playback and includes a handy metadata display. CCM-1 Quick Start Guide Page 9...
-
Page 10: Pageos 4 Overview
The PageOS 5 interface allows users to configure and assign specific image-analyzing tools and/ or features to up to eight customizable pages. Users can access those tools by navigating to the corresponding page on the monitor, instead of enabling or disabling features individually. CCM-1 Quick Start Guide Page 10... -
Page 11: General Layout
The Monitor Settings page will allow you to adjust a wide range of global monitor settings. Dashboard The Dashboard provides access to the most commonly-used settings such as Input, Volume, and Backlight. The Dashboard can be disabled via Full Settings > Dashboard. CCM-1 Quick Start Guide Page 11... -
Page 12: Basic Navigation
Use the joystick to navigate the Pages menu: • LEFT or RIGHT -- to change Pages • DOWN -- Enter Page View mode • UP -- Zoom or Exit Page View mode • Button press or depress selects highlighted items CCM-1 Quick Start Guide Page 12... - Page 13 Pages Add a Page To create a new page from either a fresh workspace, a premade template, or a specific utility, navigate CCM-1 Quick Start Guide Page 13...
- Page 14 This will take you to a submenu that will show your adjustment options for that specific tool. CCM-1 Quick Start Guide Page 14...
-
Page 15: Feed
HDR and SDR from incoming log-based sources. Settings: Display Backlight Select a backlight level that suits your viewing environment to maximize contrast and viewability. Calibration Calibration ensures chrominance and luminance accuracy that can be relied upon for critical color decisions. CCM-1 Quick Start Guide Page 15... -
Page 16: Controls
Adjust the audio output level for the headphone jack and/or monitor speaker. Image Rotate Image Rotate options enable upside-down mounting - or enable Mirroring for when the monitor must face the subject. Interlace These options control how interlaced footage is displayed. CCM-1 Quick Start Guide Page 16... -
Page 17: Capture
Image Capture Configure the Image Capture tool to help facilitate shot matching or for automatic thumbnail creation upon pressing Record. Image Gallery Browse the Image Gallery to review the images on your removable media. CCM-1 Quick Start Guide Page 17... -
Page 18: Interface
UI Lock Once enabled, pressing and holding on the touchscreen for five seconds will lock the UI. Repeating the process will unlock the UI. Language Change the language of the internal menu system. CCM-1 Quick Start Guide Page 18... -
Page 19: User
Setting the correct Date & Time will ensure that captured images get an accurate timestamp. Power Power-related options such as auto recovery. Profiles Save or load the entire monitor’s configuration to an SD card, great for keeping consistent settings across several monitors. CCM-1 Quick Start Guide Page 19... -
Page 20: System
Firmware can be updated by inserting an SD card with a compatible update file. Factory Reset Reset the monitor settings to its original factory settings, with the option to clear registration and calibration. LINKS AND FCC RULES/REGULATIONS CCM-1 Quick Start Guide Page 20...
