Assembly Instructions

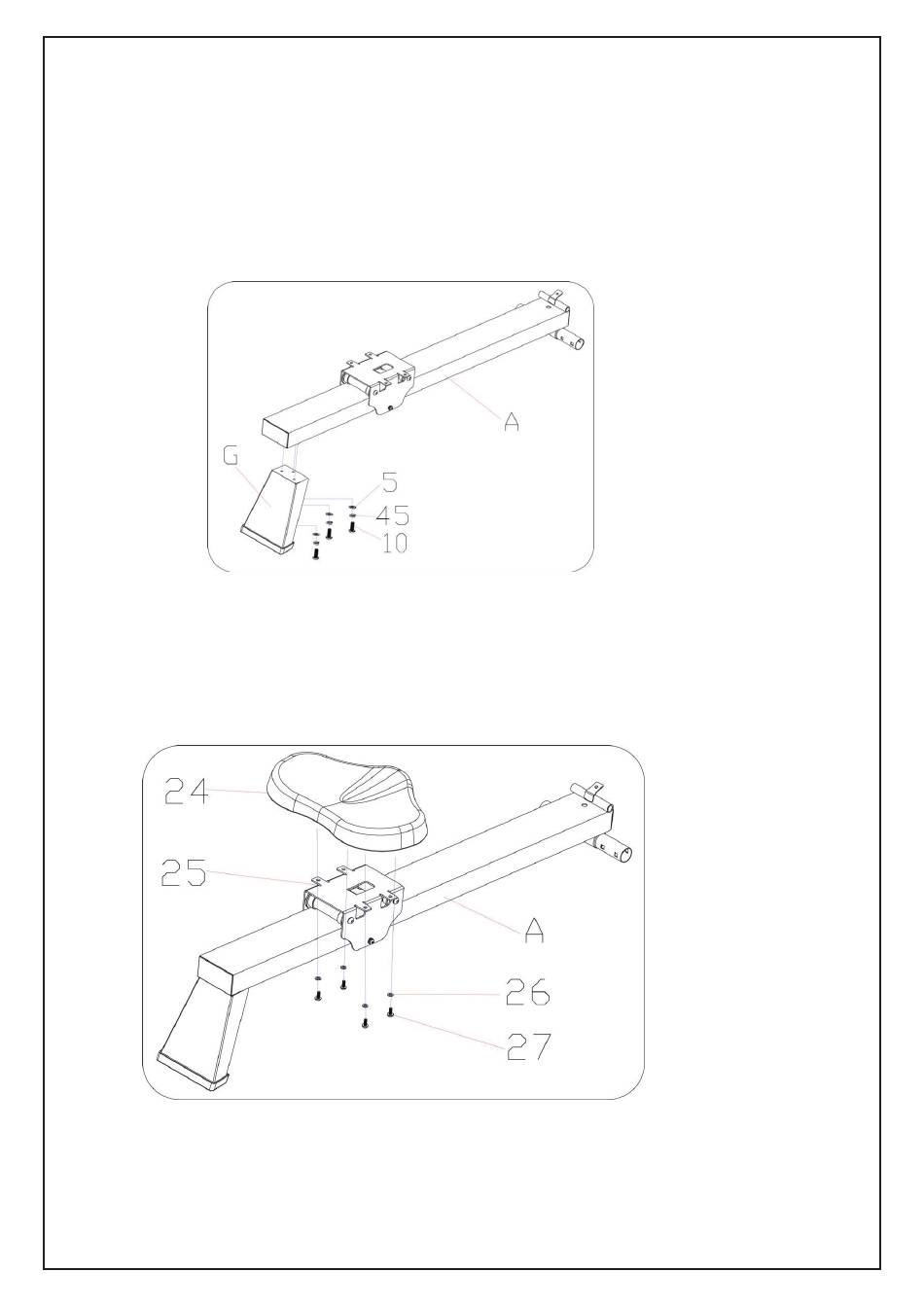

Step 1:
Mount the Rear Stabilizer G on the Main Frame A by using Allen bolt (10),
Standard spring washer(45) and Flat washer(5).
Step 2:
Use Allen bolt (27), Flat washer(26) to fix the Seat Cushion(24) to Slide base
(25) and lock them.
-7-
