Manual IB-DK2246AC
b. Now attach the assembled unit directly to the VESA mount of a supported monitor
(75x75 or 100x100) using the four M4x12 mm screws provided.

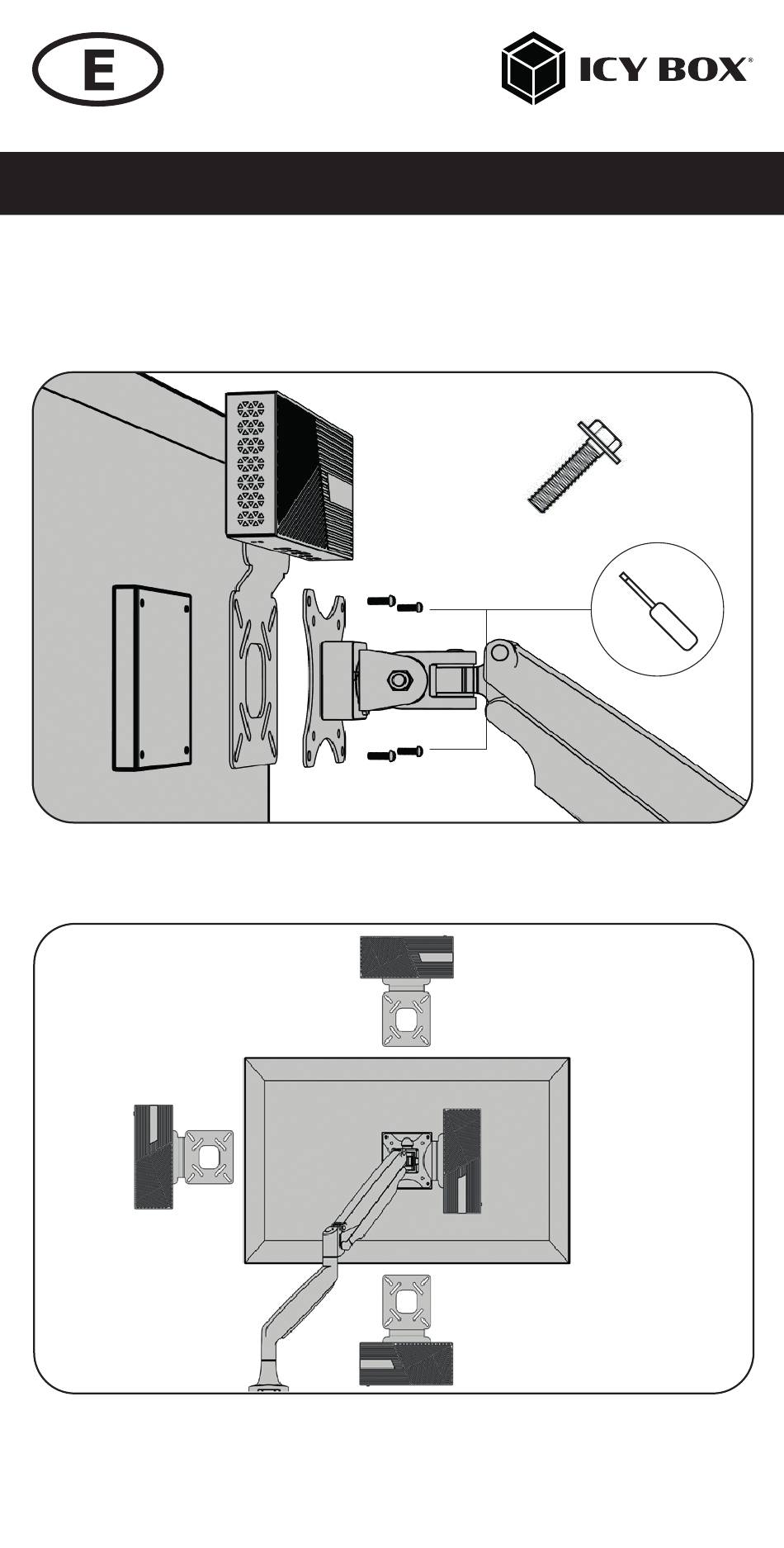

c. If you are using a monitor arm, position the unit between the VESA mount of the
B
4x
monitor and the VESA mount of the monitor arm as shown below and secure it using
the four M4x12 mm screws provided.
Choose the orientation according to your needs: up, down or to the side.
