Manual IB-DK2108M-C USB Type-C notebook DockingStation with integrated ® M.2 NVMe slot Handbuch IB-DK2108M-C USB Type-C Notebook DockingStation mit integriertem ® M.2 NVMe Einschub...
Page 2
Sicherheitshinweise IB-DK2108M-C Handbuch IB-DK2108M-C Zur Vermeidung körperlicher Schäden, sowie von Sach-, Geräteschäden und Datenverlust beachten Sie bitte folgende Hinweise: Warnstufen Signalwort und Sicherheitszeichen kennzeichnen die Warnstufe und geben einen sofortigen Hinweis auf Wahrscheinlichkeit, Art und Schwere der Folgen, wenn die Maßnahmen zur Vermeidung der Gefahr nicht befolgt werden.
Page 3
Sicherheitshinweise IB-DK2108M-C Handbuch IB-DK2108M-C • externe Erwärmung vermeiden und Luftaustausch zulassen • Lüfter-Auslass und passive Kühlkörper freihalten • direkte Sonneneinstrahlung auf Gerät/Netzteil vermeiden • ausreichend Umgebungsluft für Gerät/Netzteil sicherstellen • keine Gegenstände auf dem Gerät/Netzteil abstellen 4. Gefahren durch Kleinstteile und Verpackung...
Page 4
Safety information IB-DK2108M-C Handbuch IB-DK2108M-C Please read carefully the following information to prevent injuries, da- mage to material and device as well as data loss: Warning levels Signal words and safety codes indicate the warning level and provide immediate information in terms of the probability of occurrence as well as the type and severity of the consequences if the measures to prevent hazards are not complied with.
Page 5
Safety information IB-DK2108M-C Handbuch IB-DK2108M-C • Do not cover the fan outlet and passive cooling elements • Avoid direct sunlight on the device/power unit • Guarantee sufficient ambient air for the device/power unit • Do not place objects on the device/power unit 4.
Page 6

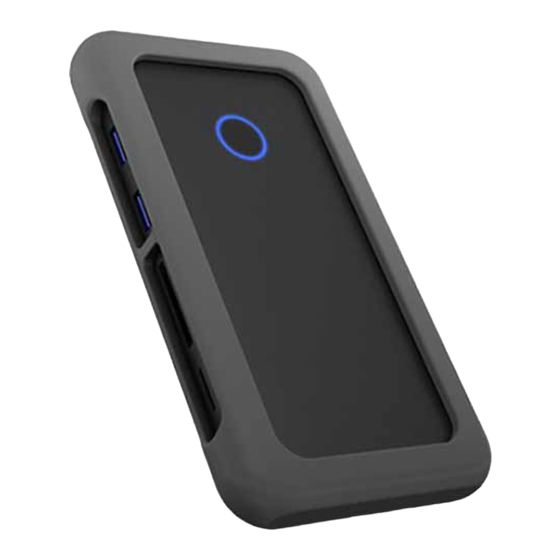

Manual IB-DK2108M-C Package content 1x IB-DK2108M-C, 1x USB Type-C to Type-C cable (E-mark), 1x M.2 silicone ® ® pad, 1x screw for M.2, 1x screw driver, 1x rubber protection sleeve, 1x manual Product overview 1x USB 2.0 Type-A data interface...
Page 7
USB Type-C™ interface support the DisplayPort™ Alt Mode. Please check the specifications of your computer system as Computer well as its USB Type-C™ interface or use the ICY BOX product with a manual Thunderbolt™ 3 connector.
Page 8
Manual IB-DK2108M-C To use this dock to its full potential, ensure that the host USB Type-C port from ® your computer supports DisplayPort Alt Mode, as well as Power Delivery or ™ Thunderbolt ™ Note! The additional USB Type-C port on the DockingStation supports only Power ®...
Note: In order to power and charge your connected notebook, its USB Type-C ® port must support USB Power Delivery or Thunderbolt ™ Important: 1. When the IB-DK2108M-C is connected via the USB Type-C interface of a ® Chromebook , a mouse connected via USB Type-A is not recognised immediately, ™...
Page 10
Manual IB-DK2108M-C Installation of an M.2 NVMe SSD (optional) M.2 NVMe SSD not included 1. Unscrew the two screws of the M.2 NVMe SSD cover at the bottom as shown below and take off the cover. 2. Insert the M.2 NVMe SSD carefully with the connection side first into the M.2 socket at an angle of about 30°...
Page 11
Manual IB-DK2108M-C 3. Push the SSD down and fix the M.2 NVMe SSD with the delivered M.2 spacer and screw as displayed. 4. Prepare the delivered thermal pad and remove the transparent protection foil at one side. 5. Place the thermal pad (side without foil downwards) directly onto the M.2 NVMe...
Page 12
Advice for an installed M.2 NVMe drive (optional) M.2 NVMe SSD not inluded The IB-DK2108M-C with installed M.2 NVMe drive inside can be connected to or disconnected from the computer via USB cable without shutting down the computer. A new drive must first be initialized, partitioned and formatted by the operating system in order to be displayed by the system.
Page 13
Handbuch IB-DK2108M-C Verpackungsinhalt IB-DK2108M-C, 1x USB Type-C zu Type-C Kabel (E-mark), 1x M.2 Silikonpad, ® ® 1x Schraube für M.2 Befestigung, 1x Schraubendreher, 1x Gummischutzhülle, 1x Handbuch Produktübersicht 1x USB 2.0 Type-A Datenschnittstelle USB Type-C Schnittstelle zum Hostcomputer ® 2x USB 3.1 (Gen 2) Type-A Datenschnittstelle SD 3.0 Kartenleser mit bis zu 100 MB/s...
Page 14
Handbuch IB-DK2108M-C USB Type-C Notebook DockingStation ® Die USB Type-C DockingStation von ICY BOX in elegantem Design und mit ® Power Delivery Technologie ist für den Anschluss an einen Computer (z.B. Laptop, Notebook, etc.) mit Type-C Schnittstelle und DisplayPort Alt Mode Unterstützung ®...
Schnittstelle unterstützen auch den DisplayPort™ Alt Mode. Bitte überprüfen Sie die Spezifikationen Ihres Computersystems Computer und dessen USB Type-C™ Schnittstelle oder nutzen Sie das ICY BOX manual Produkt an einem Thunderbolt™ 3 Anschluss. Um das volle Potential der IB-DK2108M-C ausschöpfen zu können, vergewissern...
Page 16
USB Type-C Schnittstelle USB Power Delivery oder Thunderbolt 3 unterstützen. ® ™ Wichtig: Wird die IB-DK2108M-C über die USB Type-C Schnittstelle eines Chro- ® mebooks angeschlossen, so wird eine per USB Type-A angeschlossene ™ Maus nicht sofort erkannt, sondern die Verbindung mit einigen Sekunden Verzögerung hergestellt.
Page 17
Handbuch IB-DK2108M-C Sie die Power Delivery Stromversorgung NICHT, während Datenübertra- gungen stattfinden. Installation einer M.2 NVMe SSD (optional) M.2 NVMe SSD nicht enthalten 1. Lösen Sie die beiden Schrauben der M.2 NVMe SSD Abdeckung an der Unter- seite des Gerätes und entfernen Sie die Abdeckung.
Page 18
Manual IB-DK2108M-C 3. Drücken Sie die M.2 NVMe SSD dann vorsichtig nach unten und fixieren Sie diese mittels des gelieferten Abstandshalters und der M.2 Befestigungsschraube. 4. Bereiten Sie das mitgelieferte Wärmeleitpad vor und entfernen Sie die durchsichitige Schutzfolie auf einer Seite.
Page 19
Hinweis für ein installiertes M.2 NVMe Laufwerk (optional) M.2 NVMe SSD nicht enthalten Die IB-DK2108M-C mit der verbauten M.2 NVMe SSD kann im laufenden Betrieb des Rechners an diesen via USB Kabel angeschlossen oder von diesem getrennt werden. Eine neue SSD muss vom Betriebssystem erst initialisiert, partitioniert und formatiert werden, um vom System angezeigt zu werden.
