Westomatic Primo Compact Technical Bulletin

Calibration of grinder blades
Hide thumbs Also See for Primo Compact:

Advertisement

Table of Contents

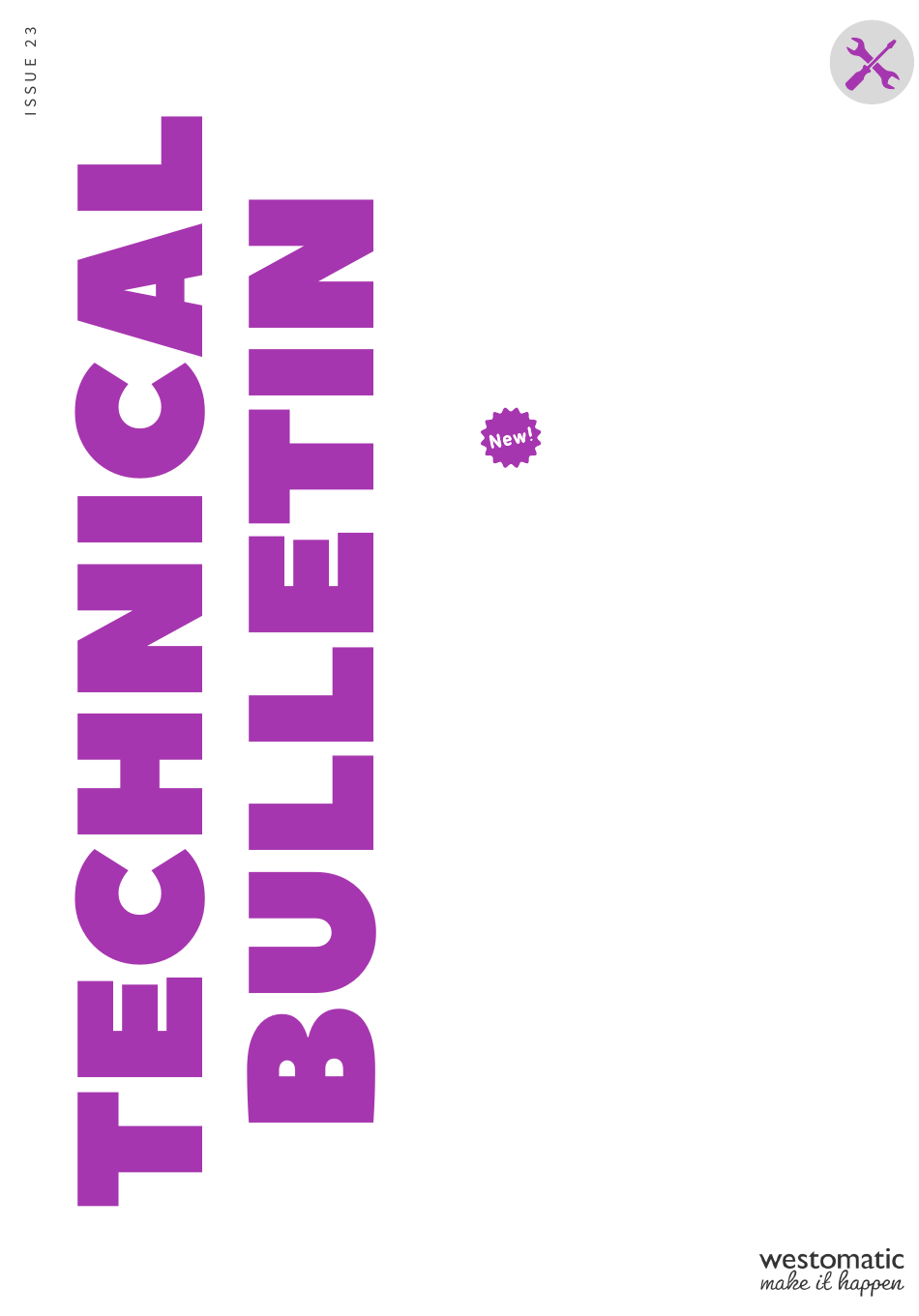

Calibration
of Grinder
Blades
For all Primo
Compact and
Primo X machines
M A Y , 2 0 2 3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Primo Compact and is the answer not in the manual?

Questions and answers

Related Manuals for Westomatic Primo Compact

Summary of Contents for Westomatic Primo Compact

  • Page 1 Calibration of Grinder Blades For all Primo Compact and Primo X machines M A Y , 2 0 2 3...
  • Page 2 GRINDER BLADE CALIBRATION FOR PRIMO COMPACT & X If the machine has 2 grinders these must both be calibrated using the correct beans for each grinder. Run test grinds to check consistency of the coffee. Too fine and it will cause the drink to run too slowly, too coarse and it will run too fast and will be too weak.
  • Page 3 Making the manual adjustments: Ensure this is done ONLY WHILST THE BLADES ARE GRINDING. If the grind is too coarse - adjust pin CLOCKWISE - to move the blades closer together. If the grins is too fine - adjust pin ANTI- CLOCKWISE - to move the blades further apart.
  • Page 4 Enter SERVICE MENU - (using code 22222) Scroll down to the INGREDIENTS/INGREDIENTS MANAGEMENT menu.
  • Page 5 Enter the CALIBRATION/CALIBRATION INGREDIENTS menu. Take a reference grind and weight the coffee. Repeat 3 times and divide by 3 (to get an average weight).
  • Page 6 Enter the average figure as the amount dispensed. Be sure to enter "save/ok" at the bottom right of the screen. Return to home screen. Take a test vend from the each selection.

This manual is also suitable for:

Primo x
