INSTALLATION GUIDE

Advertisement

loading
Need help?

Need help?

Do you have a question about the Primo Compact and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Westomatic Primo Compact

Summary of Contents for Westomatic Primo Compact

  • Page 1 INSTALLATION GUIDE...

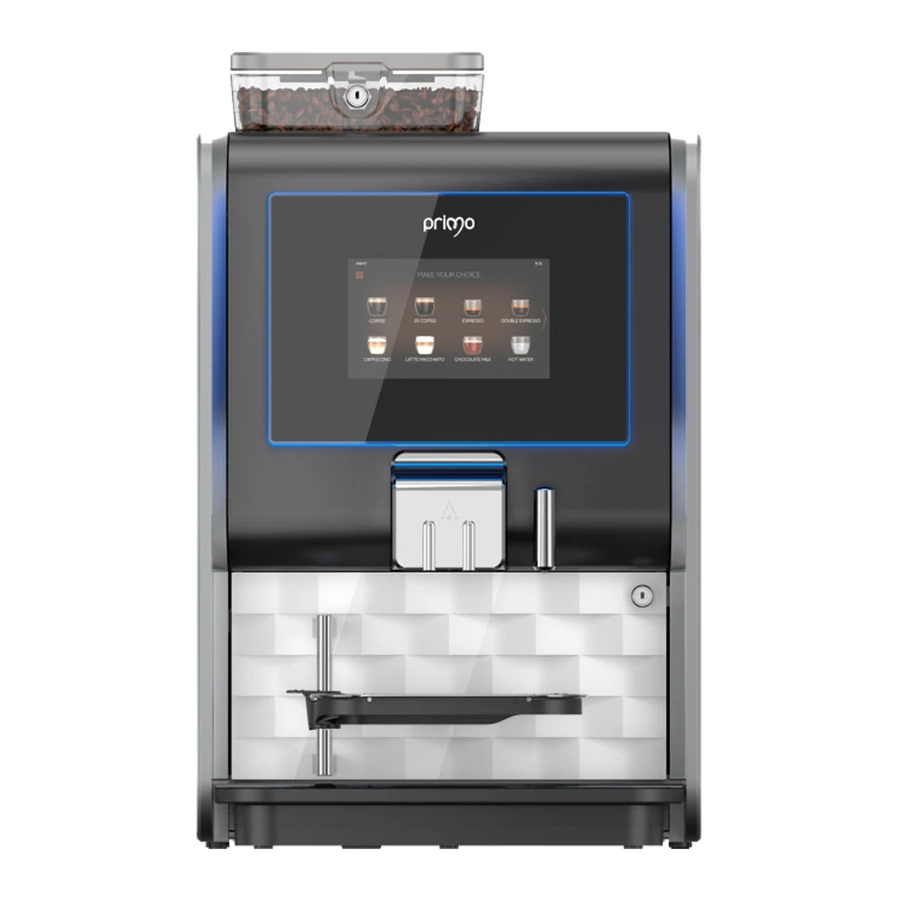

  • Page 2 TECHNICAL INFORMATION The Primo Compact is designed to process whole coffee beans, powder that is suitable for automatic machines and fresh milk where a milk system is fitted: External Dimensions: W300xD515xH600mm Capacity Bean Hopper: 1x1200gr or 2x600gr Capacity Instant Canisters: 1x2.3L or 2x1.6L...

  • Page 3: Power Cable

    Keys Safety Instructions NB: The machine will have been set up to your specifications and tested at Westomatic HQ prior to install. All parts have been assembled on the machine. The QR code inside the machine gives access to the We:Support pages with technical information.
  • Page 4 Important: Westomatic strongly recommend using a water filter to prevent scale build up in the parts - if this happens the warranty becomes void. Ensure genuine Westomatic water hoses are used, fitted with a water cut-off Ensure the power supply has a capacity of at least 2.5W.

  • Page 5: Ensure The

    Ensure the Connect water protective filter to main plastic is water - set filter removed from to hardness of the spalsh back local area Once in place - Place grill into Level the machine drip tray Min Clearances: Rear: 50mm Above:180mm Connect water Slide drip tray...
  • Page 6 Place the cup tray Connect Primo grill onto tray and to an earthed firmly push down power socket to clip into place Westomatic will Switch the Primo have taken your Compact on - set up switch located specifications and below instant...
  • Page 7 INSTALL WASTE TO BASE DRAIN There is the option to have plumbed drainage from the drip tray to waste water drain: Required Items: The Primo Drain Hose WVS A screw driver Combination Pliers NB: The machine must be situation within close proximity of a waste water drain - and there needs to be height differential to ensure the water...
  • Page 8 Remove the drip open the drain tray from the hose outlet on machine the back pf the Primo Compact Use the Connect the screwdriver to drain hose... punch the perforated hole at back of drip tray Using the to the drio tray...
  • Page 9 Feed the drain hose to the waste water outlet Refit the drip tray and check for any leaks - tighten connections if necessary Machine is ready to use...
  • Page 10 INSTALL MILK FRIDGE The milk fridge is designed to work in combination with the Primo Compact: External Dimensions Fridge: W230xD420xH455mm External Dimensions Total: W530xD515xH600mm Capacity Milk Fridge: 4litres/8pints fresh milk Noise Emission: <70dB Weight: 19kg (Total: 57kg)
  • Page 11 OPTIONAL: Ingredient Box PN: 1057339 NB: The machine will have been set up to your specifications and tested at Westomatic HQ prior to install. All parts have been assembled on the machine. The QR code inside the machine gives access to the We:Support pages with technical information.

  • Page 12: The Top

    Place the Fridge Connect milk on a level surface hose to milk Min Clearances: output - feed Rear: 50mm hose through into fridge Ensure the Clean milk fridge, protective place hose in plastic is milk container, removed from place in machine the top and close door Move fridge...
  • Page 13 Connect fridge to a 230V mains power socket - ensure supply has minimum 45W Switch the Fridge on using button on the front Machine is ready to use...
  • Page 14 INSTALL CUP WARMER The cup warmer is designed for pre-heating coffee cups and glasses used with the Primo Compact: External Dimensions Cup Warmer: W230xD420xH455mm External Dimensions Total: W530xD515xH600mm Noise Emission: <70dB Weight: 11kg (Total: 49kg)

  • Page 15: Table Of Contents

    Contents: Plug the cup Cup Warmer warmer into Power cable the mains 230V Instructions Plug socket Ensure the Switch on and fill protective with cups plastic is (upside down) removed from Takes approx 60 the top mins to reach temperature Place unit next to the Primo Compact - on a...
  • Page 16 CONTACT + 4 4 ( 0 ) 1 6 2 6 3 2 3 1 0 0 W e s t o m a t i c V e n d i n g S e r v i c e s L t d , s a l e s @ w e s t o m a t i c .
