Westomatic primo MINI Installation Manual
Hide thumbs
Also See for primo MINI:
- Manual (35 pages) ,
- Quick start manual (7 pages) ,
- Quick start manual (5 pages)
Advertisement
Quick Links
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Westomatic primo MINI
Summary of Contents for Westomatic primo MINI
- Page 1 INSTALLATION GUIDE...

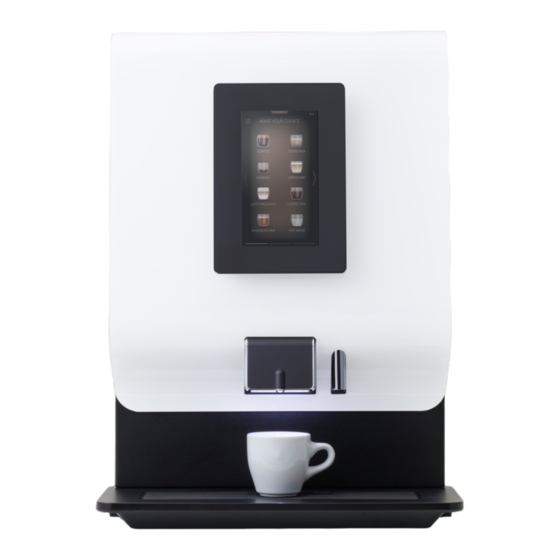

- Page 2 TECHNICAL INFORMATION - MINI The Primo Mini is a slimline Instant Machine. The machine has 3 canisters, is capable of 24 different drink choices, and produce a drink every 10 seconds: External Dimensions: W409xD569xH520mm Capacity Instant Canisters: 1x2.3L and 2x1.2L Noise Emission: <70dB...
- Page 3 TECHNICAL INFORMATION - MIDI The Primo Midi is an Instant Machine capable of 24 different drink choices, and with 4 canisters provides a great variety. The Midi can produce a drink every 10 seconds: External Dimensions: W409xD520xH569mm Capacity Instant Canisters: 4x1.2L Noise Emission: <70dB Weight: 23kg...
- Page 4 Safety Instructions Welcome Booklet NB: The machine will have been set up to your specifications and tested at Westomatic HQ prior to install. All parts have been assembled on the machine. The QR code inside the machine gives access to the We:Support pages with technical information.
- Page 5 Important: Westomatic strongly recommend using a water filter to prevent scale build up in the parts - if this happens the warranty on the machine becomes void. Ensure genuine Westomatic water hoses are used, fitted with a water cut-off Ensure the power supply has a capacity of at least 2.5W.
- Page 6 Ensure the Connect water protective foil is filter to main removed from water - set filter the touchscreen. to hardness of local area Once in place - Place grill into Level the machine drip tray Min Clearances: Rear: 50mm Above:250mm Left: 100mm Connect water Slide drip tray...
- Page 7 Place the cup tray Mini/Midi on - grill onto tray and switch located firmly push down below instant to clip into place canisters. Westomatic will Close the lid, have taken your and the door. set up Lock the door. specifications and attached labels...
- Page 8 INSTALL WASTE TO BASE DRAIN There is the option to have plumbed drainage from the drip tray to waste water drain: Required Items: The Primo Drain Hose WVS PN: 1057278 (Midi) A screw driver Combination Pliers NB: The machine must be situation within close proximity of a waste water drain - and there needs to be height...
- Page 9 Remove the drip Route the hose tray from the to the rear under machine the machine. Drill a 6mm hole Place and fix in drip tray the drain hose connector. in the waste water drain. Connect the Replace drip drain hose to tray at the front the drip tray of the machine.
- Page 10 INSTALL CUP WARMER The cup warmer is designed for pre-heating coffee cups and glasses used with the Primo Mini/Midi: External Dimensions Cup Warmer: W230xD420xH455mm External Dimensions Total: W530xD515xH600mm Noise Emission: <70dB Weight: 11kg (Total: 49kg)
- Page 11 Contents: Plug the cup Cup Warmer warmer into Power cable the mains 230V Instructions Plug socket Ensure the Switch on and fill protective with cups plastic is (upside down) removed from Takes approx 60 the top mins to reach temperature Place unit next to the Primo Mini/Midi - on a...
- Page 12 CONTACT + 4 4 ( 0 ) 1 6 2 6 3 2 3 1 0 0 W e s t o m a t i c V e n d i n g S e r v i c e s L t d , s a l e s @ w e s t o m a t i c .
