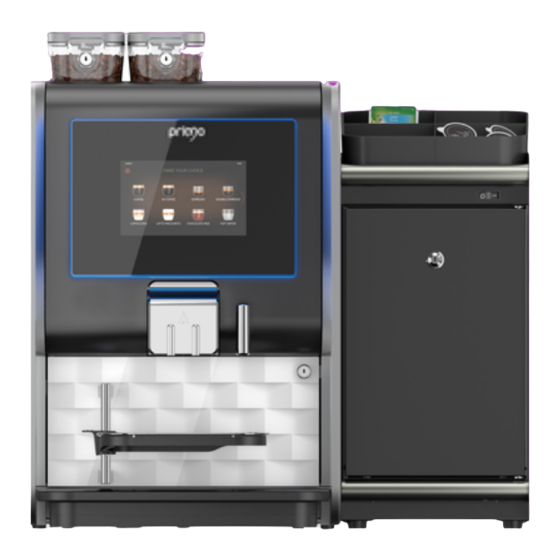

Westomatic primo COMPACT Maintenance Manual
  1. Manuals
  2. Brands
  3. Westomatic Manuals
  4. Coffee Maker
  5. Primo Compact
  6. Maintenance manual

Westomatic primo COMPACT Maintenance Manual

Hide thumbs Also See for primo COMPACT:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
COMPACT
COMPACT
FRESH MILK
MAINTENANCE
YEARLY

Advertisement

loading
Need help?

Need help?

Do you have a question about the primo COMPACT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Westomatic primo COMPACT

Summary of Contents for Westomatic primo COMPACT

  • Page 1 COMPACT COMPACT FRESH MILK MAINTENANCE YEARLY...
  • Page 2 FRESH MILK MAINTENANCE KIT It is recommended that you complete a yearly maintenance programme on your Fresh milk system using the Primo Compact Fresh Milk Maintenance & service kit. PARTS NEEDED: Milk Service Kit PN: 1057265 Pointed Nose Pliers Crosshead Screwdriver No.
  • Page 3 Switch off and Take off the old UNPLUG the duckbill & replace. Primo Compact Screw pillar back from the mains into machine & power. replace cooler. Pull the cooler Take off the away from the hose from the machine and left/inner side &...
  • Page 4 Take off the milk Remove the air tube. vent using no. 8 socket (anti- clockwise) Unlock steam Remove the metal hose by pushing socket + duckbill upper ring of the from the white fitting on top. milk adaptor using no. 10 wrench Take out steam Take off the hose, and remove...
  • Page 5 Take off the 2 old Fit the 2 new gaskets. gaskets included in the kit on the inlet/outlet of the milk pump. Inspect and clean Fit the cleaned the milk pump milk adaptor to canals with the the chassis and brushes provided replace screws.
  • Page 6 Replace the air Fit to the new vent using the tube to both socket wrench. sides of milk adaptor. Fit the new Replace the Venturi to the mixer bowl and milk adaptor. the outlet to Replace steam the bracket. hose on top. Fit the new silicon Restart the tube and outlet.
  • Page 7 Go to 2.06 - service management. Reset Service Moment Milk system. Clean milk system with Milk Line cleaner. Test the milk foam quality by dispensing a cappucino.
  • Page 8 CONTACT + 4 4 ( 0 ) 1 6 2 6 3 2 3 1 0 0 W e s t o m a t i c V e n d i n g S e r v i c e s L t d , s a l e s @ w e s t o m a t i c .
