RG-WALL 1600-Z3200-S
Cloud-Managed Firewall
Hardware Installation and Reference Guide
Document Version: V1.1
Date: 2023-07-26
Copyright © 2023 Ruijie Networks

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RG-WALL 1600-Z3200-S and is the answer not in the manual?

Questions and answers

Summary of Contents for Ruijie RG-WALL 1600-Z3200-S

  • Page 1 RG-WALL 1600-Z3200-S Cloud-Managed Firewall Hardware Installation and Reference Guide Document Version: V1.1 Date: 2023-07-26 Copyright © 2023 Ruijie Networks...
  • Page 2 All rights are reserved in this document and this statement. Any reproduction, excerption, backup, modification, transmission, translation or commercial use of this document or any portion of this document, in any form or by any means, without the prior written consent of Ruijie Networks is prohibited.
  • Page 3: Preface

    Preface Intended Audience This document is intended for:  Network engineers  Technical support and servicing engineers  Network administrators Technical Support  Ruijie Networks website: https://www.ruijienetworks.com/  Technical support website: https://ruijienetworks.com/support  Case portal: https://caseportal.ruijienetworks.com  Community: https://community.ruijienetworks.com ...
  • Page 4 Warning An alert that calls attention to important rules and information that if not understood or followed can result in data loss or equipment damage. Caution An alert that calls attention to essential information that if not understood or followed can result in function failure or performance degradation.
  • Page 5: Table Of Contents

    Contents Preface ..............................I 1 Overview ............................1 1.1 Introduction ..........................1 1.2 Package Contents........................1 1.3 Product Appearance ........................2 1.3.1 Front Panel ........................2 1.3.2 Rear Panel ........................3 1.4 Hard Disk ........................... 4 1.5 Specifications ..........................5 2 Preparing for Installation ........................
  • Page 6 2.2.7 Lightning Protection Requirements ................11 2.2.8 Installation Site Requirements ..................11 2.3 Tools ............................11 2.4 Unpacking the Device ......................12 3 Installing the Device ......................... 13 3.1 Installation Procedure ......................13 3.2 Preparing for Installation ......................13 3.3 (Optional) Installing the Hard Disk ................... 14 3.4 Installing the Device at the Specific Position ................
  • Page 7 5.1.2 Solution ........................20 5.2 Serial Console Has No Output ....................20 5.2.1 Symptom ........................20 5.2.2 Solution ........................20 5.3 Optical Port Fails ........................20 5.3.1 Symptom ........................20 5.3.2 Solution ........................20...
  • Page 8: Overview

    Overview Introduction The RG-WALL 1600-Z3200-S firewall (Z3200-S firewall or Z3200-S for short) is a next-generation Z series firewall of Ruijie Networks for all industries. It continuously improves the security detection capabilities of firewalls through cloud-network linkage. The Z3200-S firewall offers a quick intelligent deployment solution, simplifying deployment and reducing technical difficulty.
  • Page 9: Product Appearance

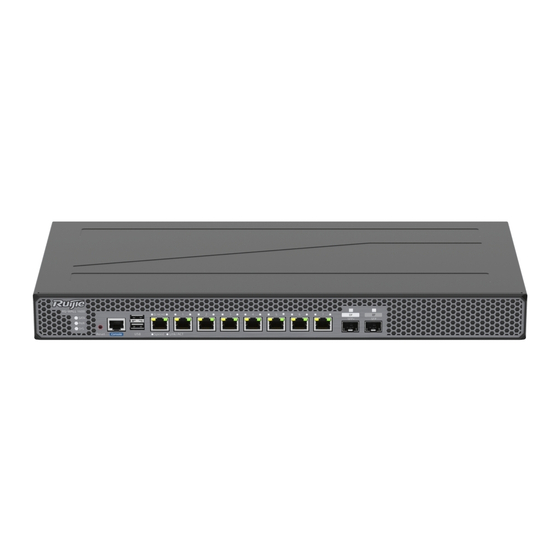

    Hardware Installation and Reference Guide Overview Product Appearance 1.3.1 Front Panel Figure 1-1 Front Panel Table 1-2 Components on the Front Panel Component Description Steady green: A hard disk is connected. SATA hard disk indicator Blinking green: Data is being read or written. Steady green: The power supply is normal.
  • Page 10: Rear Panel

    Hardware Installation and Reference Guide Overview Component Description Steady green: The port is connected. Optical port 0F indicator Blinking green: The port is receiving or sending data. Off: The optical port is incorrectly connected. Steady green: The port is connected. Optical port 8F indicator Blinking green: The port is receiving or sending data.
  • Page 11: Hard Disk

    RG-NSEC-HDD-1T Appearance Table 1-4 Hard Disk Specifications Model RG-NSEC-HDD-1T Firewall Model RG-WALL 1600-Z3200-S Dimensions (H x W x D) 27 mm x 130 mm x 102 mm (1.06 in. x 5.12 in. x 4.02 in.) Type Hard disk drive Capacity...
  • Page 12: Specifications

    Hardware Installation and Reference Guide Overview Specifications Table 1-5 Specifications Model RG-WALL 1600-Z3200-S DDR4 SDRAM: 4 GB Boot ROM: 8 MB Storage eMMC: 8 GB SATA hard disk: 1 TB The firewall supports eight electrical ports and two optical ports.
  • Page 13 Hardware Installation and Reference Guide Overview Warning  During the transfer and use of the product, avoid vibration and shock.  The original package of the product must be used for transportation.  The device is not suitable for use in locations where children are likely to be present. Caution As USB drive models are diversified, the system may not support specific models.
  • Page 14: Preparing For Installation

    Hardware Installation and Reference Guide Preparing for Installation Preparing for Installation Safety Precautions Note  To avoid personal injury and device damage, carefully read the safety precautions before installation.  The following safety precautions may not cover all possible dangers. 2.1.1 General Safety ...
  • Page 15: Esd Safety

    Hardware Installation and Reference Guide Preparing for Installation  You are advised to use an uninterrupted power supply (UPS) to avoid interference caused by power failures. 2.1.4 ESD Safety  Properly ground the device and floor.  Keep the indoor installation environment clean and dust-free. ...
  • Page 16: Cleanliness Requirements

    Hardware Installation and Reference Guide Preparing for Installation If the device works in an environment with too high or too low temperature and humidity for a long period, it may be damaged.  If the relative humidity is too high, insulating materials may have poor insulation or even leak electricity. ...
  • Page 17: Grounding Requirements

    Hardware Installation and Reference Guide Preparing for Installation be properly protected against the intrusion of harmful gases, such as sulfur dioxide, hydrogen sulfide, nitrogen dioxide, and chlorine gas. The following table lists limit values for harmful gases. Table 2-3 Requirements on Gases Average (mg/m Maximum (mg/m Sulfur dioxide (SO...
  • Page 18: Anti-Interference Requirements

    Hardware Installation and Reference Guide Preparing for Installation 2.2.6 Anti-interference Requirements  Take interference prevention measures for the power supply system.  Keep the firewall away from the lightning protection and grounding system of power devices.  Keep the firewall away from high-frequency current devices such as a high-power radio transmitting station and radar launcher.
  • Page 19: Unpacking The Device

    Hardware Installation and Reference Guide Preparing for Installation Unpacking the Device Before installing the Z3200-S firewall, open the accessories box delivered with the product and check whether the accessories are complete. The accessories of the product depend on the product model. For details, see the package contents.
  • Page 20: Installing The Device

    Hardware Installation and Reference Guide Installing the Device Installing the Device Installation Procedure Install the device according to the following procedure to prevent damage. Preparing for Installation Prepare for installation according to 2 Preparing for Installation and check whether the following conditions are met: ...
  • Page 21: Optional) Installing The Hard Disk

    Hardware Installation and Reference Guide Installing the Device (Optional) Installing the Hard Disk Application Scenario The RG-NSEC-HDD-1T hard disk can be configured for the device to store logs and report data. Precautions Pay attention to the following:  Install the hard disk when the device is powered off. Otherwise, the hard disk will be damaged. ...
  • Page 22: Installing The Device At The Specific Position

    Hardware Installation and Reference Guide Installing the Device Installing the Device at the Specific Position The Z3200-S firewall can be installed in a standard cabinet. If no cabinet is available, the device can be installed on a workbench. 3.4.1 Installing in a Cabinet Application Scenario When a standard cabinet is configured, the fixed accessories delivered with the device can be used.
  • Page 23: Connecting The Grounding Cable

    Hardware Installation and Reference Guide Installing the Device After installation, check the following items:  The device is securely placed on the workbench.  A 10 cm space has been reserved around the device for heat dissipation, and no objects that hinder heat dissipation exist.
  • Page 24: Verifying Installation

    Hardware Installation and Reference Guide Installing the Device power supply system of a building has been buried during construction and cabling. Ensure that the power supply of the building has been properly grounded. The grounding resistance is less than 1 ohm. ...
  • Page 25: Commissioning

    Hardware Installation and Reference Guide Commissioning Commissioning Setting Up the Configuration Environment Prerequisites The Z3200-S firewall provides the default configuration, as described in Table 4-1. Table 4-1 Factory Settings of the Device DHCP By default, the DHCP service is not enabled. Login Address Default address: https://192.168.1.200 Default account: admin...
  • Page 26: Checklist After Power-On

    Hardware Installation and Reference Guide Commissioning (2) Turn on the power switch of the firewall. 4.2.3 Checklist After Power-On Check the status of the PWR indicator on the device. Table 4-2 PWR Indicator Status Status Description Steady green The power supply is working normally. The power supply fails or is not turned on.
  • Page 27: Faqs

    (1) Check whether the serial cable is properly connected, and whether the connected serial port is consistent with that configured on HyperTerminal. (2) Check whether the baud rate configured for the serial port on HyperTerminal is correct. (3) If there is still no output on the serial port, contact Ruijie technical support. Optical Port Fails 5.3.1...
  • Page 28 Hardware Installation and Reference Guide FAQs (4) Check whether the fiber type meets the requirement. (5) Optical ports of some devices can work at different rates. In this case, you need to check whether the rates of the two ends are the same.
