Perlick HP24TS/TO Installation Manual page 3

INSTALLATION OF DISPENSING EQUIPMENT
Open the tapping kit box and become familiar with
its components. If the dispensing head is going to be
mounted on a counter top directly above the refrigerated
cabinet, have the counter top pre-drilled using the
supplied template on page 9. Make sure that the access
hole in the refrigerated cabinet is in line with the counter
top holes. Remove any obstructions from the access hole
of the refrigerator. Follow instructions on pages 4 through
7 to properly install the tapping equipment on your perlick
unit.

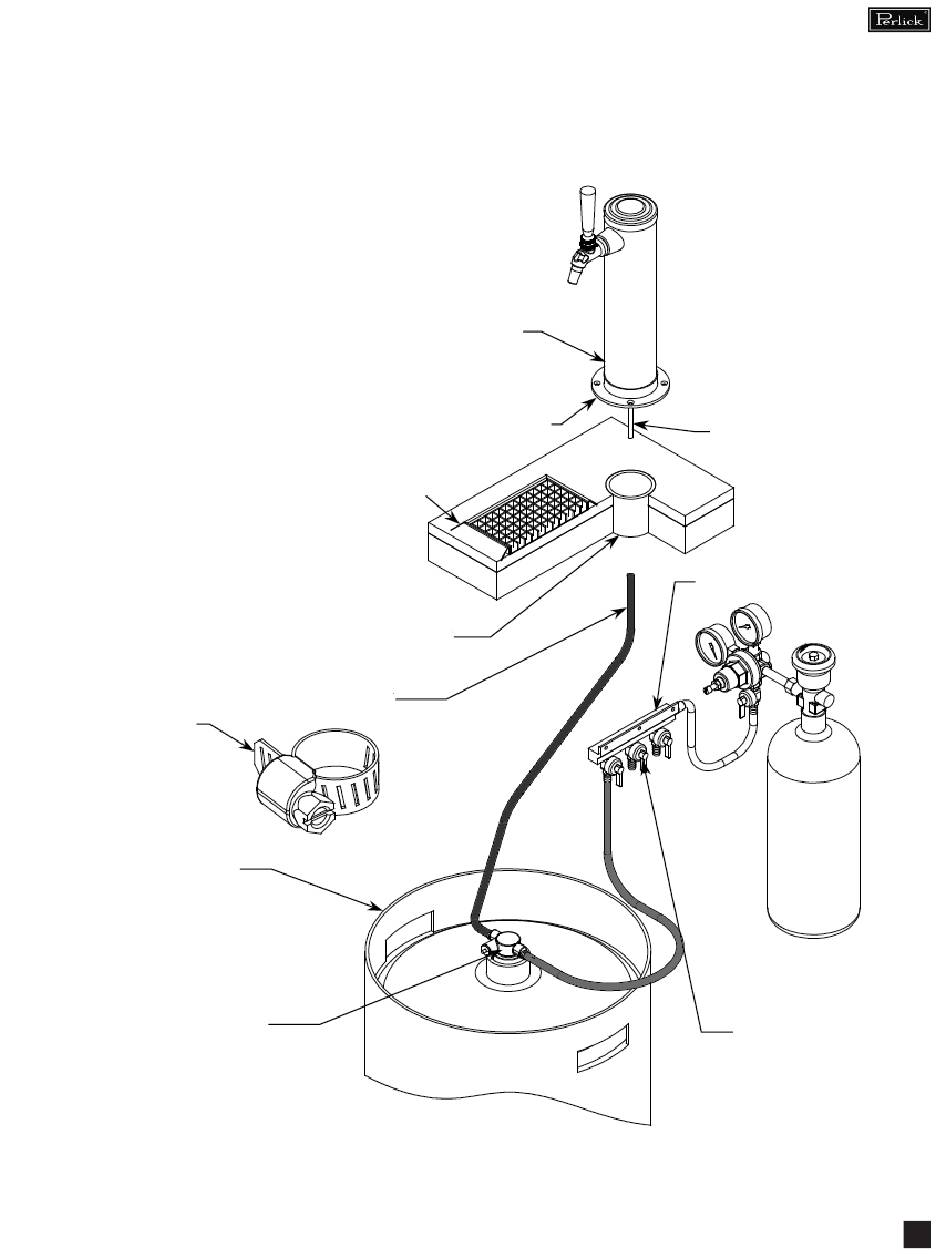

All hose connections
use worm-drive
hose clamps (view
enlarged to verify)
Keg
Keg Coupler
NOTE: Image does not accurately reflect positions of the
different elements within the unit. Positions and hose lengths
shown are to clearly illustrate proper connection methods
only.
PERLICK RESIDENTIAL INSTALLATION MANUAL FOR BEER DISPENSING EQUIPMENT
Dispensing Head
Apply silicone to
bottom interior
Flange Sleeve
Beer Connection
Faucet Lead
Air Distributor
Distributor is only on
multiple keg units,
each keg is connected
to a valve on the air
distributor. Single keg
is connected directly to
the regulator.
perlick.com
3
