DESCRIPTION

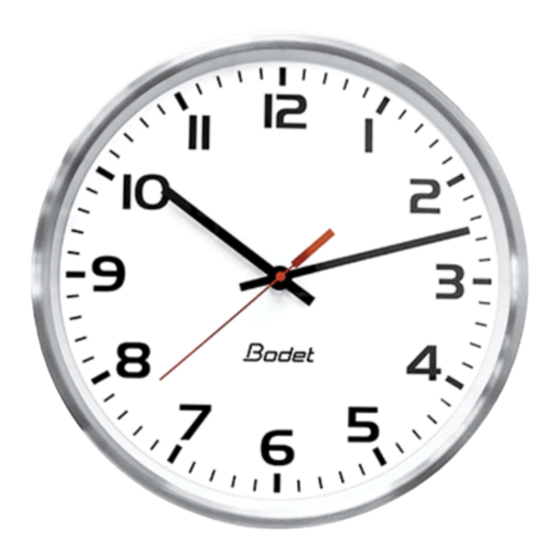

• Analogue display clock for indoor.
• Hour-Minute or Hour-Minute-Second display depending on the model.
• Background: PC/ABS.
• Crystal: heat-tempered glass.
• Casing (front): brushed stainless steel.
• Protection index: IP40, IK08.
• Optimal viewing distance: 20m.
• Dial markings: Arabic figures or minute notches or DIN.
• Optional: wall mount locking disc, wall mount thin bracket and single or double-sided
bracket for ceiling or wall hanging.
COMPLIANCE
• Directive EMC 2014/30/EU
• Directive LVD 2014/35/EU
• Directive RED 2014/53/EU
• IEEE 802.11 b/g (NTP/Wi-Fi model).
TECHNICAL FEATURES
Movement
24V minute parallel impulse
24V second parallel impulse
AFNOR
NTP / ETH
NTP / ETH (silent, sweeping second)
NTP / Wi-Fi TBT
NTP / Wi-Fi AC
DHF battery
DHF TBT
REFERENCES
Hour-Minute Hour-Minute-Second
981 5x7
- 981 4x7
982 8x7 982 9x7
982 Fx7 982 Gx7
- 982 Hx7
982 Wx7 982 Yx7
982 2x7 982 3x7
982 4x7 982 5x7
Substitute the « x » by the figure corresponding to the desired dial.
*NTP Wi-Fi AC : via an AC adapter power supply unit (ref: 982 001).
Power up to 2 Wi-Fi clocks maximum.
Example : Profil 730 NTP Wi-Fi AC HM Arabic figures : 982 W17 + 982 001.
>> www.bodet-time.com <<
PROFIL 730
Power over Ethernet,
Class 0 device, 2W maximum
2x1.5V LR6 batteries
- 24V minute impulse
24V second impulse
AFNOR
NTP / ETH
NTP / ETH (silent)
NTP / Wi-Fi TBT*
DHF battery
DHF TBT
Power supply
-
-
6 to 24 VDC
6 to 24 VDC
100 - 240 VAC
6 to 16 VDC
Dials models (x):
1 = Arabic
figures
3 = DIN
Non-contractual document. © 2022, Bodet Time & Sport. All rights reserved.
Operating
Weight
temperatures
- 10°C to +50°C 1.2 kg
- 10°C to +50°C 1 kg
- 5°C to +50°C 1 kg
- 5°C to +50°C 1 kg
- 5°C to +50°C 1 kg
- 5°C to +50°C 1 kg
- 5°C to +50°C 1 kg
- 5°C to +50°C 1 kg
2 = Minute
notch
