Translation of the original instructions
EN
STARTPACK 12.24 CI / PRO 12.24 CI
SAFETY INSTRUCTIONS
This manual includes guidelines on the operation of your device
and the precautions to follow for your own safety. Ensure it is read
carefully before first use and keep it handy for future reference.
These instructions should be read and understood before anyone
operates the product. Any modifications or maintenance that are not
specified in the manual should not be undertaken. The manufacturer
is not liable for any injury or damage due to non-compliance with
the instruction manual. In case of problems or uncertainties, please
consult a qualified person that is able to handle the device correctly.
This device should only be used for start-up within the limits indicated
on the device and in the manual. The safety instructions must be
followed. In case of improper or unsafe use, the manufacturer
cannot be held responsible
Device suitable for indoor use only. Do not expose to rain or
excessive moisture.
This device may be used by children from age 8 and by persons with
reduced physical, sensory or mental capabilities or lack of experience
and knowledge, provided that they are under supervision or have
been told how to use the device safely and are aware of the potential
risks. Children must not use the device as a plaything. Cleaning and
servicing tasks may not be carried out by children unless they are
supervised.
Do not use for charging non-rechargeable batteries
Do not use any charger other than the one supplied with the
machine to charge the batteries.
Do not operate the device with a damaged power supply cord or
a damaged mains plug.
Never charge a frozen or damaged battery.
Do not cover the device
Do not place the device near a fire or subject it to heat or to
longterm temperatures exceeding 60°C
Do not obstruct the cooling vents. Refer to the installation section
before operating the machine.
Risk of explosion or acid projection in case of short-circuit of the
clamps or if the 12V booster is connected to a 24V vehicle or vice
versa.
The automatic mode of operation and usage restrictions are
explained below in these operating instructions.
Risk of explosion and fire!
A battery being charged can emit explosive gas.
• During the charge, the battery must be placed in a well ventilated
area.
11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STARTPACK 12.24 CI and is the answer not in the manual?

Questions and answers

Summary of Contents for GYS STARTPACK 12.24 CI

  • Page 1 Translation of the original instructions STARTPACK 12.24 CI / PRO 12.24 CI SAFETY INSTRUCTIONS This manual includes guidelines on the operation of your device and the precautions to follow for your own safety. Ensure it is read carefully before first use and keep it handy for future reference.
  • Page 2: Maintenance

    Translation of the original instructions STARTPACK 12.24 CI / PRO 12.24 CI • Avoid flames and sparks. Do not smoke. • Protect the electrical contacts of the battery against short-circuiting. Acid projection hazard! • Wear safety goggles and protective gloves •...
  • Page 3: General Description

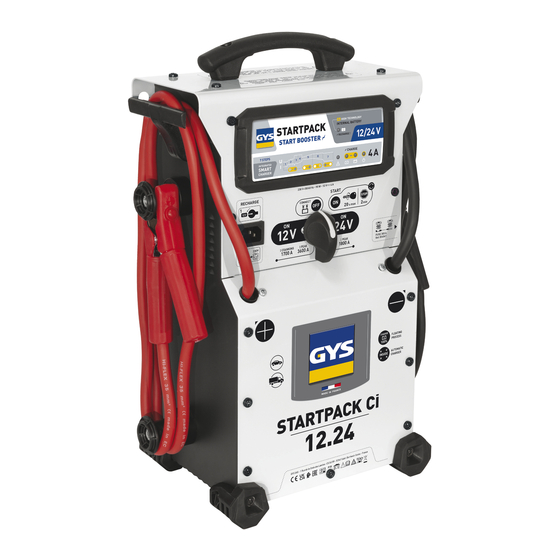

    GENERAL DESCRIPTION The STARTPACK 12.24 CI & PRO 12.24 CI are autonomous starters intended for starting vehicles equipped with a 12 V (6 x 2 V) and 24 V (12 x 2 V) lead-acid battery with liquid or gel electrolyte from light to heavy vehicles.
