Translation of the original instructions
EN
NOMAD POWER PRO 12 XL / 24 XL
SAFETY INSTRUCTIONS
This manual includes guidelines on the operation of your
device and the precautions to follow for your own safety.
Ensure it is read carefully before first use and keep it handy
for future reference.
This device should only be used for start-up or power supply
within the limits indicated on the device and in the manual.
The safety instructions must be followed. In case of improper
or unsafe use, the manufacturer cannot be held responsible
Device suitable for indoor use only. Do not expose to rain or
excessive moisture.
This device may be used by children from age 8 and by
persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge, provided that they are
under supervision or have been told how to use the device
safely and are aware of the potential risks. Children must
not use the device as a plaything. Cleaning and servicing
tasks may not be carried out by children unless they are
supervised.
Do not use for charging non-rechargeable batteries
Do not use any charger other than the one supplied with the
machine to charge the batteries.
Do not use the device if the charging cable appears to be
damaged or assembled incorrectly in order to avoid any risk
of short circuiting the battery (NOMAD POWER charger).
Never charge a frozen or damaged battery.
Do not cover the device
Do not place the device near a fire or subject it to heat or to
longterm temperatures exceeding 50°C
Risk of explosion or acid projection if the clamps are short-
circuited or if the 12V booster is connected to a 24V vehicle
or vice versa.
The automatic mode of operation and usage restrictions are
explained below in these operating instructions.
Risk of explosion and fire!
A battery being charged can emit explosive gas.
• Avoid flames and sparks. Do not smoke.
• Protect the electrical contacts of the battery against short-
circuiting.
Acid projection hazard!
• Wear safety goggles and protective gloves
9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NOMAD POWER PRO 12 XL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GYS NOMAD POWER PRO 12 XL

  • Page 1 Translation of the original instructions NOMAD POWER PRO 12 XL / 24 XL SAFETY INSTRUCTIONS This manual includes guidelines on the operation of your device and the precautions to follow for your own safety. Ensure it is read carefully before first use and keep it handy for future reference.
  • Page 2: Connection / Disconnection

    Translation of the original instructions NOMAD POWER PRO 12 XL / 24 XL • If your eyes or skin come into contact with battery acid, rinse the affected part of the body with plenty of water and seek immediate medical assistance.
  • Page 3: Product Description

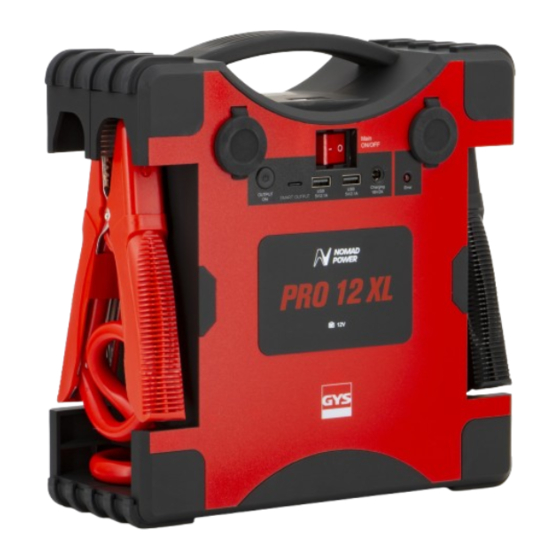

    Translation of the original instructions NOMAD POWER PRO 12 XL / 24 XL PRODUCT DESCRIPTION Thanks to their high-performance lithium-ion battery (PRO 12 XL: 118.4 Wh - PRO 24 XL: 236.8 Wh), the NOMAD POWER PRO 12XL / PRO provides 3 functions: •...
  • Page 4 Translation of the original instructions NOMAD POWER PRO 12 XL / 24 XL OUTPUT Charging Error 1 - Plug the wall mounted charger (12) into a mains socket. ON/OFF OUTPUT 5V/2.1A 5V/2.1A 18V/2A 2- Connect the end of the cable to the 18 V/2 A charging port (7) of the NOMAD POWER)
  • Page 5: Power Supply

    Translation of the original instructions NOMAD POWER PRO 12 XL / 24 XL After starting, disconnect the battery clamps from the battery and replace the clamps on the booster. Leave the vehicle running. Turn the unit off. USE OF THE BOOSTER’S INTERNAL BATTERY When the vehicle battery is too discharged, the booster battery can be used as a power source for starting.
  • Page 6: Troubleshooting

    Translation of the original instructions NOMAD POWER PRO 12 XL / 24 XL FLASHLIGHT FUNCTION Press the ON/OFF button on the LED (9) to activate the lighting. Each new press changes the lighting mode (3 available modes: normal, strobe light, SOS) until the light goes out.

This manual is also suitable for:

Nomad power pro 24 xl
