- Page 3 Please read this user manual first! Dear Customer, We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use.
-
Page 4: Table Of Contents
CONTENTS 1 INSTRUCTIONS FOR SAFETY Adjusting the height of loaded upper basket ............25 AND ENVIRONMENT Height setting with empty basket ..26 General safety ..........4 Intended use ..........4 5 OPERATING THE PRODUCT 27 Children’s safety .......... 5 Keys ..............28 Disposing of packaging material .... -
Page 5: Instructions For Safety And Environment
instructions for safety and environment This section contains safety electric shock! instructions that will help to Never touch the plug with • get protected from risk of wet hands! Never unplug by personal injury or property pulling on the cable, always damage. -
Page 6: Children's Safety
instructions for safety and environment Children’s safety It must be used to do the • domestic type dishes only. Electrical products are • This appliance is intended • dangerous for the children. to be used in household and Keep children away from the similar applications such as: product when it is in use. -
Page 7: Compliance With Weee Directive And Disposing Of The Waste Product
instructions for safety and environment Package information 1. Unplug the product before transporting it. Packaging materials of the 2. Remove water drainage and product are manufactured water supply connections. from recyclable materials in accordance with our National 3. Drain the remaining water in Environment Regulations. -
Page 8: Dishwasher

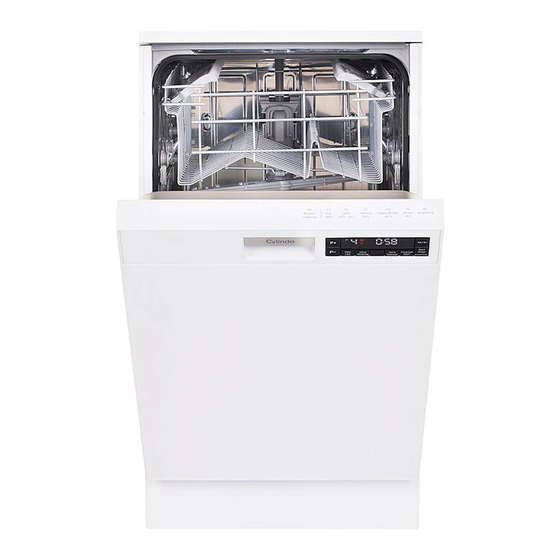

Dishwasher Overview 1. Upper basket 2. Upper impeller 3. Lower impeller 4. Silverware basket 5. Rating Label 6. Door 7. Control panel 8. Detergent dispenser 9. Lower basket 10. Filters 11. Salt reservoir lid 12. Upper basket rail 13. Tabletop (depends on model) 14. -
Page 9: Fan Drying System
Dishwasher Technical specifications Compliance to standards and test data / EC declaration of conformity This product complies with the following EU directives; Development, production and sales stages of this product comply with the safety rules included in all pertaining European Community regulations. 2014/35/EU, 2014/30/EU, 93/68/EC, IEC 60436/DIN 44990, EN 50242 Power input 220-240 V, 50 Hz (see rating label) -
Page 10: Installation
Installation Appropriate installation Refer to the nearest Authorised Service Agent for installation of your product. To location make the product ready for use, make sure Place the product on a solid and flat • that the electricity, tap water supply and floor that has sufficient load carrying water drainage systems are appropriate capacity! The product must be... -
Page 11: Aquasafe
Installation Aquasafe+ Permitted water temperature: up to 25°C (depends on model) The dishwasher may not be connected to The Aquasafe+ system protects against open warm water devices or flow-through water leaks that may occur at the hose water heaters. inlet.Water contact with the valve box of Do not use old or used water inlet •... -
Page 12: Adjusting The Feet
Installation accordance with the local regulations. Connection must comply with national • max 100 cm regulations. Power cable plug must be within easy • reach after installation. min 50 cm Unplug the product after the min 4cm washing programme is over. The voltage and allowed fuse or •... -
Page 13: Initial Use
Installation Initial use Before starting to use the product, make sure that all preparations are made in accordance with the instructions in sections “Important safety instructions” and “Installation”. To prepare the product to do the • dishes, perform first operation in the shortest programme with detergent while the machine is empty. -
Page 14: Preparation
Preparation Tips for energy saving Adjusting the water softening system Following information will help you use the product in an ecological and energy- Cleaning, rinsing and drying performance of efficient manner. your dishwasher will increase when water Wipe away any coarse food remnants on softening system is adjusted properly. - Page 15 Installation Use the test strip supplied with the product according to the steps given below to determine hardness level of your supply water. 1 min. 1 Second 1 Minute Remove the test Turn on the tap and Hold the test strip in Remove the test Wait for 1 minute.
-
Page 16: Adding Salt
Preparation If you move your house, it is necessary to readjust water hardness level of your machine by considering the information given above according to the hardness level of the supply water in your new location. Your machine will display the most recently adjusted water hardness level. -
Page 17: Detergent
Preparation Detergent 3. Fill the salt reservoir with salt by using salt funnel (D). To speed up dissolution You can use powder, liquid/gel and tablet rate of salt in water, stir it with a detergents in the machine. spoon. Only use the detergents produced particularly for use with dishwashers. -
Page 18: Combined Tablet Detergents
Preparation 3. Close the detergent dispenser lid by Push the latch to right to open the pressing on it lightly. A “click” will be detergent dispenser lid (A). heard when the lid is closed. In programmes with prewash and high temperature, in which you use tablet detergents, make sure that the detergent dispenser lid is closed firmly. -
Page 19: Rinse Aid
Preparation Rinse aid combined detergent whether it is suitable for the hardness level of the water supply. The rinse aid used in While using combined tablet dishwashers is a special detergents contact with combination used to increase the detergent producers if drying efficiency and prevent the dishes are wet and/or if water or limescale stains on the... - Page 20 Preparation Placing the dishes into the factory default. dishwasher 4. Close the lid of the reservoir by You can use your dishwasher in the pressing on it lightly. optimum way with respect to energy Wipe clean any spilled rinse aid consumption and washing and drying outside the reservoir.
- Page 21 Preparation Suggestions for loading the dishwasher Improper Loading Of Dishware Lower basket Upper basket /43 EN...
-
Page 22: Cutlery Basket
Preparation Cutlery basket Collapsible lower basket tines (depends on model) Cutlery basket is designed to wash your (depends on model) dishes such as knife, fork, spoon, etc. in a Foldable tines (A) located at the lower cleaner manner. basket of the machine are designed for an easier placement of large pieces such as pans, bowls, etc. -
Page 23: Collapsible Lower Basket Tines
Preparation Bringing the tines to the horizontal position by holding them from the tips may cause them to bend. Therefore, it will be appropriate to bring the tines in the middle to horizontal or vertical position by holding them from their stems and pushing in the direction of arrow. -
Page 24: Collapsable Lower Basket Wires (2 Pieces)
Preparation Collapsible upper basket Collapsable lower basket tines wires (2 pieces) (depends on model) (depends on model) Upper basket of the machine is equipped The two piece foldable wires located at the with tines with gradual folding system (A) lower basket of the machine are designed that you can lay down when you need a for an easier placement of large pieces larger space for large dishes. -
Page 25: Upper Basket Rack
Preparation Upper basket rack To lower the basket: Press the latch on the loaded basket (depends on model) adjustment mechanism (right and left) to lower the basket (B). Adjusting the height of the upper basket Repeat the same process to lower the (depends on model) other side of the basket. -
Page 26: Adjusting The Height Of Loaded Upper Basket
Preparation Adjusting the height of loaded upper basket (depends on model) Basket adjustment mechanism on the upper basket of the machine is designed to allow you create wider areas in the upper or lover section of the machine based on your requirements by adjusting the height of the loaded basket in up or down directions without removing it from the machine. -
Page 27: Height Setting With Empty Basket
Preparation Height setting with empty basket (depends on model) In this model, the height setting of the upper basket may be changed using the wheels which are mounted at two different heights. Release the latches on both the right and left tracks of the upper basket by pushing them outwards Pull out the basket out completely. -
Page 28: Operating The Product
Operating the product Display 5. Function keys Half Load Function 2. On/Off key 3. Start/Pause/Cancel key Fast+ Function 4. Time Delay key Super Rinse Function Extra Drying Function 6. Programme Selection keys 7. Programme indicator 12. End of Programme indicator 8. -
Page 29: Keys
Operating the product Keys 3. Press Programme Selection keys until the number of the programme you On / Off key selected appears on the Programme It is used to turn on or off the machine. indicator. Use P+ to switch to the next Press On / Off Key to switch ON. - Page 30 Operating the product 29 / 43 EN...
-
Page 31: Auxiliary Functions
Operating the product Auxiliary functions Fast+ Function It shortens the time of the washing cycle Washing programmes of your dishwasher selected and decreases water consumption are designed to obtain the best cleaning by enabling washing under higher pressure. effect, considering the type of the soil, soiling degree and properties of the dishes Half Load function to be washed. -
Page 32: Programming The Washing Time
Operating the product Programming the washing Floor illumination Warning to show that machine is time in washing phase Time Delay (depends on the model) If an economical electricity tariff is applied Your machine reflects a light to the floor in your region, you can use the Time during the washing process. - Page 33 Operating the product To cancel the Time Delay function Pay attention not to open the Press and hold Start / Pause / Cancel key door of the machine when it is for 3 seconds. running. Stop the machine by 2. When the Start / Pause / Cancel key pressing Start / Pause / Cancel is pressed and hold, "3", "2", "1"...
-
Page 34: Cancelling The Programme
Operating the product If you turn your machine off Adjusting the water hardness by using On/Off key at the level is explained in Water end of the programme, the Softening System section. Child Lock will be deactivated Rinse Aid indicator ( ) automatically. -
Page 35: Innerclean
Operating the product regularly by the machine; when the water is restored E:02 icon will disappear after a while and the washing programme resumes. Overflowing warning If the machine intakes too much water or there is leakage at any of the components then the machine will detect this and E:01 icon will flash on the Programme indicator. -
Page 36: Maintenance And Cleaning
Maintenance and cleaning Cleaning the filters Service life of the product extends and frequently faced problems decrease if it is Clean the filters at least once a week in cleaned at regular intervals. order for the machine operates efficiently. Unplug the product and turn off Check if food residues are left on the filters. -
Page 37: Cleaning The Hose Filter
Maintenance and cleaning Cleaning the hose filter Damages on the machine that may be caused by impurities coming from the urban supply water or your own water installation (such as sand, dirt, rust, etc.) can be prevented by means of the filter attached to the water inlet hose. -
Page 38: Cleaning The Impellers
Maintenance and cleaning Cleaning the impellers Upper impeller Clean the impellers at least once a week in Check if the holes on the upper impeller (1) order for the machine operates efficiently. are clogged. If they are clogged, remove and clean the impeller. Turn its nut to left Lower impeller to remove the upper impeller. -
Page 39: Troubleshooting
Troubleshooting Machine does not start. • Power cable is unplugged. >>> Check if the power cable is plugged in. • Fuse is blown. >>> Check the fuses in your house. • Water is cut. >>> Make sure that the water inlet tap is open. •... - Page 40 Troubleshooting • Rinse aid is not sufficient. >>> Check the rinse aid indicator and add rinse aid if necessary. Increase the rinse aid setting if there is enough amount of rinse aid in the machine. • Machine is unloaded right after the programme is over. >>> Do not unload your machine right after washing process is completed.
- Page 41 Troubleshooting machine. Since the salt granules that will remain under the lid will dissolve during prewash, causing the lid loosen, check the lid once again at the end of the programme. There is a different odour in the machine A new machine has a peculiar odour. It will fade out after a couple of washes. •...
- Page 42 Troubleshooting Detergent remains in detergent dispenser. • Detergent dispenser was damp when adding detergent. >>> Make sure that the detergent dispenser is dried well prior to filling it with detergent. • Detergent is added long before the washing process. >>> Pay attention to add detergent shortly before start-up of the washing.
- Page 43 Troubleshooting A smear remains on glasses that resembles milk stain which can not be removed when wiped by hand. A bluish / rainbow appearance occurs when the glass is pointed to light. • Excessive rinse aid is used. >>>Lower rinse aid setting. Clean the spilled rinse aid when adding rinse aid.
- Page 44 • Nationwide service • Model code • Problem description • Visit www.cylinda.se • Serial number • Name and address • Call 0771-25 25 00 • Purchase date • Phonenumber Elektroskandia Sverige AB, Cylinda, 191 83 Sollentuna...
