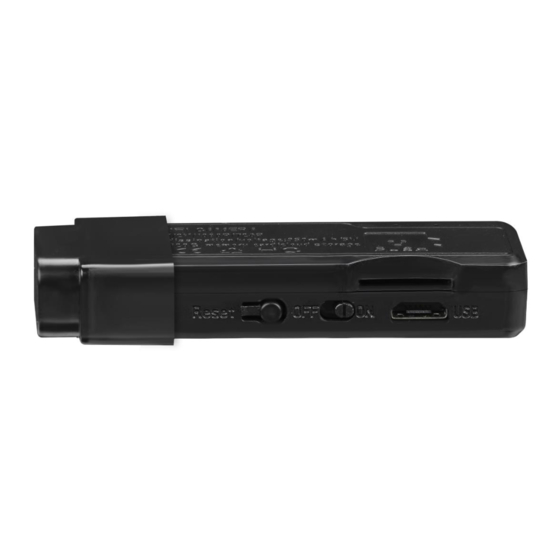

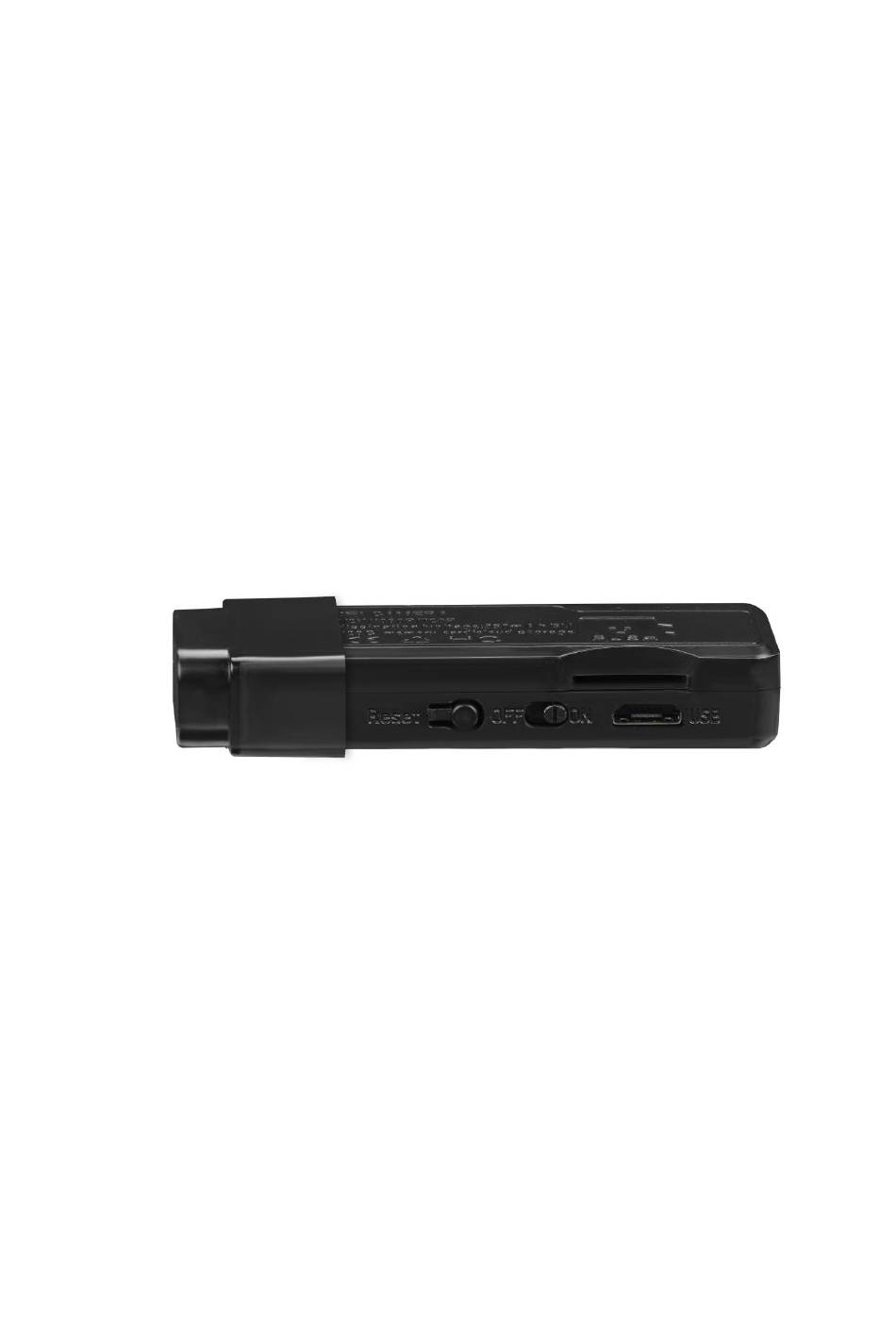

- Page 1 MW3N Pro Mini Camera Quick Guide Before using the camera for the first time, please read the important notes and setup camera procedure in this quick guide. Video tutorial: https://wiwacam.com/mw3npro-s-en English VER:3NP-EN-2307...
-
Page 2: Table Of Contents
2.1 Preparation ................................- 6 - 2.2 Turning on the camera ............................- 6 - 2.3 WIWACAM app ..............................- 7 - 2.4 Setup Camera ................................. - 7 - 2.5 The Other Option of Setup Method ......................- 10 - 3 Work with Mobile Power Bank .......................... -
Page 3: Important Notes
Important notes: 1. If the seal labels on the packing box were opened or deformed before opening, please contact us: (email: service@wiwacam.com). 2. The camera has no built-in battery. Connect camera to a power bank to run on the go, or connect to USB power adapter for 24/7 running. - Page 4 10. The MW3N Pro prevents rapid switching back and forth between day mode and night mode. If the camera switches modes frequently within 1 minute, it will stay in night mode for 30 minutes.
-
Page 5: Note
⚫ Front Cap Removed for Better Night Vision: If you require better night vision quality, you have the option to remove the front cap from the camera. This will enhance the camera's night vision capabilities. - 5 - wiwacam.com/support... -
Page 6: Set Up Camera And Connect To Wifi
2A). Put the Power button to ON. ✓Wait for 40 to 60 seconds, you will see the status LED will flash in red and blue. ✓If the status LED does not flash in red and blue, please try resetting the - 6 - wiwacam.com/support... -
Page 7: Wiwacam App
(The camera support two setup methods. Here is the first way. The second way can be found in Chapter 2.5 ‘The Other Option of Setup Method’) 1. Start the WIWACAM app, click the + button in top right corner to add a new camera. - Page 8 LED flashing in blue quickly, then Click ‘NEXT’ button in the current app page. (In some cases the app will detect camera automatically, app will continue to next step automatically.) - 8 - wiwacam.com/support...
- Page 9 4. The app will find and add the camera, and ask you to name it and set your own password to the camera. - 9 - wiwacam.com/support...
-
Page 10: The Other Option Of Setup Method
If you have reset the camera, you need to run this Setup Camera procedure again. 2.5 The Other Option of Setup Method The camera supports two setup methods. If the setup guide above cannot be completed in your case, please try the - 10 - wiwacam.com/support... -
Page 11: Work With Mobile Power Bank
For instance, there are power banks available that are as small as a lipstick in size. 4. Reset the Mini Camera You can reset the MW3N Pro camera. This makes camera restore to factory default settings (forget any settings users set, including WiFi name and WiFi password). -
Page 12: Microsd Card Slot
Camera records to microSD card with .avx file format into microSD card. (avx format could provide enhanced data loss protection during video data recording). To view or download recordings on phone, no extra tools needed. App will auto convert avx to mp4. - 12 - wiwacam.com/support... -
Page 13: Night Vision Quick Guide
If you see the camera staying in night mode (black and white) even in a well-lit room, simply wait a few minutes. The MW3N Pro camera detects and prevents rapid switching between day mode and night mode. If the camera switches modes frequently within one minute, it will stay in night mode for 30 minutes. - Page 14 Example 2: A chair blocks part of the night vision, the camera's range will be limited to around 3ft/1m instead of the intended 20ft/6m. Here is the night vision image after correcting the two errors above - 14 - wiwacam.com/support...
-
Page 15: Feature Guides
Method 1: In the same local network 1.Connect the smartphone to the same Wi-Fi network as the camera. 2.Start the WIWACAM app. In the My Camera page, wait for a while until - 15 - wiwacam.com/support... - Page 16 3. click this blue bar, click ADD button. Name the camera, and input the camera password set by you or the camera owner. Click Complete button. Done! - 16 - wiwacam.com/support...
- Page 17 Method 2: From outside of home network, or if the camera was not detected automatically 1. start the WIWACAM app. 2. click the “+” button in the upper right corner, then select “Manual”. - 17 - wiwacam.com/support...
- Page 18 3. Input Camera ID and click ‘NEXT’ button. (Camera ID could be found on camera body, it is like R001234). Name the camera and input camera password, Click ‘NEXT’ button. Done! - 18 - wiwacam.com/support...
-
Page 19: Check Live Video
7.2 Check Live Video Start ‘WIWCAM’ app » In ‘My Camera’ page, click the Video button » You will see the live video from the camera - 19 - wiwacam.com/support... - Page 20 Function mute/unmute take a snapshot of live video. You could find the snapshot in WIWACAM app : Toolbox (in the middle of bottom tab bar) » Album » You can view and save snapshot to your phone Album (Android only) record the live content to phone. Click to start, then click again to stop and save.
-
Page 21: Set Continuous Recording
Tips: this function requires microSD card installed. (microSD card not included in the product) Start ‘WIWCAM’ app » click Settings of the camera » Recording Settings choose ‘Record Resolution’ to HD, set ‘Record Type’ as ‘Continuous Recording’, set ‘Turn On Recording’ as ON. - 21 - wiwacam.com/support... -
Page 22: Set Alarm Recording
4. Check ‘Playback Recordings’ in this chapter about how to view recordings in app. 7.4 Set Alarm Recording Tips: this function requires microSD card installed. (microSD card not included in the product) Start ‘WIWCAM’ app » click Settings of the camera » Recording Settings - 22 - wiwacam.com/support... - Page 23 ‘Record resolution’ to HD, set ‘Record Type’ as ‘Alarm Recording’, select Record Time (1, 2 or 3minutes). - 23 - wiwacam.com/support...
- Page 24 3. When the microSD is almost full, the camera will do auto loop: auto overwrite oldest recordings by latest recordings. 4. Check ‘Playback Recordings’ in this chapter about how to view recordings. - 24 - wiwacam.com/support...
-
Page 25: Playback Microsd Card Recordings
» tap on recording file in the list to view it 7.6 Set Alarm and Alarm Notification 1 Set Motion Detection Start WIWACAM app » click the settings of the camera » Alarm Settings » Motion Detection » here you can enable Motion Detection, change sensitivity(optional), set motion zones(optional). - Page 26 - 26 - wiwacam.com/support...
- Page 27 Detection any more, just one tap to the general Alarm button here to turn off the alarm detection. Next day, before you go out home, one tap to the general Alarm button to turn on alarm detection. - 27 - wiwacam.com/support...
-
Page 28: Check Alarm List
7.7 Check Alarm List Start WIWACAM app » click ‘Alarm List’ » check the alarm list here. Click on the event to see a short event video(requires microSD card already installed) - 28 - wiwacam.com/support... -
Page 29: Notes About Playback Recordings On Pc/Mac
Please reset the camera and try again (see Chapter Steady Blue Camera is connected to the router via WiFi. This LED can be switched off in the app. Flashing red Wrong WiFi password Please reset the camera and try again (see Chapter 5) - 29 - wiwacam.com/support... -
Page 30: Setup Camera Not Successful
WiFi password input to the app is wrong. Reset the camera and try again with the correct WiFi password. - If the LED is steady red, the camera cannot find the provided WiFi network. Reset the camera, connect your phone to the target WiFi (the WiFi you - 30 - wiwacam.com/support... - Page 31 Make sure your phone is connected to the same WiFi as the camera. Start the WIWACAM app, wait for some seconds until a blue strip appears. Click on the blue strip and follow the guide to add the camera to your phone.
- Page 32 20cm between the radiator & your body Friendly Remider The mini camera comes with product warranty. Please check details or service terms with the seller. If you have bought from Amazon, contact Email service@wiwacam.com directly. WIWACAM will provide warranty and service directly. - 32 - wiwacam.com/support...
