Summary of Contents for WIWACAM MW7 Pro

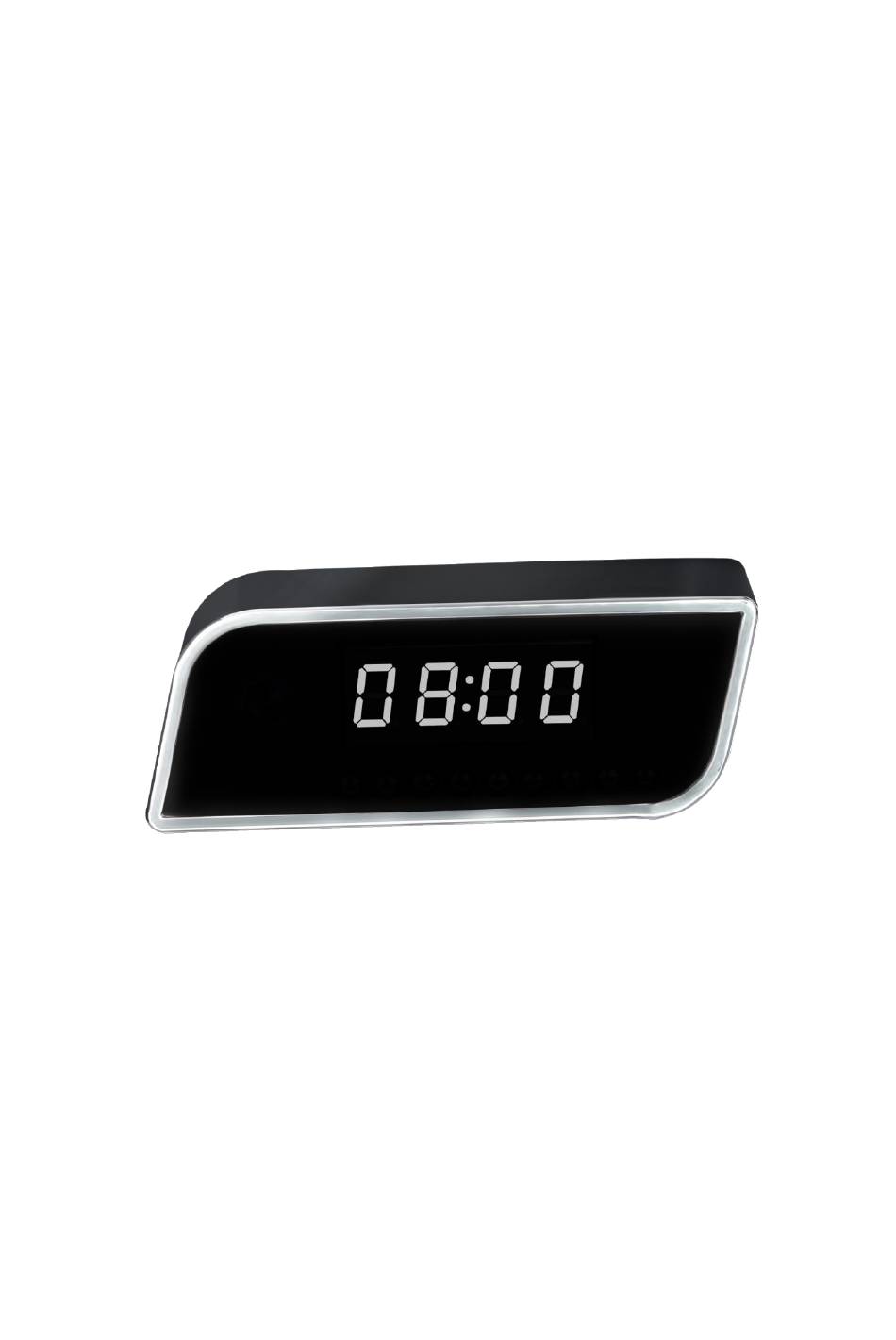

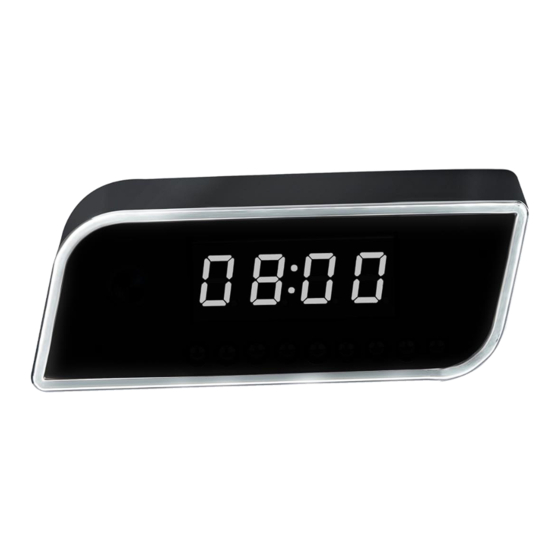

- Page 1 MW7 Pro Mini Camera Quick Guide Before using the camera for the first time, please read the ‘Important Notes’ and ‘Setup Camera’ in this quick guide. Video tutorial: wiwacam.com/mw7-s-en English...
-
Page 2: Important Notes
Important notes: 1. If the seal labels on the box are torn, missing, or damaged before you open it, please contact us for a new camera, email: service@wiwacam.com. 2. Before using the camera, please complete the first setup as described in Chapter 2. - Page 3 7. To achieve better image quality and better night vision, please place the MW7 Pro camera closer to the edge of the table. If it is positioned too far away from the table edge, a significant portion of the image may be occupied by the table itself.
-
Page 4: Table Of Contents
2. Setup Camera and Connect to WiFi ........................- 6 - 2.1 Preparation................................- 6 - 2.2 Prepare and Turn on Camera ........................... - 7 - 2.3 WIWACAM app ..............................- 7 - 2.4 Setup Camera ................................. - 8 - 2.5 The Second Setup Method ..........................- 11 - 2.6 Test WiFi signal of installation place ...................... -
Page 5: Product Brief
1. Product Brief Please note that the camera also has a front panel and a back cover installed. (After removing the front panel) Please note that the correct position for the IR LED is on the upper side. - 5 - wiwacam.com/support... -
Page 6: Setup Camera And Connect To Wifi
Keep your smartphone and the camera close to your WiFi router, within 9 feet (3 meters) during the installation process (you can move the camera further away after installation) ✓ Ensure you have the correct WiFi password for the network - 6 - wiwacam.com/support... -
Page 7: Prepare And Turn On Camera
✓Search for ‘wiwacam’ in the App Store (iPhone) or in Google Play (Android) to find and install the ‘WIWACAM' app for free. WIWA CAM App Download in App Store and Google Play ✓Set up a new account in the WIWACAM app by clicking 'New User Registration'. - 7 - wiwacam.com/support... -
Page 8: Setup Camera
(If you already have a WIWACAM app account, just login to the account) 2.4 Setup Camera The app will guide you to through the configuration process step by step. video tutorial available: https://wiwacam.com/mw7-s-en (The camera support two setup methods. Here is the first way. The second way can be found in Chapter 2.5) - Page 9 (In some cases the app will detect camera automatically and continue to next step automatically.) 5. The app will display ‘In Progress’ and add the camera, then prompt you to name the camera and set your own password to the camera. Click ‘Complete’ button. - 9 - wiwacam.com/support...
- Page 10 Note2: As long as your phone has internet (either via WiFi or mobile data), you can access the camera video via the app, no matter you are at home, outside or on the go. Note3: To ensure a good WiFi signal in the planned placement location, - 10 - wiwacam.com/support...
-
Page 11: The Second Setup Method
✓ Make sure your phone is connected to the 2.4GHz WiFi network (as this is the WiFi that will be tested). ✓ Open the WIWACAM app and go to Toolbox > WiFi Test. ✓ Click the Start button ✓ You can find clues for evaluating the test result in the upper part of the page. -
Page 12: Install Microsd Card
(If you feel the battery capacity may get a problem, please contact our support for a checking and replacement, email: service@wiwacam.com ) To charge the camera battery: ✓Connect the camera by USB cable to power adapter, the camera battery will be charged. -
Page 13: Reset Camera
Release pressing RESET button, and please wait a few seconds before performing the next step. (If the camera does not response to RESET button pressing, check the camera may not be turned on. Go to Step1 turn on camera or contact us) - 13 - wiwacam.com/support... -
Page 14: Feature Guides
Method 1: In the same local network 1.Connect the smartphone to the same Wi-Fi network as the camera. 2.Start the WIWACAM app. In the ‘My Camera’ page, wait for a while until a blue bar indicates that a new camera has been detected. - Page 15 Click Complete button. Done! Method 2: From outside of home network, or if the camera was not detected automatically 1. start the WIWACAM app. 2. click the “+” button in the upper right corner, then select “Manual”. - 15 - wiwacam.com/support...
- Page 16 3. Input Camera ID and click ‘NEXT’ button. (Camera ID could be found on camera body, it is like R001234). Name the camera and input camera password, Click ‘NEXT’ button. Done! - 16 - wiwacam.com/support...
-
Page 17: Check Live Video
▲Check Live Video Start ‘WIWCAM’ app » In ‘My Camera’ page, click the Video button » You will see the live video from the camera Here are the functions in the above live video page: Icon Function mute/unmute - 17 - wiwacam.com/support... -
Page 18: Set Continuous Recording
You could find the snapshot in WIWACAM app : Toolbox (in the middle of bottom tab bar) » Album » You can view and save snapshot to your phone Album (only available in Android app) record the live content to phone. - Page 19 ‘Record Resolution’ to HD, set ‘Record Type’ as ‘Continuous Recording’, set ‘Turn On Recording’ as ON. Notes: 1. As soon as the “Turn On Recording” is set to ON, the camera starts recording with 7/24 non-stop, until you set ‘Turn On Recording’ to OFF - 19 - wiwacam.com/support...
-
Page 20: Set Alarm Recording
Tips: this function requires microSD card installed. (microSD card not included in the product) Start ‘WIWCAM’ app » click Settings of the camera » Recording Settings choose ‘Record resolution’ to HD, set ‘Record Type’ as ‘Alarm Recording’, select Record Time (1, 2 or 3minutes). - 20 - wiwacam.com/support... -
Page 21: Playback Microsd Card Recordings
For complete playback of the recording, refer to the next guide on "Playback microSD card Recordings". ▲Playback microSD card Recordings Tips: this function requires microSD card installed. (microSD card not included in the product) - 21 - wiwacam.com/support... -
Page 22: Set Alarm And Alarm Notification
» tap on recording file in the list to view it ▲Set Alarm and Alarm Notification 1 Set Motion Detection Start WIWACAM app » click the settings of the camera » Alarm Settings » Motion Detection » here you can enable Motion Detection, change sensitivity(optional), set motion zones(optional). - Page 23 Go to ‘My Camera’ page again » click settings of the camera –> enable “Alarm Push” Now if there is new alarm event, camera will send alarm notification to your phone. If you don’t need to receive the notification, turn it off here. - 23 - wiwacam.com/support...
- Page 24 Detection any more, just one tap to the general Alarm button here to turn off the alarm detection. Next day, before you go out home, one tap to the general Alarm button to turn on alarm detection. - 24 - wiwacam.com/support...
-
Page 25: Check Alarm List
▲Check Alarm List Start WIWACAM app » click ‘Alarm List’ » check the alarm list here. Click on the event to see a short event video(requires microSD card already installed) ▲Night Vision related In night vision mode, be careful not to have objects too close to the lens. - Page 26 .mp4 file into the VLC window. Note: MacOS, iOS, and Android have supported H.265 video codec by default for several years now. You can play .mp4 files directly on these platforms without any additional installations or fees. - 26 - wiwacam.com/support...
-
Page 27: Set Time And Time Zone
You can change the time zone if you want: go to WIWACAM app -> in ‘My Camera’ page, click settings of camera -> Date and Time -> choose a Time Zone value, Click the OK or Apply button closed to the time zone option->... -
Page 28: Use Camera With No Wifi
Check this link below about more FAQ and resources online. We regularly update to include latest FAQ and features, https://wiwacam.com/mw7-faq-en 8 Error diagnostics 8.1 Setup Camera not Successful Question: I am having trouble setting up and adding camera to my phone - 28 - wiwacam.com/support... - Page 29 Make sure your phone is connected to the same WiFi as the camera. Start the WIWACAM app, wait for some seconds until a blue strip appears. Click on the blue strip and follow the guide to add the camera to your phone.
- Page 30 WiFi. Check if there are MAC filter settings on the router. If the issue persists, contact our support at service@wiwacam.com. If none of these solutions work, please don't hesitate to contact our support for further assistance.
- Page 31 Friendly Remider The mini camera comes with 1-year product warranty. Please check details or service terms with the seller. If you have bought from Amazon, contact Email service@wiwacam.com directly. WIWACAM will provide warranty and service directly. - 31 - wiwacam.com/support...
