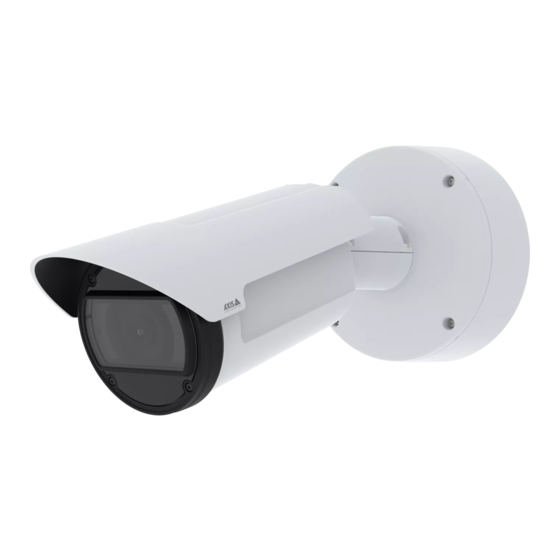

AXIS Q180X-LE Bullet Camera Series
AXIS Q1805-LE Bullet Camera
AXIS Q1806-LE Bullet Camera
AXIS Q1808-LE Bullet Camera
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Q180 LE Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Axis Q180 LE Series

Summary of Contents for Axis Q180 LE Series

  • Page 1 AXIS Q180X-LE Bullet Camera Series AXIS Q1805-LE Bullet Camera AXIS Q1806-LE Bullet Camera AXIS Q1808-LE Bullet Camera User manual...

  • Page 2: Table Of Contents

    AXIS Q180X-LE Bullet Camera Series Table of Contents Installation ..........

  • Page 3: Installation

    AXIS Q180X-LE Bullet Camera Series Installation Installation Preview mode Preview mode is ideal for installers when fine tuning the camera view during the installation. No login is required to access the camera view in preview mode. It is available only in factory defaulted state for a limited time from powering up the device.

  • Page 4: Get Started

    Get started Find the device on the network To find Axis devices on the network and assign them IP addresses in Windows®, use AXIS IP Utility or AXIS Device Manager. Both applications are free and can be downloaded from axis.com/support.

  • Page 5: Verify That No One Has Tampered With The Firmware

    Verify that no one has tampered with the firmware To make sure that the device has its original Axis firmware, or to take full control of the device after a security attack: 1. Reset to factory default settings. See Reset to factory default settings on page 62.

  • Page 6: Configure Your Device

    AXIS Q180X-LE Bullet Camera Series Configure your device Configure your device Basic settings Set the capture mode 1. Go to Video > Installation > Capture mode. 2. Click Change. 3. Select a capture mode and click Save and restart. See also Capture modes on page 52.
  • Page 7 AXIS Q180X-LE Bullet Camera Series Configure your device Select the same frequency as the power line frequency. • To lock the current exposure settings, select Hold current. Benefit from IR light in low-light conditions by using night mode Your camera uses visible light to deliver color images during the day. But as the visible light diminishes, color images become less bright and clear.
  • Page 8 AXIS Q180X-LE Bullet Camera Series Configure your device Reduce motion blur in low-light conditions To reduce motion blur in low-light conditions, adjust one or more of the following settings in Video > Image > Exposure: • Move the Blur-noise trade-off slider toward Low motion blur.
  • Page 9 Use corridor format to better utilize the full field of view in a long and narrow area, for example a staircase, hallway, road, or tunnel. 1. Depending on your device, turn the camera or the 3-axis lens in the camera 90° or 270°.
  • Page 10 AXIS Q180X-LE Bullet Camera Series Configure your device 2. If the device doesn’t have automatic rotation of the view, go to Video > Installation. 3. Rotate the view 90° or 270°. Verify the pixel resolution To verify that a defined part of the image contains enough pixels to, for example, recognize license plates, you can use the pixel counter.

  • Page 11: View And Record Video

    AXIS Q180X-LE Bullet Camera Series Configure your device 5. To change the color for all privacy masks, click Privacy masks and select a color. See also Privacy masks on page 52 Show an image overlay You can add an image as an overlay in the video stream.
  • Page 12 AXIS Q180X-LE Bullet Camera Series Configure your device Select the Zipstream Strength that you want to use. Turn on Optimize for storage. This can only be used if the VMS supports B-frames. Turn on Dynamic FPS. Turn on Dynamic GOP and set a high Upper limit GOP length value.

  • Page 13: Set Up Rules For Events

    AXIS Q180X-LE Bullet Camera Series Configure your device 2. Use AXIS Camera Station (5.46 or later) or another compatible video management software to record video. For instructions, see the AXIS Camera Station user manual. 3. Export the recorded video. 4. Use AXIS File Player to play the video. Download AXIS File Player.
  • Page 14 Before you start: • Make sure you have an SD card installed. Make sure that AXIS Object Analytics is running: 1. Go to Apps > AXIS Object Analytics. 2. Start the application if it is not already running. 3. Make sure you have set up the application according to your needs.
  • Page 15 AXIS Q180X-LE Bullet Camera Series Configure your device 4. Choose text size and appearance. 5. To position the text overlay, click and select an option. Create a rule: 1. Go to System > Events and add a rule. 2. Type a name for the rule.

  • Page 16: Audio

    Connect to a network speaker Network speaker pairing allows you to use a compatible Axis network speaker as if it is connected directly to the camera. Once paired, the speaker acts as an audio out device where you can play audio clips and transmit sound through the camera.

  • Page 17: The Web Interface

    AXIS Q180X-LE Bullet Camera Series The web interface The web interface To reach the device’s web interface, type the device’s IP address in a web browser. Note Support for the features and settings described in this section varies between devices. This icon indicates that the feature or setting is only available in some devices.

  • Page 18: Video

    Shows what kind of access to the device that is active, and what encryption protocols are in use. Recommendations to the settings are based on the AXIS OS Hardening Guide. Hardening guide: Link to AXIS OS Hardening guide where you can learn more about cybersecurity on Axis devices and best practices.
  • Page 19 AXIS Q180X-LE Bullet Camera Series The web interface Click to play the live video stream. Click to freeze the live video stream. Click to take a snapshot of the live video stream. The file is saved in the ‘Downloads’ folder on your computer. The image file name is [snapshot_YYYY_MM_DD_HH_MM_SS.jpg].
  • Page 20 AXIS Q180X-LE Bullet Camera Series The web interface • Video format: Select the encoding format to use in the live view. • Client stream information: Turn on to show dynamic information about the video stream used by the browser that shows the live video stream.
  • Page 21 AXIS Q180X-LE Bullet Camera Series The web interface Note In cold environments, it can take several minutes for the zoom and focus to become available. Image correction Important We recommend you not to use multiple image correction features at the same time, since it can lead to performance issues.
  • Page 22 AXIS Q180X-LE Bullet Camera Series The web interface The image before and after it has been straightened. Image Appearance Scene profile : Select a scene profile that suits your surveillance scenario. A scene profile optimizes image settings, including color level, brightness, sharpness, contrast, and local contrast, for a specific environment or purpose.
  • Page 23 AXIS Q180X-LE Bullet Camera Series The web interface Sharpness: Use the slider to make objects in the image appear sharper by adjusting the edge contrast. If you increase the sharpness, it may increase the bitrate and the amount of storage space needed as well.
  • Page 24 • Move the slider towards Dark to increase the threshold for the IR-cut filter. The camera changes to night mode later. IR light If your device doesn’t have built-in illumination, these controls are only available when you connect a supporting Axis accessory. Allow illumination: Turn on to let the camera use the built-in light in night mode.
  • Page 25 AXIS Q180X-LE Bullet Camera Series The web interface Exposure Select an exposure mode to reduce rapidly changing irregular effects in the image, for example, flicker produced by different types of light sources. We recommend you to use the automatic exposure mode, or the same frequency as your power network.
  • Page 26 AXIS Q180X-LE Bullet Camera Series The web interface Max gain: Select the suitable max gain. If you increase the max gain, it improves the visible level of detail in dark images, but also increases the noise level. More noise can also result in increased use of bandwidth and storage. If you set the max gain to a high value, images can differ a lot if the light conditions are very different from day to night.
  • Page 27 Zipstream is a bitrate reduction technology, optimized for video surveillance, that reduces the average bitrate in an H.264 or H.265 stream in real time. Axis Zipstream applies a high bitrate in scenes where there are multiple regions of interest, for example, in scenes with moving objects.
  • Page 28 AXIS Q180X-LE Bullet Camera Series The web interface • Average: Select to automatically adjust the bitrate over a longer time period and provide the best possible image quality based on the available storage. Click to calculate the target bitrate based on available storage, retention time, and bitrate limit.

  • Page 29: Audio

    AXIS Q180X-LE Bullet Camera Series The web interface : Select the position of the overlay in the image. View areas : Click to create a view area. Click the view area to access settings. Name: Enter a name for the view area. The maximum length is 64 characters.

  • Page 30: Recordings

    AXIS Q180X-LE Bullet Camera Series The web interface Audio enhancement Input Ten Band Graphic Audio Equalizer: Turn on to adjust the level of different frequency bands within an audio signal. This feature is for advanced users with audio configuration experience.

  • Page 31: Apps

    • Activate license with a key: If the app requires a license, you need to activate it. Use this option if your device doesn’t have internet access. If you don’t have a license key, go to axis.com/products/analytics. You need a license code and the Axis product serial number to generate a license key.
  • Page 32 AXIS Q180X-LE Bullet Camera Series The web interface Note We recommend you synchronize the device’s date and time with an NTP server. Synchronization: Select an option for the device’s date and time synchronization. • Automatic date and time (manual NTS KE servers): Synchronize with the secure NTP key establishment servers connected to the DHCP server.
  • Page 33 AXIS Q180X-LE Bullet Camera Series The web interface Note If DHCP isn’t available and the device uses a static address fallback, the static address is configured with a limited scope. IPv6 Assign IPv6 automatically: Select to turn on IPv6 and to let the network router assign an IP address to the device automatically.
  • Page 34 Authentication failed: Sends a trap message when an authentication attempt fails. Note All Axis Video MIB traps are enabled when you turn on SNMP v1 and v2c traps. For more information, see AXIS OS Portal > SNMP. • v3: SNMP v3 is a more secure version, which provides encryption and secure passwords. To use SNMP v3, we...
  • Page 35 • Secure keystore: Select to use Secure element or Trusted Platform Module 2.0 to securely store the private key. For more information on which secure keystore to select, go to help.axis.com/en-us/axis-os#cryptographic-support. • Key type: Select the default or a different encryption algorithm from the drop-down list to protect the certificate.
  • Page 36 To install test firmware or other custom firmware from Axis on the device, you need a custom-signed firmware certificate. The certificate verifies that the firmware is approved by both the device owner and Axis. The firmware can only run on a specific device which is identified by its unique serial number and chip ID.
  • Page 37 AXIS Q180X-LE Bullet Camera Series The web interface Add account: Click to add a new account. You can add up to 100 accounts. Account: Enter a unique account name. New password: Enter a password for the account. Passwords must be 1 to 64 characters long. Only ASCII printable characters (code 32 to 126) are allowed in the password, for example, letters, numbers, punctuation, and some symbols.
  • Page 38 AXIS Q180X-LE Bullet Camera Series The web interface A rule defines the conditions that triggers the product to perform an action. The list shows all the currently configured rules in the product. Note You can create up to 256 action rules.
  • Page 39 RSA is the preferred method during negotiation, followed by ECDSA, ED25519, and DSA. Make sure to enter the right MD5 host key that is used by your SFTP server. While the Axis device supports both MD5 and SHA-256 hash keys, we recommend using SHA-256 due to stronger security over MD5. For more information on how to configure an SFTP server with an Axis device, go to the AXIS OS Portal.
  • Page 40 IoT integration and is used in a wide variety of industries to connect remote devices with a small code footprint and minimal network bandwidth. The MQTT client in Axis device firmware can simplify integration of data and events produced in the device to systems which are not video management software (VMS).
  • Page 41 AXIS Q180X-LE Bullet Camera Series The web interface ALPN is a TLS/SSL extension that allows for the selection of an application protocol during the handshake phase of the connection between the client and server. This is used to enable MQTT traffic over the same port that is used for other protocols, such as HTTP.
  • Page 42 AXIS Q180X-LE Bullet Camera Series The web interface The Last Will Testament (LWT) lets a client provide a testament along with its credentials when connecting to the broker. If the client disconnects ungracefully at some point later (maybe because his power source died), it can let the broker deliver a message to other clients.
  • Page 43 DNS. Windows SMB/CIFS names are not supported. • Network share: Enter the name of the shared location on the host server. Several Axis devices can use the same network share since each device gets its own folder.
  • Page 44 AXIS Q180X-LE Bullet Camera Series The web interface Important Risk of data loss and corrupted recordings. Do not remove the SD card while the device is running. Unmount the SD card before you remove it. Unmount: Click to safely remove the SD card.
  • Page 45 When you create an ONVIF account, you automatically enable ONVIF communication. Use the account name and password for all ONVIF communication with the device. For more information see the Axis Developer Community at axis.com. Add accounts: Click to add a new ONVIF account.
  • Page 46 AXIS Q180X-LE Bullet Camera Series The web interface Update account: Edit the account properties. Delete account: Delete the account. You can’t delete the root account. ONVIF media profiles An ONVIF media profile consists of a set of configurations that you can use to change media stream settings. You can create new profiles with your own set of configurations or use preconfigured profiles for a quick setup.
  • Page 47 AXIS Q180X-LE Bullet Camera Series The web interface Producer: The app that produces the metadata. Below the app is a list of the types of metadata the app streams from the device. Channel: The channel that the app uses. Select to enable the metadata stream. Deselect for compatibility or resource management reasons.
  • Page 48 AXIS Q180X-LE Bullet Camera Series The web interface Power settings Delayed shutdown : Turn on if you want to set a delay time before the power turns off. Delay time : Set a delay time between 1 and 60 minutes.
  • Page 49 Pairing Pairing allows you to use a compatible Axis network speaker or microphone as if it’s part of the camera. Once paired, the network speaker acts as an audio out device where you can play audio clips and transmit sound through the camera. The network microphone will take up sounds from the surrounding area and make it available as an audio input device, usable in media streams and recordings.

  • Page 50: Maintenance

    Severity: Select which messages to send when triggered. CA certificate set: See the current settings or add a certificate. Plain config Plain config is for advanced users with experience of Axis device configuration. Most parameters can be set and edited from this page. Maintenance Restart: Restart the device.
  • Page 51 Note All Axis device firmware is digitally signed to ensure that you only install verified firmware on your device. This further increases the overall minimum cybersecurity level of Axis devices. For more information, see the white paper “Signed firmware, secure boot, and security of private keys” at axis.com.

  • Page 52: View Area

    Capture modes What capture mode to choose depends on the requirements for the frame rate and resolution of the specific surveillance setup. For specifications about available capture modes, see the product’s datasheet at axis.com. Privacy masks A privacy mask is a user-defined area that covers a part of the monitored area. In the video stream, privacy masks appear either as blocks of solid color or with a mosaic pattern.
  • Page 53 H.264 or MPEG-4 Part 10/AVC Note H.264 is a licensed technology. The Axis product includes one H.264 viewing client license. To install additional unlicensed copies of the client is prohibited. To purchase additional licenses, contact your Axis reseller. H.264 can, without compromising image quality, reduce the size of a digital video file by more than 80% compared to the Motion JPEG format and by as much as 50% compared to older MPEG formats.
  • Page 54 AXIS Q180X-LE Bullet Camera Series Learn more Maximum bitrate (MBR) Maximum bitrate lets you set a target bitrate to handle bitrate limitations in your system. You might see a decline in image quality or frame rate as the instantaneous bitrate is kept below the specified target bitrate. You can choose to prioritize either image quality or frame rate.

  • Page 55: Applications

    AXIS Object Analytics AXIS Object Analytics is an analytic application that comes preinstalled on the camera. It detects objects that move in the scene and classifies them as, for example, humans or vehicles. You can set up the application to send alarms for different types of objects. To find out more about how the application works, see AXIS Object Analytics user manual.
  • Page 56 The device ID is securely and permanently stored in the secure keystore as a certificate signed by Axis root certificate. The device ID can be leveraged by the customer’s IT infrastructure for automated secure...

  • Page 57: Specifications

    AXIS Q180X-LE Bullet Camera Series Specifications Specifications Product overview Mounting bracket Connection lid Camera unit RJ45 network connector (PoE IN) RJ45 network connector (PoE OUT) Part number (P/N) and serial number (S/N) I/O connector...

  • Page 58: Led Indicators

    Don’t remove the SD card while the product is running. This device supports microSD/microSDHC/microSDXC cards. For SD card recommendations, see axis.com. microSD, microSDHC, and microSDXC Logos are trademarks of SD-3C LLC. microSD, microSDHC, microSDXC are trademarks or registered trademarks of SD-3C, LLC in the United States, other countries or both.
  • Page 59 AXIS Q180X-LE Bullet Camera Series Specifications Connectors Network connector RJ45 Ethernet connector with Power over Ethernet Plus (PoE+). Audio connector • Audio in – 3.5 mm input for a mono microphone, or a line-in mono signal (left channel is used from a stereo signal).
  • Page 60 AXIS Q180X-LE Bullet Camera Series Specifications Example DC ground DC output 12 V, max 50 mA I/O configured as supervised input I/O configured as output Power connector 2-pin terminal block for DC power input. Use a Safety Extra Low Voltage (SELV) compliant limited power source (LPS) with either...

  • Page 61: Cleaning Recommendations

    AXIS Q180X-LE Bullet Camera Series Cleaning recommendations Cleaning recommendations If the device gets grease stains or becomes heavily soiled, you can clean it with mild, solvent-free soap or detergent. NOTICE TICE TICE Never use harsh detergent, for example gasoline, benzene, or acetone.

  • Page 62: Troubleshooting

    Using firmware from the active track is recommended if you want to access the newest features, or if you use Axis end-to-end system offerings. The LTS tracks are recommended if you use third-party integrations, which are not continuously validated against the latest active track.

  • Page 63: Upgrade The Firmware

    3. Go to Maintenance > Firmware upgrade and click Upgrade. When the upgrade has finished, the product restarts automatically. You can use AXIS Device Manager to upgrade multiple devices at the same time. Find out more at axis.com/products/axis-device-manager. Technical issues, clues, and solutions If you can’t find what you’re looking for here, try the troubleshooting section at axis.com/support.
  • Page 64 IP addresses obtained from a DHCP server are dynamic and may change. If the IP address has been changed by DHCP changed, use AXIS IP Utility or AXIS Device Manager to locate the device on the network. Identify the device using its model or serial number, or by the DNS name (if the name has been configured).

  • Page 65: Performance Considerations

    Heavy network utilization due to poor infrastructure affects the bandwidth. • Viewing on poorly performing client computers lowers perceived performance and affects frame rate. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the frame rate and the general performance. Contact support Contact support at axis.com/support.
  • Page 66 User manual Ver. M1.15 AXIS Q180X-LE Bullet Camera Series Date: December 2023 © Axis Communications AB, 2023 Part no. T10191579...
