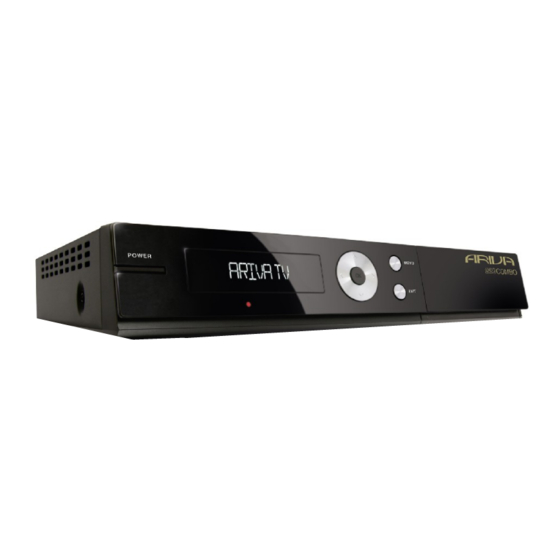

Ferguson Ariva 220 Combo User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User manual
Ariva 220 Combo
English

Advertisement

Table of Contents
loading

Related Manuals for Ferguson Ariva 220 Combo

Summary of Contents for Ferguson Ariva 220 Combo

  • Page 1 User manual Ariva 220 Combo English...
  • Page 2 WARNING !!! Ferguson satellite receivers support recording on external hard disk drives (HDDs) and flash memories (pendrives). In all instances, the correct operation of the recording function depends on the type of connected memory! You must read the following limitations.

  • Page 3: Table Of Contents

    Table of contents SAFETY MEASURES........................5 DOWNLOADABLE SOFTWARE......................5 ABOUT THE INSTRUCTION MANUAL....................6 MARKINGS AND SIGNS APPLIED TO THE RECEIVER................6 BASIC INFORMATION ABOUT THE RECEIVER..................7 1. Main features........................7 2. Contents of box........................7 3. Important instructions concerning handling of the receiver............7 4. Remote control........................8 4.1 Installation of batteries....................9 5.
  • Page 4 15.1 Storage info.......................30 15.2 DVR configuration.......................31 15.3 Timer settings......................31 15.4 Media Player.......................32 Music...........................32 Web radio........................32 Photos..........................33 Video...........................33 Recordings........................34 15.5 Safe removal of a USB device..................34 16. Edit channels........................35 16.1 TV channels list......................35 How do I move a channel?....................35 How do I delete a channel?....................36 How do I add to the group of favourites?................36 How do I change a channel name?..................37 16.2 Radio channel list......................38...

  • Page 5: Safety Measures

    • DOWNLOADABLE SOFTWARE Ferguson has taken every effort to provide users with software updates in order to ensure that the parameters of the satellite television receiver are up to date. Ferguson reserves itself the right to amend, change or modify the software used in the satellite television receiver as it shall choose and without prior notification.

  • Page 6: About The Instruction Manual

    Ferguson has made every effort to provide the most current information about its products. Ferguson does not grant any guarantee as to the contents of the present instruction manual and disclaims any implied guarantees concerning market value or suitability for specific purposes.

  • Page 7: Basic Information About The Receiver

    BASIC INFORMATION ABOUT THE RECEIVER 1. Main features Reception of high definition channels ✔ Scaling of PAL signals to a resolution of 720p or 1080i ✔ Availability of 32 programmable timers ✔ Separate lists of favourite, TV and Radio channels ✔...

  • Page 8: Remote Control

    4. Remote control Due to the standardization of Ferguson equipment, the majority of these devices use the same remote control unit, i.e. RCU640. This means that not all keys are used by this equipment model!! The universal 4-in-1 RCU640 remote control unit can be used to operate any television set (TV), Ferguson satellite receivers (STB), the Ferguson AV-770 amplituner (AMP), and Ferguson DVD players (DVD).

  • Page 9: Installation Of Batteries

    4.1 Installation of batteries Remove the cover of the battery compartment on the rear panel of the remote control unit; slide it downwards and put it aside. Insert two AAA (R03) batteries into the compartment, observing the indicated polarity. Do not mix old and new batteries, or batteries of different types.

  • Page 10: Rear Panel

    6. Rear panel LOOP OUT: Output of the signal from the converter to another satellite receiver. LNB IN: Input of the concentric cable from the converter. HDMI: Digital image and sound output. LAN: The Ethernet port used for communication over the LAN network/Internet.

  • Page 11: Connecting An Antenna System With A Positioner

    Ferguson receiver. In order to connect an antenna system to a USALS positioner, you should connect the positioner out to the LNB IN of the Ferguson receiver. The role of the positioner installed between the mast and the antenna is to turn the bowl in such a way as to ensure that it is directed to various satellite positions.

  • Page 12: Connecting The Satellite Receiver

    9. Connecting the satellite receiver The following illustrations show cable connections for a television and other devices connected with the receiver. If you require any assistance in connecting individual devices, contact your local technician. Before connecting or altering cabling, disconnect the receiver from the mains !!! 9.1 Connection by means of an HDMI cable (recommended) 1.

  • Page 13: Connection By Means Of The Yprpb (Component) Sockets

    9.2 Connection by means of the YPrPb (component) sockets 1. Connect the antenna to the LNB IN socket of the receiver. 2.Connect the video and audio by means of five cinch cables to the television set. Three cables, coloured green, blue and red, are used to send the three colour components.

  • Page 14: Connect Composite Port

    9.4 Connect composite port 1. Connect LNB IN port on a receiver to a satellite dish. 2. Connect the video and audio by means of three cinch cables to the television set. One cable, colored yellow used to send video. The two remaining cable, red and white, are used to connect sound (right and left channel).

  • Page 15: Connection Of An External Memory

    9.6 Connection of an external memory 1. The receiver supports all types of hard disk drives in housings that are equipped with an independent power supply. The sole condition is that the hard disk has to have a single basic partition that is formatted in the NTSF (recommended) or FAT32 system. 2.We recommend that you regularly archive data on your PC computer.

  • Page 16: Connection To The Lan Local Network

    9.8 Connection to the LAN local network In order to connect the receiver to a local network, use an RJ45 cable. We recommend that you restart the receiver whenever the network settings are changed. 9.9 Connection to the computer by means of an RS232 Null Modem cable For connection to a computer, use a Null Modem cable.

  • Page 17: First Steps

    FIRST STEPS 1. Insert the plug of the receiver and other additional devices to a wall socket. 2. Select AV signal source of your television set. 3. The satellite receiver is supplied with reinstalled television channels. In order to watch other, i.e.

  • Page 18: Main Menu

    10. Main menu Press the MENU button on the remote control in order to display the following main menu, which contains six items: 1. editing channel lists 2. installation 3. system settings 4. tools 5. games 6. recording settings 11. Installation The installation menu is used to set antenna installation parameters and to search for channels on a satellite.

  • Page 19: Antenna Setup

    11.3 Antenna setup This menu is used to set detailed operating parameters for previously selected satellites, depending on your antenna system. Select a satellite by pressing the left/right arrow keys. Only satellites marked on the list of satellites will be available. Now select the converter type (usually, you do not have to change this option and may leave it set to "universal").

  • Page 20: Single Satellite Search

    11.4 Single satellite search In this menu you can search for channels from one selected satellite. To this end, select a satellite by pressing the left/right arrow keys. Only satellites marked on the list of satellites will be available. Next, select whether you want to search only for free to air channels or for all channels, or for radio channels, television channels, or all channels.

  • Page 21: List Of Transponders

    11.6 List of transponders Channels on satellites are located in "sets". Such a "set" of channels comprises a transponder. A list of transponders is a list of frequencies available on a given satellite. In this menu you can edit, add and remove individual frequencies. Select a satellite by pressing the left/right arrow keys, and the desired frequency using the up/down arrow keys.

  • Page 22: Terrestrial Automatic Scan

    11.7 Terrestrial Automatic Scan In this menu, you can search for channels automatically - the receiver searches only frequency by frequency according to the saved list of DVB-T. This list can not be edited in a separate menu. 11.8 Terrestrial Manual Scan There are two search options manually.

  • Page 23: System Settings

    12. System settings 12.1 Language This menu is used to define the language in which the receiver's menu is displayed. The preferred and second language options refer to audio soundtracks. If a given channel supports more than one audio soundtrack, the receiver will by default search for soundtracks in the selected languages in this order.

  • Page 24: Display Setting

    12.3 Display setting This menu is used to adjust the image displayed by the receiver. You can change the brightness, contrast and colour saturation. By default, all of these values are set to 50. 12.4 Local time settings This menu is used to set the time and date. The receiver can automatically download the time and date from the satellite (recommended), or you may set the time and date manually.

  • Page 25: Parental Lock

    12.5 Parental lock In this menu you may specify whether the receiver is to use a parental block or not. In addition, you can turn on or off the password protection function for selected menu options and change the default password. The default password is four zeros: 0000. 12.6 OSD settings In this menu you can define the basic parameters of the on-screen menu (OSD).

  • Page 26: Other

    12.8 Other In this menu you can change the remaining options, such as the power supply of the tuners, select the types of channels played, and how the receiver is to behave when switching channels. Clock In Standby enables or disables the clock on the front panel display in standby mode. Note: only if the clock in standby mode is off the receiver draws less than 1W of energy!!! Radio Equalizer enables or disables the audio graphic equalizer display while listening to...

  • Page 27: Tools

    13. Tools 13.1 Information In this menu you can obtain detailed information about your software version. The software structure is divided into a number of independent databases. The most important of these from the point of view of the user is the userdb, which archives current settings and channel lists. The receiver's software version is a symbol placed next to maincode.

  • Page 28: Upgrade By Ota

    13.4 Upgrade by OTA This function is used to update receiver by OTA directly from the operator signal . This feature will only work if the operator will make it available and give the specific parameters of the update. 13.5 Conditional access In this menu you can obtain additional information about the subscriber's card in the card reader.

  • Page 29: Local Network Settings

    13.7 Local network settings This menu serves to configure addresses and DNS servers. These options concern the Ethernet port, which enables the exchange of data over the network. 13.8 Upgrade by network The receiver allows you to update software over the Internet. Detailed information about current connection parameters can be found on the manufacturer's website.

  • Page 30: Games

    14. Games The receiver has three factory-installed games: Tetris (classic arranging of successive levels using blocks of various shapes). • Othello (a logical game, which consists in the placement of your colour on a board and • changing your opponent's colour; the person whose colour dominates, wins). Sudoku (the game consists in completing diagrams with numbers from 1 to 9 in such a •...

  • Page 31: Dvr Configuration

    15.2 DVR configuration In this menu you can adapt preferences concerning recording to an external USB memory device. In the first option you decide whether you want to use the time shift option. This mode makes it possible to stop the current transmission at any moment by pressing the PAUSE button and resume it after a break by pressing the PLAY button.

  • Page 32: Media Player

    Select the event that you want to programme and press OK. Set the timer activation frequency. Select the channel (press OK to display the simplified channel list). Next set the date, start time and duration. Select ‘record’ to return to the events list. A new item has been added. 15.4 Media Player The receiver is equipped with a simple multimedia player.

  • Page 33: Photos

    Internet radio playback depends on network connection speed and stability. Note that some of the servers can be full when trying to access them, in this case radio will not be played. The maximum number of simultaneous listeners allowed depend on server settings.

  • Page 34: Recordings

    Recordings This tab is used to play back recordings made using the receiver. Each recording may be blocked by a password, deleted, or its name changed. Options available during playback (subtitles, teletext, audio soundtracks) depend on the selected recording format!!! During playback, press the INFO button in order to display the information bar.

  • Page 35: Edit Channels

    16. Edit channels 16.1 TV channels list In this menu you can edit the list of television channels. Editing is effected by means of the coloured buttons on the remote control unit. The raised colour function is active - select OK on the selected channel in order to use it.

  • Page 36: How Do I Delete A Channel

    How do I delete a channel? Proceed to the editing of channel lists. Select a channel and press OK in order to see a preview in a small window. Press the blue button in order to pass to the channel edition menu. Press the blue button in order to switch on the channel delete function and OK on the channel that you want to remove.

  • Page 37: How Do I Change A Channel Name

    How do I change a channel name? Proceed to the editing of channel lists. Select a channel and press OK in order to see a preview in a small window. Press the blue button in order to pass to the channel edition menu. Press the green button in order to switch on the channel name change function.

  • Page 38: Radio Channel List

    16.2 Radio channel list In this menu you can edit the list of radio channels. Editing is effected by means of the coloured buttons on the remote control unit. The raised colour function is active - select OK on the selected channel in order to use it.

  • Page 39: Basic Functions Supported By The Remote Control

    In order to change a name, select the favourites group and press OK. Next use the numerical and coloured buttons to input the name. Confirm the changes by pressing the yellow button on the remote control. 17. Basic functions supported by the remote control 17.1 EPG This function displays a programme guide.

  • Page 40: Txt - Teletext

    17.3 TXT - teletext This function displays the teletext, provided that it is broadcast by the selected television station. Keep in mind that correct code page (diacritical marks) displayed depending on the language settings made in the language settings menu! 17.4 AUDIO The green audio button displays a window with available audio soundtracks.

  • Page 41: Rec - Recording

    17.6 REC - recording This function is available only when an external USB memory device is correctly connected!!! ● 1. Select a channel and press the REC button. The present channel will now be recorded. 2. If you press the REC button again, a list of options will be displayed, where you can determine the duration of the recording (by default, this is 2 hours).

  • Page 42: Pause - Time Shift

    From the moment you switch on the time shift mode, the Ferguson receiver will constantly record the signal from the satellite in a buffer. The buffer is created automatically on the external USB memory device.

  • Page 43: Info

    Recording the time shift buffer 1. This option is available only if previously switched on in the receiver's menu. 2. Switch on the time shift mode by pressing PAUSE. 3. Press REC in order to record the existing buffer and continue recording the channel.

  • Page 44: Attachment A - Glossary Of Terms

    ATTACHMENT A - GLOSSARY OF TERMS Pay-TV – Pay-per-view digital television, to which only subscribers have access. The service is provided by satellite, cable, over the CA - Conditional Access – a coding system ground or through the network. used in order to protect transmitted data against unauthorised access.

  • Page 45: Attachment B - Using The Universal Rcu-640 Version 2 Remote Control

    ATTACHMENT B – Using the universal RCU-640 version 2 remote control Setup TV via brand name search 1. Switch on the TV for which you wish to use the remote control. 2. Point the remote control at the TV. Press and hold down the TV and POWER button for three seconds. Then release buttons.
  • Page 46 1. Switch on the TV for which you wish to use the remote control. 2. Find the code number of your TV brand in the code list (e.g. LG 0009; 0051; 0059; …). 3. Press TV button for three seconds The POWER button on your remote control lights up, i.e. RCU640 is in set-up mode.
  • Page 47 3. Press any button on RCU-640 which you want to learn a new code from original remote control, (For example, you choose  button) now LED starts to flashing and RCU-640 is under learning status. 4. Press the one button (for example,  button) from your TV original remote control. When POWER button on RCU-640 flashes three times and stop, it means RCU-640 has accepted new code and now you can start to learn another new code from original TV remote.

  • Page 48: Tv Brand Codes Rcu-640 Version 2

    0000 0007 DAYTON 0746 0169 0245 0009 FENNER ALKOS 0026 DAYTRON 0009 0115 0164 0245 FERGUSON ALLORGAN 0011 0050 0052 0079 0100 0111 0127 0163 0026 0157 BUSH 0042 0169 ALLSTAR 0009 0011 0024 0027 0028 0051 0062 DE GRAAF FIDELITY...
  • Page 49 0009 0031 0143 MANDOR 0031 0141 0011 0002 NORDMENDE GRANADA 0009 0086 0169 0245 MANESTH 0000 0024 0045 0046 0051 0111 0126 0004 0006 0016 0027 0031 0040 0043 JACKTOP 0002 0028 0051 0169 0127 0139 0719 0051 0054 0064 0123 0127 0169 0073 MARANTZ NORDVISION...
  • Page 50 PROSONIC 0164 0105 0111 0126 0127 0139 0163 0190 YORX 0015 0042 0068 0107 0169 0245 SHARP TELETECH 0011 PROTECH 0001 0027 0029 0065 0099 0141 0187 0009 0113 0169 ZANUSSI 0002 0009 0014 0051 0113 0169 SHORAI TELETON 0157 PROVIEW 0026 0157...

  • Page 51: Specification

    SPECIFICATION Main Features STB Type DVBS/S2/T Combo Receiver Main Chipset ALI 3602B Special Features Encrypt ASIC Type TUNER Type DVBS2 HALF NIM Tuner and DVBT On board Tuner Demodulator Type ALI3501,ALI3100 SMPS Type Separate SMPS Mechanical Dimension W 26 cm D 21 cm H 5 cm ：...
  • Page 52 Aspect Ratio 4:3, 16:9 Video Resolution 1920×1080,1280×720,720×480 Audio Decode MPEG-1 layerI/II, PCM downmix, IEC958 SPDIF, Dolby 5.1 Audio Decode channel, Dolby downmix 2 channel, Dolby Prologic2 Sampling Frequency 32KHz, 44.1KHz, 48KHz AV Output Video Bandwidth SD:5.0MHz(-3dB),HD:30MHz(-3dB) Video Impedance 75Ω Video Voltage Level 1.0 Vp-p Audio Freq.
