Single head system

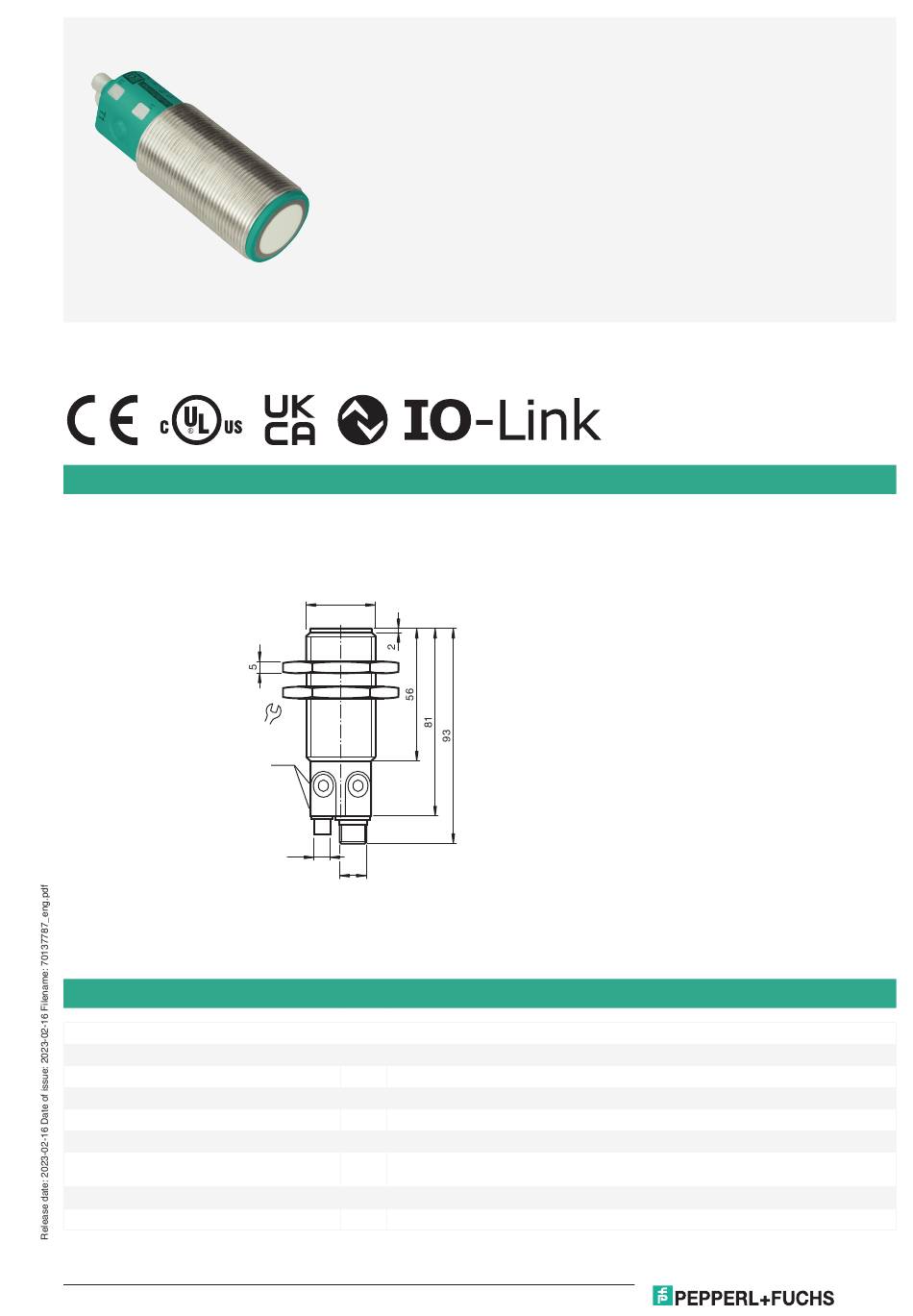

Dimensions
Technical Data
General specifications
Sensing range
Adjustment range
Dead band
Standard target plate
Transducer frequency
Response delay
Memory
Non-volatile memory
Refer to "General Notes Relating to Pepperl+Fuchs Product Information".
Pepperl+Fuchs Group
USA: +1 330 486 0001
www.pepperl-fuchs.com
fa-info@us.pepperl-fuchs.com
Ultrasonic sensor
UC2000-30GM-IUEP-IO-V15-Y
<
IO-Link interface for service and process data
<
Programmable via DTM with PACTWARE
<
Switch output and analog output
<
Selectable sound lobe width
<
Synchronization options
<
Temperature compensation
M30 x 1.5
36
LED
T1
T2
ø7
M12
90 ... 2000 mm
120 ... 2000 mm
0 ... 90 mm
100 mm x 100 mm
approx. 200 kHz
minimum : 65 ms
factory setting: 125 ms
EEPROM
Germany: +49 621 776 1111
fa-info@de.pepperl-fuchs.com
Singapore: +65 6779 9091
fa-info@sg.pepperl-fuchs.com
1
Advertisement
Table of Contents
Related Manuals for Pepperl+Fuchs UC2000-30GM-IUEP-IO-V15-Y
Summary of Contents for Pepperl+Fuchs UC2000-30GM-IUEP-IO-V15-Y
- Page 1 Response delay minimum : 65 ms factory setting: 125 ms Memory Non-volatile memory EEPROM Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001 Germany: +49 621 776 1111 Singapore: +65 6779 9091 www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com...
-
Page 2: Technical Data
Compliance with standards and directives Standard conformity Standards EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003 Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001 Germany: +49 621 776 1111 Singapore: +65 6779 9091 www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com fa-info@de.pepperl-fuchs.com... -
Page 3: Connection Assignment
Connection Assignment Wire colors in accordance with EN 60947-5-2 (brown) (white) (blue) (black) (gray) Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001 Germany: +49 621 776 1111 Singapore: +65 6779 9091 www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com fa-info@de.pepperl-fuchs.com... -
Page 4: Characteristic Curve
Analog functions Near trip value Distant trip value Rising ramp Falling ramp Zero point line Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001 Germany: +49 621 776 1111 Singapore: +65 6779 9091 www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com... - Page 5 IO-Link master, supply via USB port or separate power supply, LED indicators, M12 plug for sensor connection ICE2-8IOL-K45P-RJ45 EtherNet/IP IO-Link master with 8 inputs/outputs, DIN rail, push-in connectors Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001 Germany: +49 621 776 1111 Singapore: +65 6779 9091 www.pepperl-fuchs.com...
-
Page 6: Ultrasonic Sensor
1. Briefly press the push button to navigate through the output behaviors in succession. Use this method to choose the required output function. 2. Press and hold the push button for 2 seconds to save the selection and switch to the programming routine for the sound cone. Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group... -
Page 7: Factory Setting
If the option of synchronizing is not used, the synchronization input must be connected to ground (L-) or the sensor must be operated with a V1- connection cable (4-pin). Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group... - Page 8 Driver current according to L+ > n * high level signal/input impedance (n = number of sensors to be synchronized) Driver current according to L- > n * output current (n = number of sensors to be synchronized). Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group...
