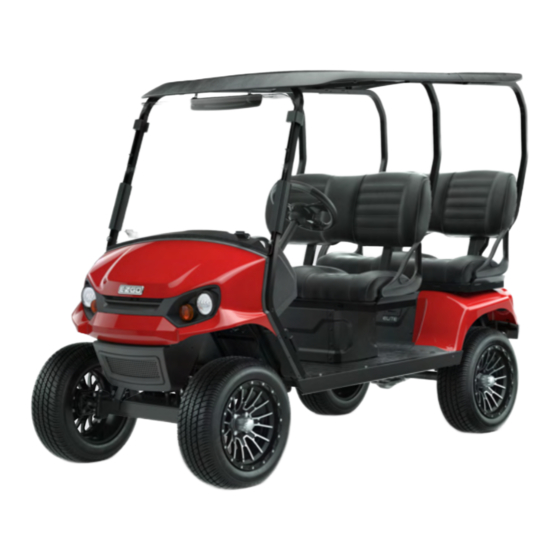

LIBERTY with IntelliBrake™ Technology OWNER’S MANUAL 10049626-A ISSUED JULY 2023 EZGO.com...
Page 3
OWNER’S MANUAL 2024 + MANUFACTURER INFORMATION Textron Specialized Vehicles, Inc. 1451 Marvin Griffin Road Augusta, Georgia, USA 30906-3852 1-800-774-3946 Technical Assistance & Warranty 1-888-438-3946 Service Parts 011-706-798-4311 International www.ezgo.com...
Page 4
WELCOME Thank you for purchasing this vehicle. Before driving your new vehicle, read this owner’s manual to familiarize yourself with safe driving practices, opera- tion, features and controls. This manual contains instructions for minor maintenance only. Information about major repairs can be found in the service manual. Your dealer has thor- ough knowledge of your vehicle and wants your total satisfaction with your purchase.
TABLE OF CONTENTS INTRODUCTION MANUFACTURER’S INTENDED USE ............10 WARRANTY AND REGISTRATION ............10 BATTERY PROLONGED STORAGE ............10 VEHICLE IDENTIFICATION NUMBERS ............ 11 PARTS AND SERVICE MANUALS ............. 11 SAFETY OWNER RESPONSIBILITY................. 13 Unauthorized Use ................. 13 Operating without Instruction ..............13 Alcohol or Drugs ...................
Page 6
TABLE OF CONTENTS SAFETY LABELS OPERATION ....................21 OPERATION (CE)..................22 RUN/TOW SWITCH OPERATION............... 22 PATENT NOTICE ..................22 ELECTRIC SHOCK (CE) ................23 BATTERY WARNING .................. 23 MAINTENANCE TOWING ................23 BRAKE RELEASE ..................23 FEATURES AND CONTROLS KEY SWITCH / DIRECTION SELECTOR............ 25 HEADLIGHT SWITCH .................
Page 7
TABLE OF CONTENTS Burnishing Brakes................. 31 PRE-RIDE INSPECTION ................32 BATTERY CHARGER.................. 32 Off Board Charger ................33 On Board Charger ................33 PERFORMANCE FEATURES ..............34 Speed Control ..................34 Pedal-Up Braking.................. 34 Anti-Stall Feature .................. 34 High Pedal Disable Feature ..............35 Diagnostic Mode Feature..............
Page 8
TABLE OF CONTENTS Lifting Rear ................... 46 Lowering Vehicle .................. 46 VEHICLE CLEANING AND CARE............... 46 Washing the Vehicle ................46 Polishing the Vehicle ................47 TIRES ......................47 Tire Pressure ..................48 Tire Repair .................... 48 Tire Replacement.................. 49 WHEELS ......................
Page 9
TABLE OF CONTENTS TRANSPORTING THE VEHICLE ..............57 Hauling the Vehicle ................57 Towing the Vehicle ................58 Manual Release of IntelliBrake™............58 VEHICLE SPECIFICATIONS LIBERTY ...................... 61 MAINTENANCE LOG RECORDS ....................63 APPENDIX QUIQ CHARGER ..................67...
Page 10
TABLE OF CONTENTS This page intentionally left blank.
Page 11
INTRODUCTION INTRODUCTION The following symbols appear throughout this manual and on vehicle labels. Your safety is involved when these symbols are used. Become familiar with their meanings before reading the manual. DANGER indicates a hazardous situation that, if not avoided, WILL result in death or serious injury. WARNING indicates a hazardous situation that, if not avoided, COULD result in death or serious injury.
It can also be obtained from your dealer Register your new vehicle at www.ezgo.com. Use Original Equipment Manufacturer (OEM) approved parts to keep the vehicle warranty effective.
INTRODUCTION VEHICLE IDENTIFICATION NUMBERS FRAME VIN PLATE PART A PART B PART C Record the vehicle identification numbers in the spaces provided below. These identification numbers are required when ordering parts. Vehicle Model Number Frame PIN PARTS AND SERVICE MANUALS The following manuals can be purchased through your dealer: •...
Page 14
INTRODUCTION This page intentionally left blank.
SAFETY SAFETY OWNER RESPONSIBILITY Improper use, maintenance, or modification of this vehicle can lead to serious injury or death. Require proper use of your vehicle. Do not allow anyone to operate your vehicle or ride as a passenger unless they are properly instructed and you are sure they are willing to ride responsibly.
SAFETY Alcohol or Drugs Operation of the vehicle during or after consuming alcohol or drugs can adversely affect operator judgment, reaction time, balance and perception. Never drink alcohol or use drugs or medications before or during operation of the vehicle. Passengers It is the responsibility of the owner and/or operator to make sure passengers meet the qualifications required to ride in the vehicle.
SAFETY OPERATOR SAFETY Safe and responsible use of this vehicle is necessary to prevent dangerous conditions for the operator, passengers and other people within the area of operation. This section of the manual provides information on safe operation of the vehicle. Make sure to read, understand and comply with all of this infor- mation to decrease the risk of personal injury or death.
SAFETY • Do not exceed cargo or vehicle weight capacities. Do not exceed occupant capacity. See VEHICLE SPECIFICATIONS on page 61 for the vehicle load and seat capacity. • If there is a risk of lightning, leave the vehicle and look for a safe location to wait until the lightning has stopped.
SAFETY MAXIMUM SPEED Maximum speed operation increases the risk of loss of control. • Always drive at a speed that is appropriate for the terrain, visibility, operat- ing conditions, and your skill and experience level. • Use the brake to limit speed and maintain control of the vehicle. TURNING Improper or careless turning can cause loss of traction, loss of control, acci- dent, or rollover.
SAFETY BATTERY CHARGING Charging should be done when ambient temperatures are between 40°F and 110°F (4°C and 42°C). The battery pack can be charged or topped off after every use. The battery management system (BMS) makes sure charging occurs at the proper rate for the battery temperature.
SAFETY Refer to LIFTING THE VEHICLE on page 44 for procedures and additional safety information. VEHICLE MODIFICATION Removing components from the vehicle can change the designed handling characteristics and present a significant safety risk. • Do not install accessories not approved by the manufacturer. •...
Page 22
SAFETY • Wear a face shield when working around battery packs. • Be careful when working around battery packs, using solvents, or com- pressed air. • Use insulated tools within the battery area to prevent blowing the internal BMS fuse. •...
SAFETY LABELS SAFETY LABELS Safety and warning labels are on the vehicle for your protection. Read care- fully and comply with all instructions on the labels. If any label shown in this manual is different from the label on your vehicle, always follow the instruc- tions on the vehicle label.
SAFETY LABELS OPERATION (CE) Located on the dash panel. P/N 651654 RUN/TOW SWITCH OPERATION Located on the run/ tow switch. P/N 10006303 PATENT NOTICE Located inside the 10005569 PATENT NOTICE driver’s side dash This product or components thereof may be covered by storage compart- one of more patents or pending applications.
SAFETY LABELS ELECTRIC SHOCK (CE) Located on the controller splash shield. P/N 71415G01 BATTERY WARNING Located on the battery cover. MAINTENANCE TOWING Located on the bagwell closeout bracket. P/N 10049683 BRAKE RELEASE Located on the bagwell closeout bracket. P/N 609694...
Page 26
SAFETY LABELS This page intentionally left blank.
FEATURES / CONTROLS FEATURES AND CONTROLS Some accessories continue to operate with the key in the NOTICE OFF position. Leaving these accessories activated after the vehicle is shut down can cause battery discharge. KEY SWITCH / DIRECTION SELECTOR The four-position switch controls the basic electrical system of the vehicle. •...
FEATURES / CONTROLS HORN SWITCH The horn switch is the red toggle switch on the console. The horn activates when the top of the switch is pressed. CUP HOLDERS The vehicle has a center cup holder that will accommodate two beverage containers.
FEATURES / CONTROLS BRAKE PEDAL The brake pedal is the left pedal on the floorboard and controls braking Accelerator function. Pedal The brake pedal allows the opera- Brake Pedal tor to slow the speed or bring the vehicle to a complete stop by pressing the pedal.
FEATURES / CONTROLS Side Mirror Windshield Rearview Mirror Canopy Top Hip Restraint REARVIEW MIRROR The optional rearview mirror is mounted to the upper bar of the front strut and can be adjusted for optimum visibility. Adjust mirror before each use for clear rear and side views. Be sure to check blind spots before merging or operating in reverse.
FEATURES / CONTROLS SEATS Each bench seat is designed for two occupants. The seats can be pivoted forward or completely removed to access compo- nents underneath. CANOPY TOP AND WINDSHIELD To prevent damage to the vehicle, do not hold on to the canopy top struts while the vehicle is moving.
Page 32
FEATURES / CONTROLS This page intentionally left blank.
OPERATION OPERATION Some accessories continue to operate with the key in the NOTICE OFF position. Leaving these accessories activated after the vehicle is shut down can cause battery discharge. To prevent damage to the vehicle, do not hold on to the canopy top struts while the vehicle is moving.
OPERATION PRE-RIDE INSPECTION To decrease the risk of an accident, inspect and verify that the vehicle is in safe operating condition before each use. Check the items in the table to help ensure safe and reliable operation. Item Remark Page Battery pack Check charge level.
OPERATION Disconnect the AC plug before you make or break the connections to a battery that is charging. Do not open or disassemble the charger. Do not operate the charger if the AC cord is damaged. All repair work must be done by qualified personnel. Refer to the charger manufacturer User’s Guide for operation, maintenance and troubleshooting information.
OPERATION PERFORMANCE FEATURES The vehicle operates when the run/tow switch is in the NOTICE RUN position. The speed of the motor is sensed and controlled by the controller. Speed Control The speed control system is not an alternative for the brake.
OPERATION Example: If all of the following events occur: • the system senses that the accelerator pedal is pressed (power applied to motor) • the motor is stopped long enough that additional time can cause dam- age to the motor the Anti-Stall feature will interrupt power to the motor.
OPERATION ACCELERATING Practice acceleration and deceleration to become familiar NOTICE with the vehicle’s handling characteristics. Accidental movement of the accelerator pedal can cause the vehicle to suddenly move and cause severe injury or death. Make sure the key is in the OFF position any time the vehicle is parked.
OPERATION DRIVING WITH PASSENGERS • All passengers must fit the vehicle. Passen- gers must be able to: • sit with their back against the seat • have both feet flat on the floor • Do not allow more than three passengers in the vehicle.
OPERATION UPHILL OPERATION When driving up a hill, follow these guidelines: • Avoid excessively steep hills. • Drive straight up the hill. • Drive at a steady rate of acceleration and speed. • Do not drive over the crest of a hill at high speed since there is little or no visibility to what’s on the other side of the hill.
OPERATION PARKING THE VEHICLE To avoid unintentional movement of the vehicle that could result in severe injury, vehicle damage or dam- age to surrounding objects, park the vehicle on a flat surface. If parking on an incline is unavoidable, chock the wheels to keep the vehicle from rolling. When parking the vehicle in cold climates (0°C, 32°F), the NOTICE car should be stored in an enclosed garage.
Page 42
OPERATION • Drive slowly and carefully. Towing may negatively impact vehicle handling, stability, braking, battery range, durability, and performance. Do not tow a trailer more than 19.5 MPH (31.4 km/h). • Towing a load increases braking distances required for slowing or stopping the vehicle.
MAINTENANCE MAINTENANCE To prevent serious injury or death, follow the procedures and comply with the safety information in this section while performing service or maintenance. Use specified tools and safety equipment. Remove all jewelry. Do not allow loose clothing or hair to contact moving parts.
MAINTENANCE To decrease the risk of damage to the controller or motor, move the run/tow switch to the TOW position before towing the vehicle. After connecting a battery or any other wires, wait a minimum of 30 seconds before moving the switch to the RUN position.
Page 45
MAINTENANCE INTERVAL (perform at interval that comes first) ITEM REMARKS PAGE HOURS CALENDAR Headlights and tail- Check operation. Replace LED assem- Pre-ride lights blies as needed. Reverse warning Pre-ride Check operation. alarm Switches Pre-ride Check operation. Fluid leakages Pre-ride Inspect entire vehicle for leaks. Parking brake Check for correct hold on flat ground Pre-ride...
MAINTENANCE RECOMMENDED LUBRICANTS AND FLUIDS Check and lubricate all components at the intervals shown in the SCHED- ULED MAINTENANCE CHART beginning on page 42. Item Capacity Lubricants/Fluids Notes Rear axle oil 25 oz. (0.7 L) Mobil 424 P/N 603967 Rear axle oil 2.0 oz (59 mL) Friction Modifier P/N 611242...
MAINTENANCE The vehicle must be on a firm and level surface. Be constantly aware that the vehicle is not stable during the lifting process. Place jack and jack stands only in areas indicated. Make sure the vehicle is stable on jack stands before getting underneath.
MAINTENANCE Lifting Rear Chock the front wheels to keep the vehicle from rolling forward. Put a jack under the center of the receiver hitch. Raise the vehicle with the jack. Install jack stands under each end of the rear axle. Lower the vehicle until it rests on the jack stands.
MAINTENANCE • Clean the windshield with water and a clean cloth. Remove small scratches with a plastic polish. • Clean the bottom of the vehicle where mud or dirt can collect. Loosen any packed sediment to help with removal. Be careful not to damage the paint. •...
MAINTENANCE Do not use tires with a low rated pressure. Do not use tires that have a recommended tire inflation pressure less than the tire inflation pressure recommended in the following table. Do not over inflate the tires. Excess pressure can cause the tire to separate from the wheel or cause a tire explosion.
MAINTENANCE Tire Replacement Tire replacement requires a tire mounting machine, and must be done by a qualified tire center or an authorized dealer. WHEELS Worn, improperly inflated, improper sized, or incor- rectly installed tires will affect vehicle handling and could cause an accident resulting in severe injury or death.
MAINTENANCE LIGHTS Clean the lights frequently to maximize visibility. Do not operate vehicle at night or in low light if any lights are not properly and fully functioning. Poor lighting reduces visibility that could cause an acci- dent resulting in severe injury or death. Since light components can get hot during operation, allow lights to cool before servicing to prevent burns to the skin.
MAINTENANCE FUSE REPLACEMENT Have the vehicle inspected by your dealer if fuses con- NOTICE tinue to blow after they have been replaced. Lift the rear seat bottom to 58V, 10A Mini Fuse access the PDM. 12V, 20A 32V, 10A Open the PDM to access the Relay Mini Fuse fuses.
MAINTENANCE LUBRICATION Do not use more than three pumps of grease in a grease fitting at any one time. Excess grease can cause grease seals to fail, or allow grease into areas that could damage components. Pumping more than three pumps of grease in a grease fitting could damage grease seals and cause premature bearing failure.
MAINTENANCE Check Brake Fluid Level The brake fluid reservoir is under the cowl at the passen- NOTICE ger’s side front wheel. Park vehicle on a level surface. Check the brake fluid level at the reservoir. The fluid level should be between the upper MAX and lower MIN lines.
MAINTENANCE To prevent the risk of battery explosion, keep all flam- mable materials, open flames or sparks away from the batteries. Do not leave the battery pack near a fire or heat source. Do not throw Lithium-Ion batteries into a fire. Do not apply heat to any part of the battery pack or battery management module with a soldering iron.
MAINTENANCE Do not dispose of Li-ion batteries in household or shop garbage/recycling bins. They can cause fires during transport or at landfills and recyclers. Before recycling or shipping battery pack, make sure that the battery pack terminals are insulated. Always recycle Lithium-ion batteries: •...
MAINTENANCE The storage time for properly charged Lithium-Ion batteries supplied with this vehicle varies based on the ambient temperature. TEMPERATURE LENGTH OF STORAGE TIME -22°F to -4°F One month at 100% battery charge, all accessories turned off. (-30°C to -20°C) -4°F to 113°F Six months at 100% battery charge, all accessories turned off.
MAINTENANCE BATTERY FAULT DIAGNOSIS See APPENDIX for complete charger information. TRANSPORTING THE VEHICLE Do not ride or allow other people on a vehicle being transported on a trailer or being towed with another vehicle. Hauling the Vehicle Loose cargo or vehicle components can fly off when the vehicle is being transported.
MAINTENANCE Towing the Vehicle This vehicle is equipped with an IntelliBrake™ for park- NOTICE ing. When the vehicle is stopped, the parking brake is automatically set. The IntelliBrake™ is released when the vehicle is in F (forward) or R (reverse) and the accelerator is pressed.
Page 61
MAINTENANCE Make sure the key switch is in the OFF position and chock the tires to prevent the vehicle from moving; then do the following: Locate the ‘Auxiliary Power’ line (7) and remove the weather pack seal (8) from the connector. Locate the ‘Primary Power’...
Page 62
MAINTENANCE This page intentionally left blank.
SPECIFICATIONS VEHICLE SPECIFICATIONS LIBERTY Overall Length 106.25 in (270 cm) Overall Width 46 in (117 cm) Overall Height (no Canopy) 52.5 in (133 cm) Overall Height (with Canopy) 75.62 in (192 cm) Wheel Base 77.62 in (197 cm) Front Wheel Track...
Page 64
SPECIFICATIONS Front and Rear Tires Kruizer KF17 23x7.50R14 Frame Welded steel with DuraShield e-coat and powder coat Front Body and Finish Injection Molded TPO Rear Body and Finish Thermoform ABS **Some items shown may be optional equipment**...
APPENDIX APPENDIX QuiQ CHARGER 1 kW Industrial Battery Charger QuiQ Charger - E-Z-GO Product Manual This manual contains important safety and operating instructions for versions of the Delta-Q QuiQ (Model nos. 913-4830-E3/- E3B/-E5 /-E5B) installed on E-Z-GO brand vehicles. Please read this information before using your QuiQ Charger.
Page 70
APPENDIX Delta-Q QuiQ Charger Manual Operating Instructions CAUTION: Charger enclosure may be hot during charging. Use hand protection if handling the charger while charging. Extension cords must be 3-wire cord no longer than 30m(100’) at 10AWG or 7.5m(25’) at 16AWG per UL guidelines. Only connect ONE QuiQ charger to a single 15A circuit or the circuit may become overloaded.
Page 74
State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, wear gloves and wash your hands frequently when servicing your vehicle. For more information go to www.P65Warnings.ca.gov/passenger-vehicle. C O M C U S H M A N . EZGO.com...
