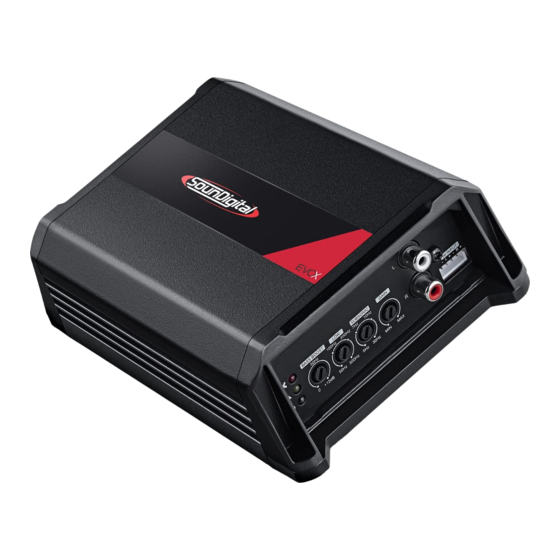

Summary of Contents for Soundigital 800.1 EVOX

  • Page 1 OWNER´S MANUAL 800.1...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Introduction ................................3 Package contents .............................. 3 Safety instructions ............................. 4 Technologies ® DTM ..............................5 I-Power Supply........................... 5 Vibration Absorption System .................... 6 Reduced size ..........................6 Assembling and disassembling the plastic cover ................7 Panels description Audio inputs and controls ....................
  • Page 3: Introduction

    IMPORTANT INFORMATIONS On this manual you will learn about the product, its features and characteristics, in order to obtain the best result and to be able to enjoy your music with SounDigital quality and power. To better understand and take advantage of all the functions of the product and use it safely, read this manual carefully and if you have any questions, consult our support by email info@soundigitalusa.com.
  • Page 4: Safety Instructions

    Wear gloves, safety glasses firmly. Avoid fixing to metallic and all necessary PPE during parts of the vehicle, as this the installation of SounDigital procedure may cause ground amplifiers. looping (noise); THIS "WARNING" SIGN ALERTS THE USER OF IMPORTANT INFO. NOT FOLLOWING THESE INSTRUCTIONS MAY CAUSE INJURIES TO THE USER OR DAMAGE TO THE EQUIPMENT.
  • Page 5: Technologies

    I-POWER SUPPLY I-POWER SUPPLY SounDigital amplifiers are known for their low consumption of battery, and this feature was i m p r o v e d o n t h e E V O X L i n e . T h e n e w...
  • Page 6: Vibration Absorption System

    TECHNOLOGIES VIBRATION ABSORPTION ® SYSTEM - VAS ® Technology reduces all impact caused by vibration on the electronic circuit board. This can include road vibration and even vibration caused by sound waves, increasing the reliability of our amplifiers. REDUCED SIZE 4.8"...
  • Page 7: Assembling And Disassembling The Plastic Cover

    ASSEMBLING AND DISASSEMBLING THE PLASTIC COVER The plastic covers are used to finish and hid the amplifier ’s fixing screws. To disassembl and assembl them, follow the instructions below. DISASSEMBLING OF THE PLASTIC COVER 1. Carefully pull out the top of the plastic cover to release the upside latches, as shown in picture 1. 2.
  • Page 8: Panels Description

    PANELS DESCRIPTION "PROTECTION" LED indicator Yellow "CLIP" LED indicator "POWER ON" LED indicator Blue Variable "BASS BOOST" control 50Hz (0dB ~ +12dB) Variable "LOW" filter control (50Hz ~ 500Hz) Variable "SUBSONIC" filter control (5Hz ~ 30Hz) Variable Gain control Left Channel Audio input —...
  • Page 9: Power Inputs And Audio Outputs

    PANELS DESCRIPTION Negative power supply connector (GND) Remote power supply connector (REM) Positive power supply connector (+12VDC) Negative speaker connector (-) Positive speaker connector (+) Minimum speaker load allowed (impedance)
  • Page 10: Installation Sequence

    INSTALLATION SEQUENCE BEFORE PROCEEDING WITH THE INSTALLATION, UNPLUG THE NEGATIVE TERMINAL FROM ALL OF THE BATTERIES, TO AVOID FIRE, DAMAGE TO THE AMPLIFIER AND THE USER HIMSELF. Warning! Ø Mount the amplifier in such a way you have access to the connectors; Ø...
  • Page 11: Electrical Dimensioning

    ELECTRICAL DIMENSIONING AND AUDIO INPUTS ELECTRICAL DIMENSIONING For proper operation of your SounDigital amplifier, you need the proper dimensioning of the electrical system and the cables used. The table below shows the minimum section of GND cables, +12VDC cables and speaker output cables according to the power generated by the amplifier.
  • Page 12: Wiring Diagram

    REMOTE In case of connections with more than one battery, see the installation diagram on page 15 Minimum impedance of use according to the model Model Per channel 800.1 EVOX 4 Ω 4 Ω 800.1 EVOX 2 Ω 2 Ω...
  • Page 13: Gain Setting

    GAIN SETTING LED CLIP GAIN SETTING Necessary equipament: Digital AC voltmeter; Ø Ø Set the variable "LOW" crossover in 500Hz; Media with sine wave test tone 60Hz Ø recorded at 0db. Ø Set the variable "SUBSONIC" crossover in 5Hz; Set up procedure Use a 60 Hz sine wave;...
  • Page 14: Bass Boost And Crossover Set Up

    BASS BOOST AND CROSSOVER SET UP Using Bass Boost The Amplifier Bass Boost setting enables the user to boost the sound intensity at low frequencies of the sound system, where boost intensity can be adjusted. This is a semi-parametric equalizer type circuit with ''Q'' value for the fixed filter, with an intensity boost adjustment from 0 to +12dB (16 times), and a central frequency adjustment of the filter in 50Hz, making it versatile for several types of sound systems.
  • Page 15: Battery Connection Diagram

    BATTERY CONNECTION DIAGRAM When necessary the association of one or more battery banks to supply the necessary current to the amplifier, it is recommended to use batteries of the same brand, model, and if possible the same manufacturing lot so that the system has the maximum performance.
  • Page 16: Technical Specifications

    The values presented are based on measurements performed in Updates of information made in this document will always be SounDigital's laboratories. All the equipment used in the assays, tests, published and made available for consumer consultation, free of measurements and gauging of the technical parameters of SounDigital charge, on the brand's websites.
