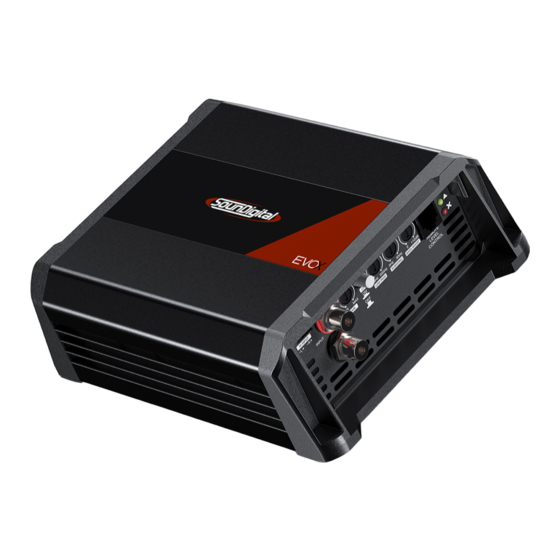

Soundigital 3000.1 EVOX2 Owner's Manual

Soundigital 3000.1 EVOX2 Owner's Manual

Hide thumbs Also See for 3000.1 EVOX2:

Advertisement

Quick Links

OWNER´S MANUAL
3000.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3000.1 EVOX2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Soundigital 3000.1 EVOX2

  • Page 1 OWNER´S MANUAL 3000.1...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Introduction ........................Package contents ...................... Safety instructions ...................... Technologies ® DTM ......................Ultra Compact PCB................Robust Construction ............... I-Power Supply ..................Full Range ..................... Assembling and Disassembling the plastic cover........Panels description Audio inputs and controls............Power inputs and audio outputs..........Installation sequence....................
  • Page 3: Introduction

    CONGRATULATIONS ON ACQUIRING A PRODUCT WITH THE HIGHEST QUALITY AND TECHNOLOGY! You have just purchased a SounDigital product of the highest technology and quality, so we thank you for your confidence. SounDigital products are made with raw materials of the highest quality standards, and the most modern processes, equipment and technology are used in their production.
  • Page 4: Safety Instructions

    Make sure the cables are properly secured throughout the installation; Wear gloves, safety glasses and and all necessary PPE during the installation of SounDigital amplifiers. THIS "WARNING" SIGN ALERTS THE USER OF IMPORTANT INFO. NOT FOLLOWING THIS INSTRUCTIONS MAY CAUSE INJURIES TO THE USER OR DAMAGE TO THE EQUIPMENT.
  • Page 5: Technologies

    I-POWER SUPPLY SounDigital amplifiers are known for their low consumption of battery, and this feature was i m p r o v e d o n t h e E VOX 2 L i n e . T h e n e w...
  • Page 6: Full Range

    TECHNOLOGIES VIBRATION ABSORPTION ® DEVICE - VAD ® Technology reduces all impact caused by vibration on the electronic circuit board. This can include road vibration and even vibration caused by sound waves, increasing the reliability of our amplifiers. 9.0" REDUCED SIZE The technology used in our amplifiers bring both...
  • Page 7: Assembling And Disassembling The Plastic Cover

    ASSEMBLING AND DISASSEMBLING THE PLASTIC COVER The plastic covers have the function of finishing and hiding the amplifier fixing screws. To disassembling and assembling them, follow the instructions below. DISASSEMBLING OF THE PLASTIC COVER 1. Carefully pull out the top of plastic cover to release the upside latches, as shown in the picture 1. 2.
  • Page 8: Panels Description

    PANELS DESCRIPTION 12 11 Blue "Power ON" LED indicator Yellow "Clip" LED indicator "Protection" LED indicator Remote level control connector Variable Bass Boost control 50Hz (0dB ~ +12dB) Variable Subsonic filter control (5Hz ~ 40Hz) Variable Low Pass filter control (50Hz ~ 500Hz) Low Pass filter on/off switch key Variable Gain control Right Channel...
  • Page 9: Power Inputs And Audio Outputs

    PANELS DESCRIPTION 17 18 16 Negative power supply connector (GND) Remote power supply connector (REM) Positive power supply connector (+12VDC) Positive speaker connector Speakers output connectors Negative speaker connector Minimum speaker load allowed (impedance)
  • Page 10: Installation Sequence

    INSTALLATION SEQUENCE Warning! Mount the amplifier in such a way you have access to the connectors; Ø Install the power cables in the vehicle properly, starting from the battery to the fuse Ø holder or circuit breaker, use the cable with the appropriate size. Make all connections, install fuse holders or circuit breakers, but without placing the fuses or with the circuit breakers in the "OFF"...
  • Page 11: Electrical Dimensioning

    ELECTRICAL DIMENSIONING AND AUDIO INPUTS ELECTRICAL DIMENSIONING For proper operation of your SounDigital amplifier, you need the proper dimensioning of the electrical system and the cables used. The table below shows the minimum section of GND cables, +12VDC cables and speaker output cables according to the power generated by the amplifier.
  • Page 12: Sd Rlc And Gain Setting

    SD RLC / GAIN SETTING EXTERNAL LEVEL CONTROL - SD RLC (NOT INCLUDED) The SD RLC is an easy-to-install external level control accessory that allows you to tune the level of SOUNDIGITAL amplifiers that have remote level control. POWER CLIP...
  • Page 13: Crossovers Set Up

    CROSSOVER AND BASS BOOST SET UP Using Bass Boost The Amplifier Bass Boost setting enables the user to boost the sound intensity at low frequencies of the sound system, where boost intensity can be adjusted. This is a semi-parametric equalizer type circuit with ''Q'' value for the fixed filter, with an intensity boost adjustment from 0 to +12dB (16 times), and a central frequency adjustment of the filter in 50Hz, making it versatile for several types of sound systems.
  • Page 14: Wiring Diagram

    WIRING DIAGRAM All RCA inputs must be connected for the channel to work properly. POWER CLIP LEVEL SD REMOTE LEVEL CONTROL* * Sold separately Minimum impedance 3000.1 EVOX2 1Ω 1Ω 3000.1 EVOX2 2Ω 2Ω...
  • Page 15: Parameters

    TECHNICAL SPECS PARAMETER 3000.1 1Ω 3000.1 2Ω 1307W 1980W RMS Power @ 4Ω RMS Power @ 2Ω 1980W 3000W RMS Power @ 1Ω 3000W Frequency response 5Hz ~ 25kHz 5Hz ~ 25kHz Subsonic 5Hz ~ 40Hz 5Hz ~ 40Hz Low pass filter 50Hz ~ 500Hz 50Hz ~ 500Hz Operating voltage...
