TABLE OF CONTENTS Introduction ........................Features ........................Package contents ..................... Safety instructions ....................Technologies ® DTM ....................... Ultra Compact PCB ................. Robust Construction ............... I- Power Supply .................. Full Range ................... Marinization with protection index Ip64 ........Assembling and Disassembling the Plastic Seals ........Panels description Audio inputs and controls.............
On this manual you will learn about the product, its features and characteristics, in order to obtain the best result and to be able to enjoy your music with SounDigital quality and power.
Make sure the cables are properly secured throughout the installation; Wear gloves, safety glasses and and all necessary PPE during the installation of SounDigital amplifiers. THIS "WARNING" SIGN ALERTS THE USER OF IMPORTANT INFO. NOT FOLLOWING THIS INSTRUCTIONS MAY CAUSE INJURIES TO THE USER OR DAMAGE TO THE EQUIPMENT.
I - POWER SUPPLY SounDigital amplifiers are known for their low c o n s u m p t i o n o f b a t t e r y, a n d t h i s f e a t u r e w a s improved on the EVOPS Line.
TECHNOLOGIES VIBRATION ABSORPTION ® DEVICE - VAD ® Our VAD Technology reduces all impact caused by vibration on the electronic circuit board. This can include road vibration and even vibration caused by sound waves, increasing the reliability of our amplifiers. 6.5"...
ASSEMBLING AND DISASSEMBLING THE PLASTIC SEALS DISASSEMBLING THE PLASTICS SEALS 1. Squeeze the assembled Flexible Plastics Seals 2. Pull out the Plastics Seals ASSEMBLING THE PLASTICS SEALS Plastic Seal Potentiometer Plastic Seal Slide switch Plastic Seal 1. Hold the disassebled Flexible Plastics Seals and fit them in their specific housing; 2.
ELECTRICAL DIMENSIONING AND AUDIO INPUTS ELECTRICAL DIMENSIONING For proper operation of your SounDigital amplifier, you need the proper dimensioning of the electrical system and the cables used. The table below shows the minimum section of GND cables, +12VDC cables and speaker output cables according to the power generated by the amplifier.
INSTALLATION SEQUENCE BEFORE PROCEEDING WITH THE INSTALLATION, UNPLUG THE NEGATIVE TERMINAL FROM ALL OF THE BATTERIES, TO AVOID FIRE, DAMAGE TO Warning! THE AMPLIFIER AND THE USER HIMSELF Ø Mount the amplifier in such a way you have access to the connectors; Ø...
GAIN SETTING Ø Set the Low Pass switch to "OFF"; GAIN SETTING Ø Use a 60 Hz sine wave; Necessary equipament: Ø Connect the AC voltmeter to the speaker Ø Digital AC voltmeter; output connectors of the amplifier. Make Ø Media with sine wave test tone 60Hz sure you test the voltage at the correct recorded at 0db;...
CROSSOVER AND BASS BOOST SET UP Using Bass Boost The Amplifier Bass Boost setting enables the user to boost the sound intensity at low frequencies of the sound system, where boost intensity can be adjusted. This is a semi-parametric equalizer type circuit with ''Q'' value for the fixed filter, with an intensity boost adjustment from 0 to + 12dB (16 times), and a central frequency adjustment of the filter in 50Hz, making it versatile for several types of sound systems.
Need help?

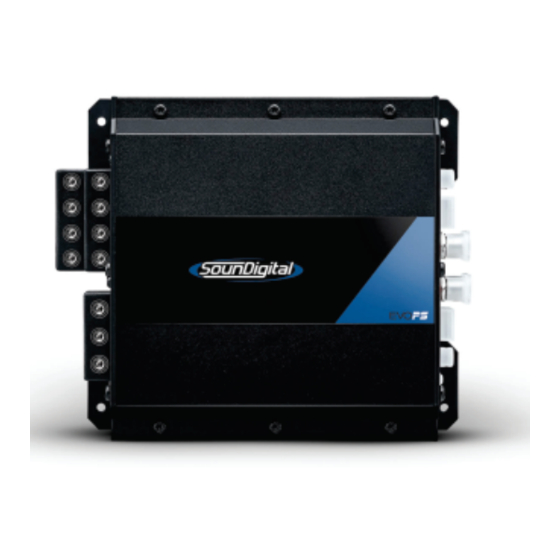

Do you have a question about the EVOPS 1200.1 and is the answer not in the manual?
