P5TX-AR User's Manual
1: Package & Product Information – 1.5
JP11
J21
J22
J19

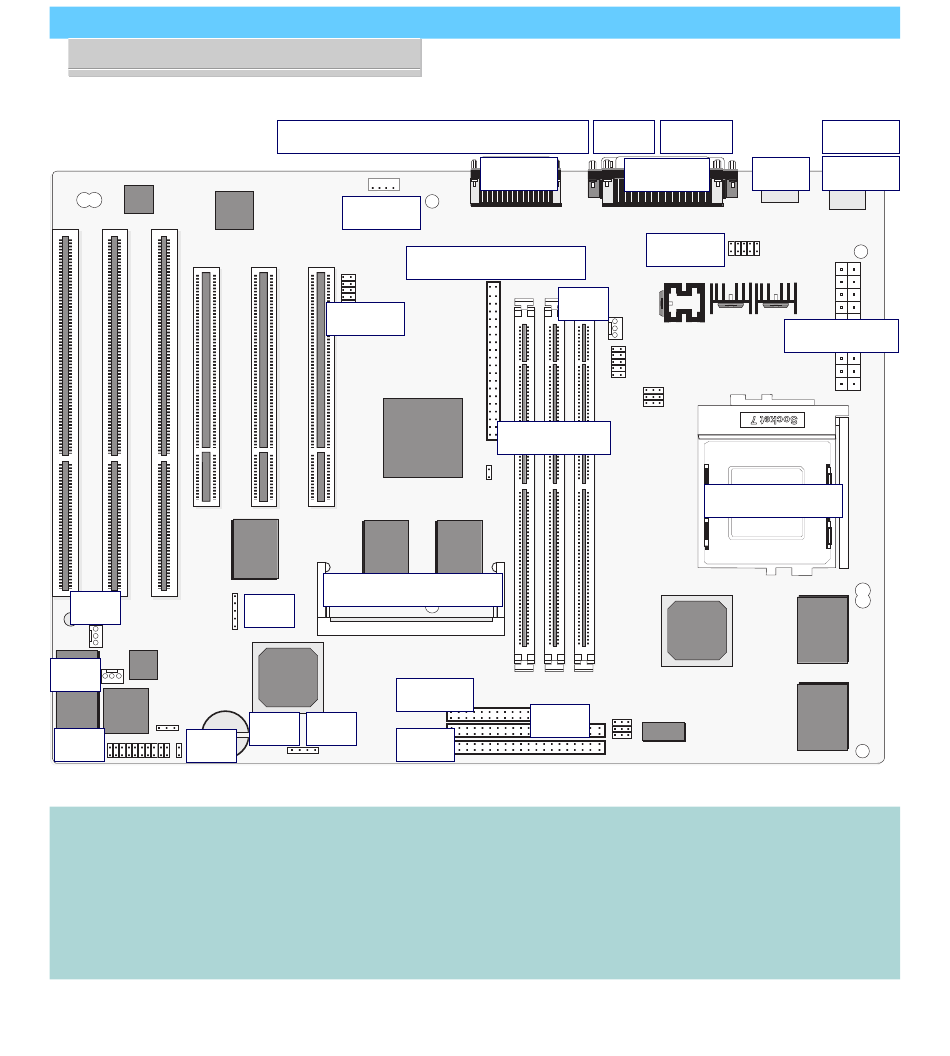

P5TX-AR Layout
The illustration above shows
the connectors, sockets and
ports and the mainboard.
Audio Ports: Mic, Line In, Line Out
CD-In
VGA Feature/AMC
TV-Out
ATi Mem. Socket
J18
Floppy
JP9 J16
IDE1
The COM1 and VGA ports are
underneath the Parallel port.
The USB ports and the PS/2
Keyboard (lower) and Mouse
(upper) ports are stacked one
above the other.
VGA
COM1
Game
Parallel
COM2
J20
DIMM3,2,1
IDE2
The onboard audio connec-
tors are under the game port.
COM2 and TV Out ports are
on a port bracket with cables
that connect to their respec-
tive connectors on the board.
Mouse
USB Keybd
ATX Power
CPU Socket 7
