Continuity tester
ALARM
L1 L2
2
1
2. FOR UP TO TWO MATS OR CABLES: Connect one
lead wire (not the earth wire) from one mat or cable
into the L1 terminal. Connect one lead wire (not the
earth wire) from a DIFFERENT mat or cable into the
L2 terminal. Now connect the re-maining lead wires
so that the mats or cables are in "series" with one
another. If this is not done properly, the Continuity
tester may not correctly monitor the mats or cables.
User Guide
4
POWER
E
3

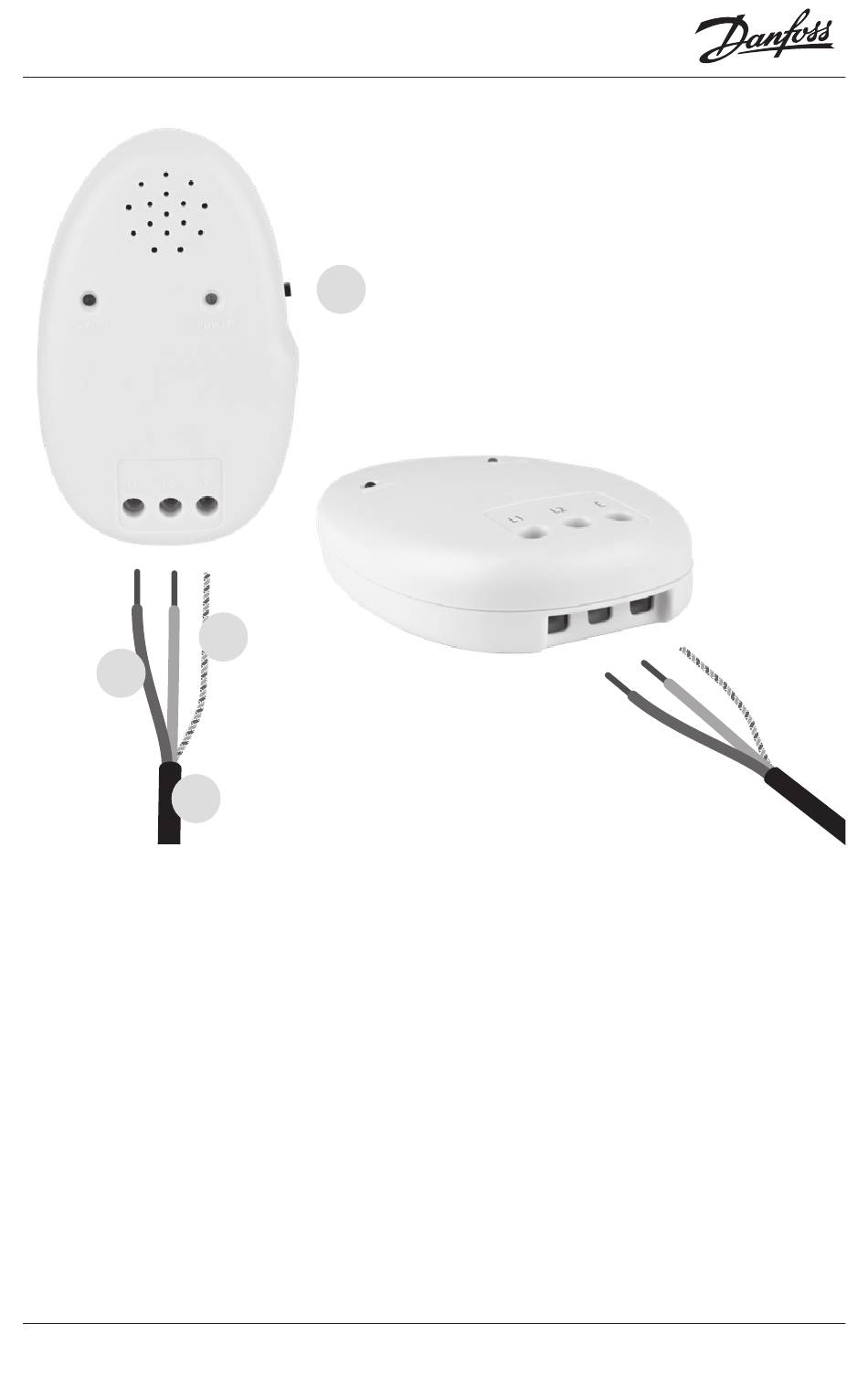

1. Cold lead (power cable)
2. Lead wires
3. Earth wire (Ground wire)
4. Switch
Fig. 3
