2.4.13 Line Out Connector

The Line Out phonejack provides the audio outputs for the left and right stereo channels.

2.4.14 Line In Connector

The Line In phonejack is used to attach monaural or stereo devices such as a cassette, Digital Audio
Tape, or Minidisc players for playback, mixing, or recording.

2.4.15 Microphone In Connector

The Microphone In phonejack is used to attach a monaural microphone for live audio input for
playback, mixing, or recording.

2.4.16 Game/MIDI Port

The Game/MIDI Port connector is used to attach a joystick for game interaction or to attach an external
MIDI device for playback, mixing, or recording.

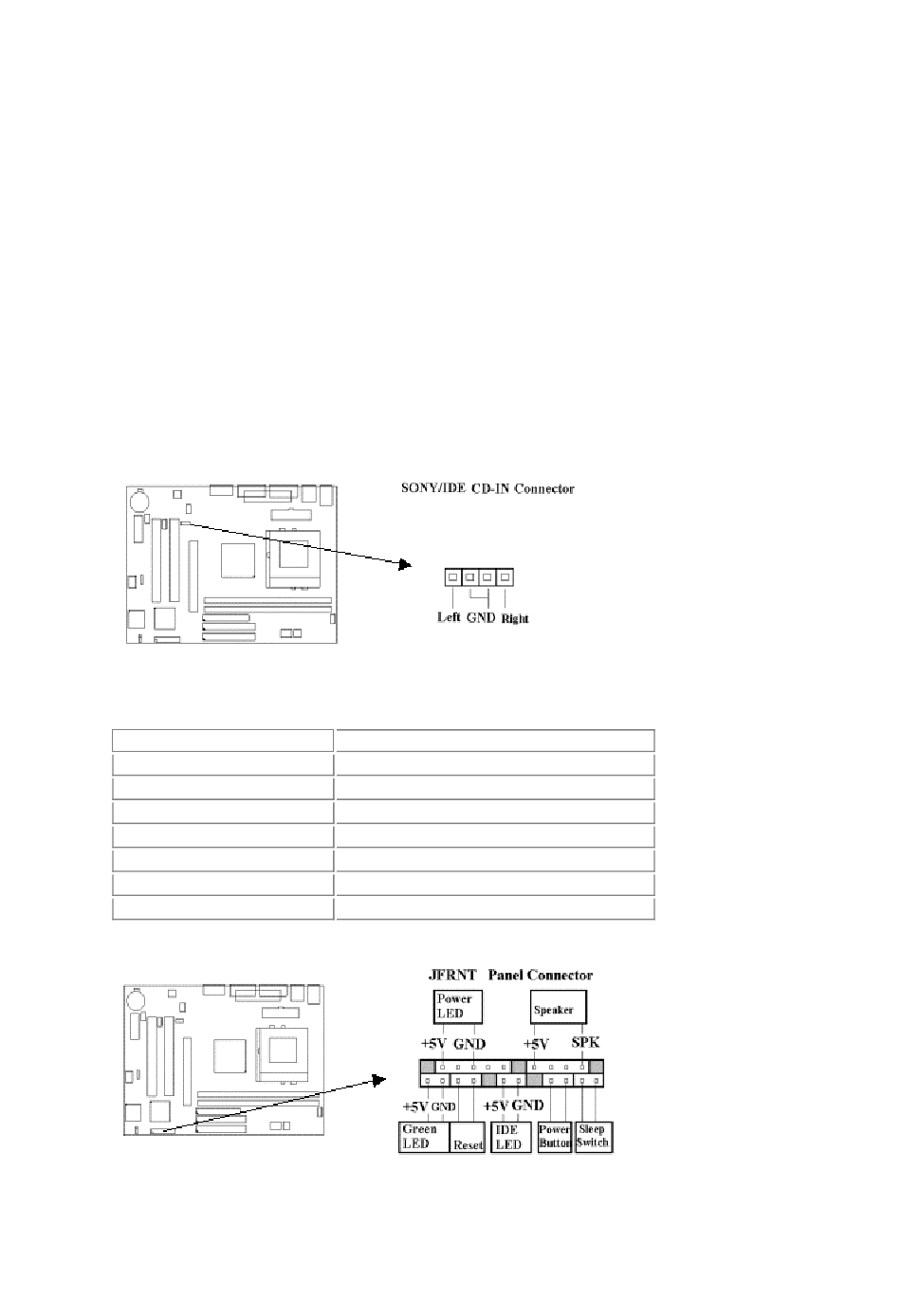

2.4.17 ATAPI IDE/Sony CD-ROM Audio (4-pin SONY)
The ATAPI IDE/Sony CD-ROM Audio connector is used to connect the audio cable from either an
ATAPI IDE or Sony CD-ROM drive for playback, mixing, and recording.
2.4.18 Panel Connection (24-pin JFRNT)
JFRNT Connector
GREENLED
PWRLED
SPKR
RESET
IDELED
PWRBNT
SMISW
WARNING: To avoid the system from failing, turn off the power before connecting any devices to the
system.

Chapter 3. BIOS Setup

3.1 CMOS Setup Utility

To activate CMOS Setup, press <DEL> key immediately after you turn on the system. The following
message "Press DEL to enter SETUP" should appear in the lower left hand corner of your screen.
Function
Suspend Mode LED
Power LED
Speaker
Reset Switch
HDD LED
ATX Power Button Connector
Sleep Switch
