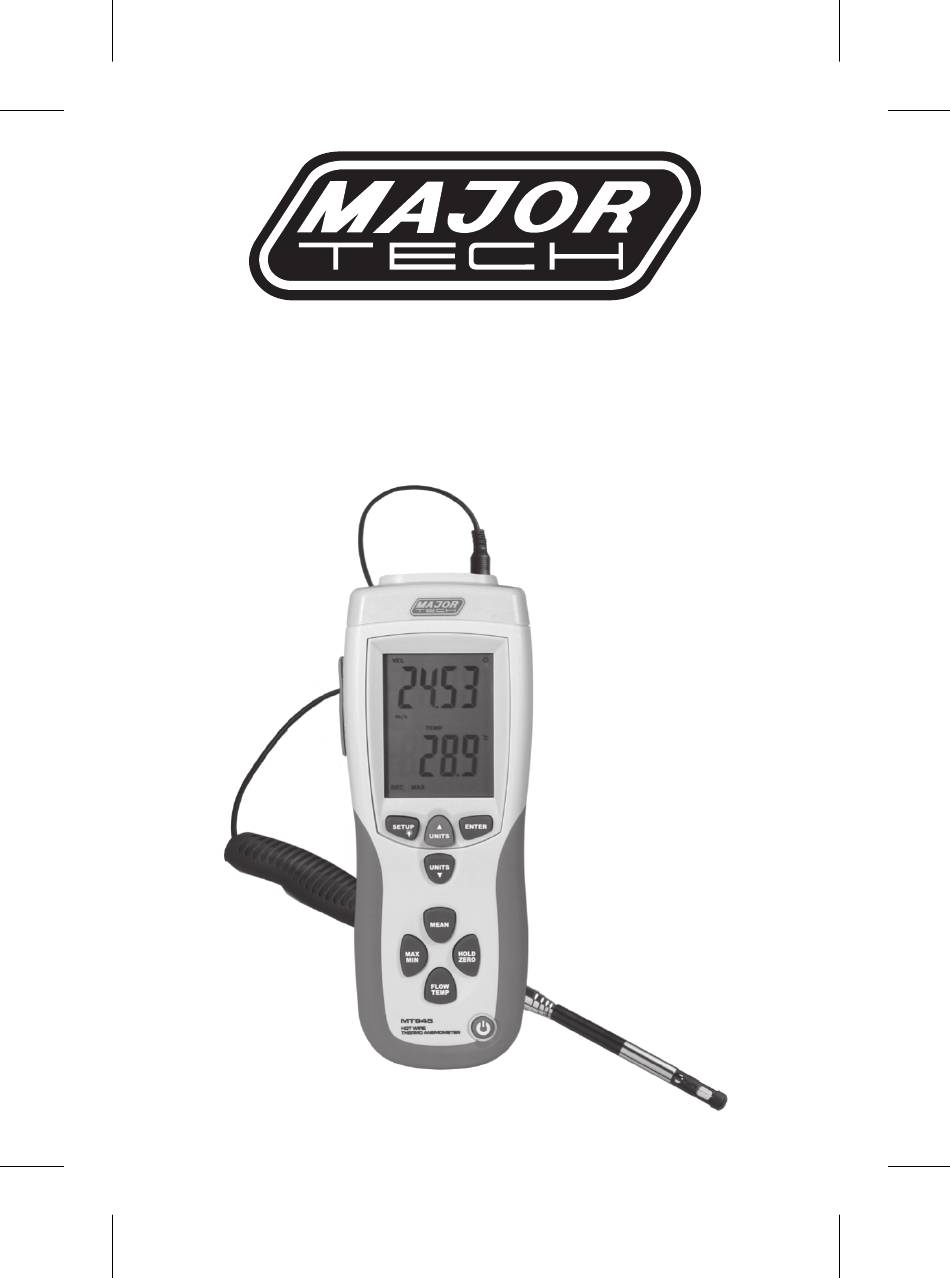

- Page 1 INSTRUCTION MANUAL MT945 HOT WIRE THERMO ANEMOMETER...
-
Page 3: Table Of Contents
Contents Page no 1. Features ..................4 2. Buttons ...................4 3. Display Elements ................5 4. Changing Setup Options ..............6 4.1. Setup Options ................6 4.2. Entering or Exiting Setup ............6 4.3. Changing a Setup Option ............6 4.4. Area Unit Setting ..............6 4.5. Area Setting ................7 4.6. -
Page 4: Features
The MT945 Hot Wire Thermo Anemometer is a microprocessor-based device designed to simultaneously measure low air velocity and air temperature. It utilizes a combination of a hot wire and a standard thermistor to provide quick and accurate measurements. The slim telescopic anemometer probe is well-suited for use in ducts and ventilation systems. -
Page 5: Display Elements
• Press "Setup " to turn on the backlight. Press it again to turn off the backlight. Press "Setup " button for 3 seconds to start or exit Setup. (See "Changing Setup Options.") • Press "Unit " to scroll to the Setup option you want to change. Press "Unit "... -
Page 6: Changing Setup Options
4. CHANGING SETUP OPTIONS Use Setup to change area unit, flow area, sleep mode settings. The thermometer stores the settings in its memory. 4.1. Setup Options Option Main Menu Settings Choose area unit Unit set area unit Change the flow area area set area of measuring air flow Auto Power Off mode... -
Page 7: Area Setting
4.5. Area Setting Changing the number digits of area and change the number value of area. Press "Unit " or "Unit " to scroll to the area value setup option when the thermometer is in the setup mode. Press "Enter" button, the area number flashes. -
Page 8: Measuring Procedure
4.7. Measuring Procedure 1. Connect the "Probe's Plug" to the "Probe Input Socket". 2. Power on the meter by push the "Power On/Off Button". 3. Select the desire air velocity units and temperature units. 4. Zero setting: a.On the "Sensing Head", slide the sensor cover to the up position to let the air Velocity sensor isolated from the environment. -
Page 9: Performing A Multi-Point Mean Calculation
4.8. Direction of the sensor head: There is a mark on the top of the "Sensor Head", when making the measurement, this mark should be against the measured wind - refer to Fig. 4 and Fig. 5. When the sensor head face is against the measurement air, then sensor head face against the measured air, then the upper display will show the air velocity value. -
Page 10: Performing A Mean Calculation
6. PERFORMING A MEAN CALCULATION IN TIME • Press "Mean" for 2 seconds. Mean is lit. The elapsed measuring time (mm:ss) is displayed in the upper line while the current reading is displayed in the lower line. • To change between displaying the temperature, flow velocity and calculated volumetric flow rate: Press "Flow/Temp". -
Page 11: Specifications
10. SPECIFICATIONS 10.1. General Specifications Range Function Display 46.7mmx60 mm larger LCD display Dual function meter's display Measurement m/s (meters per second) km/h (kilometers per hour) ft/min (feet per minute) MPH (miles per hour) knots (nautical miles per hour) Temp. ---°C ' °F Data hold Memory Maximum and Minimum with recall... - Page 12 MAJOR TECH (PTY) LTD South Africa Australia www.major-tech.com www.majortech.com.au sales@major-tech.com info@majortech.com.au...
