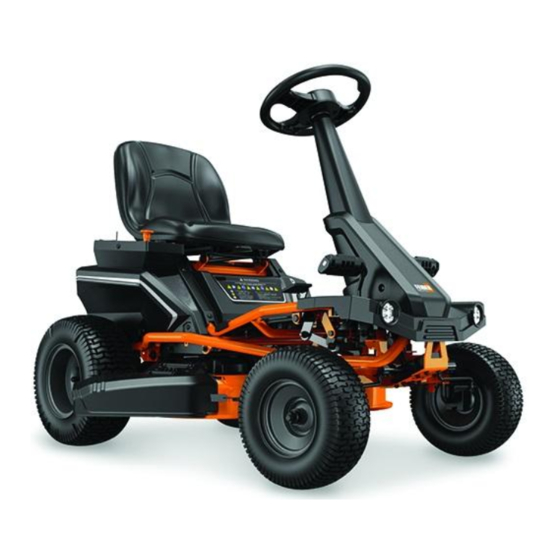

Feider Machines FRE7548V User Manual

Cordless rider
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

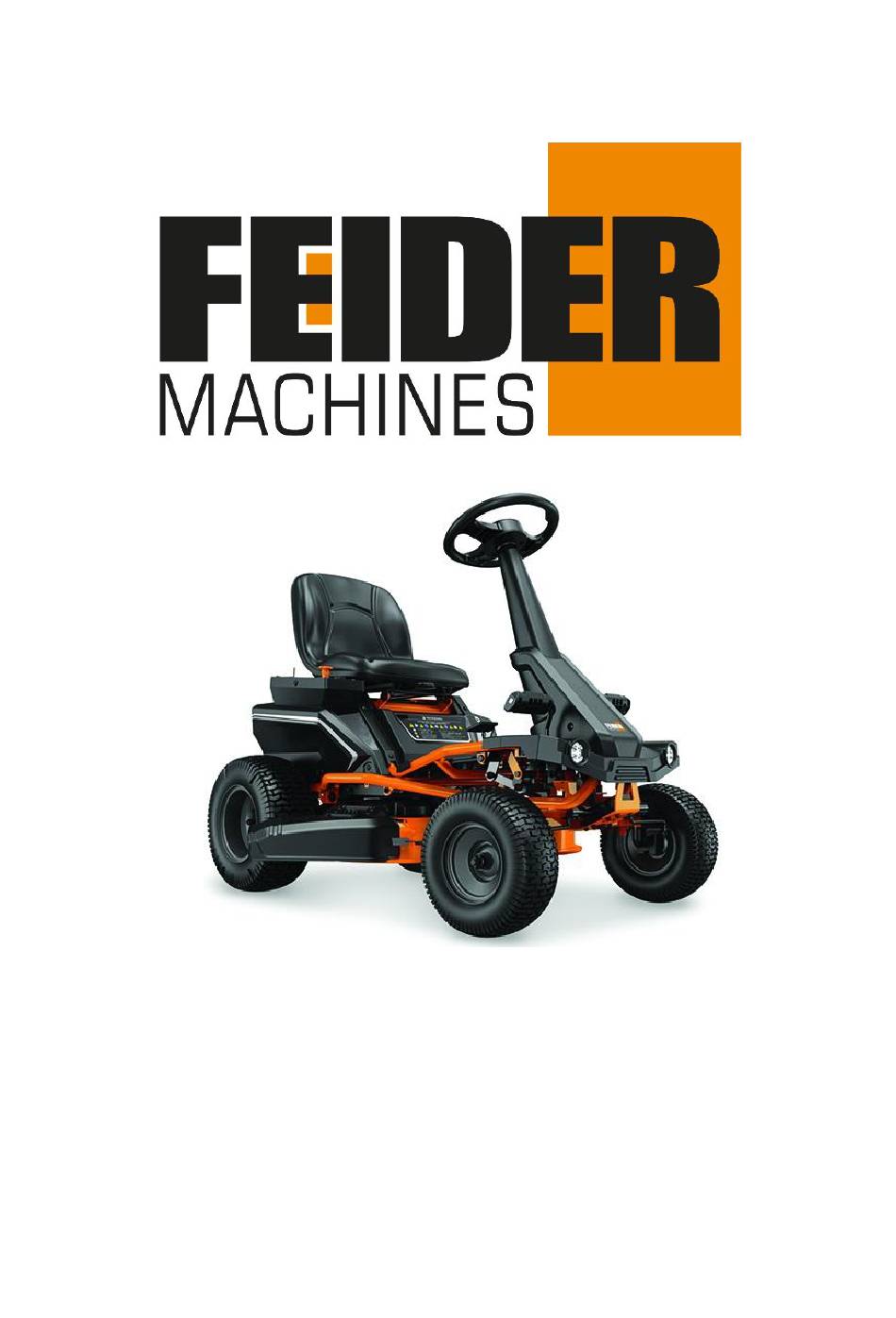

ORIGINAL INSTRUCTIONS >EN
CORDLESS RIDER
FRE7548V
USER GUIDE
CAUTION: Read this manual before using this machine!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FRE7548V and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Feider Machines FRE7548V

Summary of Contents for Feider Machines FRE7548V

  • Page 1 ORIGINAL INSTRUCTIONS >EN CORDLESS RIDER FRE7548V USER GUIDE CAUTION: Read this manual before using this machine!

  • Page 2: Table Of Contents

    CONTENTS 1. INTENDED USE..............................3 2. SAFETY INSTRUCTIONS........................... 3 3. ASSEMBLY................................14 4. FEATURES................................19 5. USING THE PRODUCT............................. 25 6. TRANSPORTING THE PRODUCT........................29 7. MAINTAINING THE PRODUCT........................30 8. STORING THE PRODUCT..........................35 9. MAINTENANCE SCHEDULE........................... 36 10. TROUBLESHOOTING............................. 37 11.

  • Page 3: Intended Use

    1. INTENDED USE The ride-on mower is intended for outdoor use only. The product is designed for domestic lawn moving. The cutting blade should rotate approximately parallel to the ground over which it is being wheeled. All four wheels should touch the ground while mowing. The product is to be used only in domestic application by adults who have received adequate training on the hazards and preventive measures or actions taken while using it.
  • Page 4 your finger on the switch or energizing machine that have the switch on invites accidents. Remove any adjusting key or wrench before turning the machine on. A wrench or a key left ■ attached to a rotating part of the machine may result in personal injury. ■...
  • Page 5 ■ Do not expose a battery pack or tool to fire of excessive temperature. Exposure to fire or temperature above 130°C may cause explosion. Follow all charging instructions and do not charge the battery pack or tool outside the ■ temperature range specified in the instructions.
  • Page 6 PREPARATION ■ Wear heavy, long trousers, long sleeves, and sturdy anti-slip footwear. Do not wear short trousers, sandals, or go barefoot. Avoid wearing clothing that is loose fitting or that has hanging cords or ties. ■ Always wear safety glasses with side shields. Use a face mask if operation is dusty. Objects struck by the blade can cause severe injuries to persons.
  • Page 7 ● Avoid starting, stopping, or turning on a slope. If the tyres lose traction, disengage the blades and proceed slowly straight down the slope. ● Keep all movement on slopes slow and gradual. Do not make sudden changes in speed or direction, which could cause the product to roll over.
  • Page 8 metal objects and body parts as short circuit may result. Keep away from children. Failure to comply with these warnings could result in fire and /or serious injury. TRANSPORTATION AND STORAGE ■ Turn off the product, engage the parking brake, and remove the start key. Make sure that all moving parts have come to a complete stop.
  • Page 9 WARNING: Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. Have the serviced by an authorized service centre only. When servicing, use only original replacement parts. ■ Maintain the product with care and in good working condition. Keep blades sharp and guards in place and in working order.
  • Page 10 ■ The blade on the product is sharp. Use extreme caution and wear heavy-duty gloves when fitting, replacing, cleaning or checking bolt security. ■ After each use, clean the product with a soft, dry cloth. Any part that is damaged should be properly repaired or replaced by an authorized service centre.
  • Page 11 2.5 Symbols Safety alert Read and understand all instructions before operating the product. Follow all warnings and safety instructions. Always look down and behind you before and during backing and make sure children, bystanders, and pets are clear of the area. Keep all bystanders, especially children and pets, at least 30 m away from the operating area.
  • Page 12 Lift the blade engagement button up to engage. Press the blade engagement button down to disengage. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice. For indoor use only Time‐lag fuse type Burst hazard...
  • Page 13 Non-spillable. Battery must be recycled. The product contains lead-acid batteries. Local regulations may prohibit disposal of lead-acid batteries in ordinary trash. Consult your local waste authority for information regarding available recycling and/ or disposal options. Make sure that the side discharge chute is fully closed before operating the product.

  • Page 14: Assembly

    Stop the mower on a flat level surface. Do not stop the product on slopes. Step on the brake pedal, and engage the parking brake. Push down the blade engage knob to turn off the blades. Turn the key to the OFF position. Remove the start key.
  • Page 15 NOTE: The product should be assembled while positioned on the frame bottom. Once assembly is complete, set the cutting deck to its maximum height, then position a ramp next to the frame bottom, and slowly and carefully drive the product off the frame. WARNING: Use care when driving the product off or the frame, and step on the brake pedal as needed to control the speed.
  • Page 16 WARNING: Strictly adhere to all torque wrench tightening specification. Failure to do so could cause serious personal injury. WARNING: Do not attempt to modify the product or create accessories not recommended for use with the product. Any such alteration or modification is a misuse and could result in a hazardous condition leading to possible serious personal injury.
  • Page 17 To connect: · Press the tabs on the wiring cover and lift the cover to remove. · Connect the two ends of the battery quick connect plug together. NOTE: Before reinstalling the wiring cover, install the seat as described in the next section. INSTALLING THE SEAT (See Fig.
  • Page 18 · finally install Steering wheel cover on steering wheel CHARGING THE PRODUCT (See Fig.11) Mower batteries must be charged overnight before first use. To verify mower batteries are fully charged, check the battery level indicator. For best results: CHARGING LED INDICATOR ·Make sure both the charger and mower connections are clean and free of dirt or debris.

  • Page 19: Features

    CHARGING LED INDICATOR LED indicating lamp Battery/charger status Current charging current Current charging voltage Battery percentage 4. FEATURES Know the product (See Fig.12)
  • Page 20 NO. Name Function & Purpose Seat Adjustment Lever Rotate the seat adjustment lever to adjust the front and rear position of the seat. Reverse Pedal The back pedal controls the back movement and speed of the riding mower. Accelerator Pedal The forward pedal controls the forward movement and speed of the riding mower.
  • Page 21 Shredded Grass Baffle To block the side discharge port, so that the grass can be cut into smaller pieces in the cutter head. Product specifications Model: FRE7548V Mowing motor power 1.2kW Maximum operating engine speed 3500/min Voltage output...
  • Page 22 Allowable charging temperature range -10-40°C Battery Model: 6-EVF-50B (Sealed Lead-acid battery) Technical data: 12V, 50Ah per cell, 4 cells connected in series Charging time: Before starting the check Remove any objects in the work area that may be knocked up or entangled by the blade. ·...
  • Page 23 WARNING After the assembly is complete, make sure that the shredded grass baffle is installed in place, otherwise may cause serious personal injury . Engaging the parking brake (See Fig.14) • Fully depress and hold the brake pedal and depress the parking brake at the same time. Or firstly, depress the parking brake, then fully depress the brake pedal.
  • Page 24 WARNING Be sure the seat is locked into place before operating the mower. A seat that is not secure can cause the operator to shift and lose control of the mower and result in possible death or serious personal injury. Setting the cutting deck height (See Fig.16) Before using the riding mower, raise the height of the cutter head to the most suitable cutting position for your lawn.

  • Page 25: Using The Product

    • Release pressure on the accelerator pedal. Mower speed should remain constant. • To release cruise control: tap on the accelerator pedal, depress the brake pedal, or press the cruise control button again. The light around the cruise control button will go out to indicate cruise control is no longer active.
  • Page 26 • Set the cutting deck to the preferred position. • Turn the start key to the ON position, and disengage the parking brake. • Pull up the blade engage knob to activate the blades, and step on the accelerator pedal to mow the lawn.
  • Page 27 • Set the parking brake. • Turn the start key OFF. WARNING If the mower emits a beeping noise after you leave the seat, verify that the parking brake is set and the key has been removed. Failure to set the parking brake could cause the mower to move, and leaving the key could allow unauthorized use that could result in serious personal injury .
  • Page 28 SLOPE OPERATION (See Fig.22) • Mow up and down, not across the face of slopes. • Do not mow on wet grass. Wet grass can cause the tires to lose traction or slip-on slopes, even though the brakes are functioning properly. •...

  • Page 29: Transporting The Product

    6. TRANSPORTING THE PRODUCT TRANSPORTING THE PRODUCT (See Fig.23) • Park the mower on a level surface. • Raise the cutting deck to the highest position. • Position and secure ramp to the trailer according to manufacturer’s instructions.Slowly drive the mower onto the ramp and into the trailer.

  • Page 30: Maintaining The Product

    7. MAINTAINING THE PRODUCT WARNING Before performing any maintenance, stop the mower, wait for the blades to come to a complete stop, and remove the start key to avoid accidental starting and possible serious personal injury. WARNING Always wear eye protection with side shields marked to comply with ANSI Z87.1. Failure to do so could result in objects being thrown into your eyes resulting in possible serious injury.
  • Page 31 • If you need to reinstall the cutting deck, install the cutting deck back to the riding mower in the opposite direction of the slide out. Replacing the cutting blades (See Fig.24-25) WARNING Only use replacement blades and blade bolts authorized by the manufacturer of your riding mower.
  • Page 32 • Use a 15mm wrench or socket to turn the blade bolt counterclockwise (viewed from the bottom of the mower) to loosen the blade bolt. • Remove blade bolts, washers, flat washers and blades. • Place the new blade on the blade holder in the direction of the original blade, and make sure that the two semicircular holes at the center of the blade fit into the semicircular protrusions of the blade holder.
  • Page 33 WARNING Maintaining correct air pressure in the tires is very important. Too little pressure could allow the tire to rotate off the wheel rim. Too much pressure could cause the tire to burst. Failure to maintain correct air pressure in the tires could cause problems with mower operation and stability, causing serious personal injury TIRE REPAIR If a leak or flat tire occurs due to a puncture, the tire may be repaired using a plug type patch.
  • Page 34 REPLACING THE BATTERIES (See Figure 27-29) NOTE: Model D21RM530 riding mower only uses Reese battery 12V 50Ah. This mower operates on four 12-volt batteries connected in a series. If replacing one or more of the batteries, always replace using a battery of the same type with equal voltage and capacity. WARNING Use only identical lead acid batteries when replacing.

  • Page 35: Storing The Product

    WARNING Under extreme usage or temperature conditions, battery leakage may occur. If liquid comes in contact with your skin, wash immediately with soap and water. If liquid gets into your eyes, flush them with clean water for at least 10 minutes, then seek immediate medical attention. Following this rule will reduce the risk of serious personal injury.

  • Page 36: Maintenance Schedule

    PREPARING FOR USE AFTER STORAGE The following steps should be taken before using the mower after it has been stored: • Review maintenance chart. • Fully charge the batteries. • Check tire pressure and inflate as needed. • Briefly drive the mower and check all systems and components to ensure they are functioning correctly.

  • Page 37: Troubleshooting

    10. TROUBLESHOOTING IF THESE SOLUTIONS DO NOT SOLVE THE PROBLEM CONTACT YOUR AUTHORIZED SERVICE DEALER. PROBLEM POSSIBLE CAUSE SOLUTION The key is inserted but the 1.The battery is too low. 1.Charge the battery. machine does not start. 2.The charger is not unplugged. 2.Unplug the charger.
  • Page 38 The blade does not work 1.RMO button is not pressed. 1.Press the RMO button to when retreating to mowing. 2.The motor switch of the blade enter the backward mowing is not turned on. mode. 2.Turn on the blade motor switch. riding mower cannot reach 1.The battery is too low.

  • Page 39: Declaration Of Conformity

    32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France declares that: Product: Cordless rider Trade mark: FEIDER Model:FRE7548V Serial number: 20221013767-20221013782 Is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration.

  • Page 40: Warranty

    1 2 . WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear.

  • Page 41: Product Failure

    1 3 . PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.

  • Page 42: Warranty Exclusions

    14. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
  • Page 43 BUILDER SAS 32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France MADE IN PRC...
