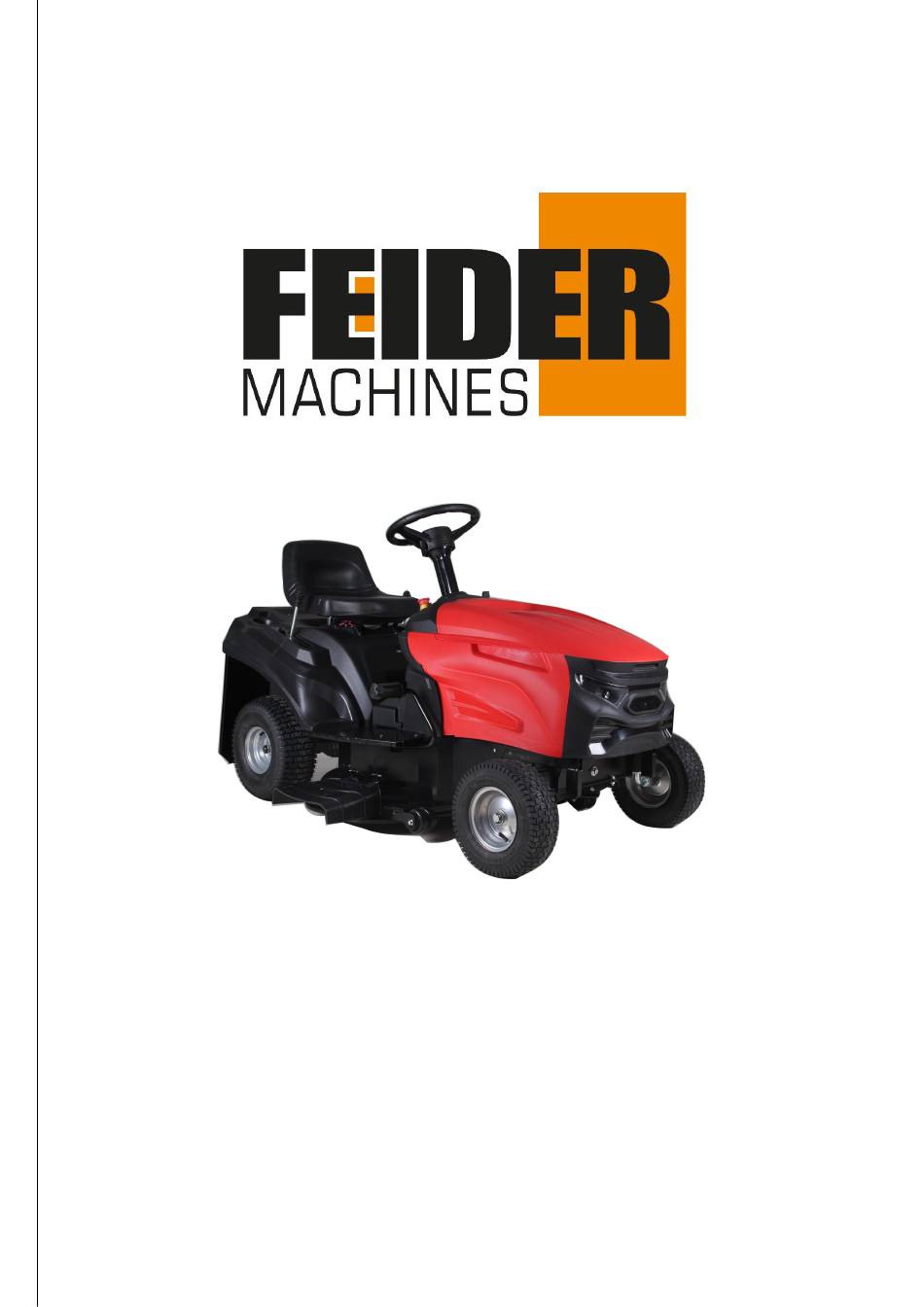

ORIGINAL INSTRUCTIONS >EN
PETROL LAWN TRACTOR
FRT90EL
USER GUIDE
CAUTION: Read this manual before using this machine!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FRT90EL and is the answer not in the manual?

Questions and answers

Summary of Contents for Feider Machines FRT90EL

  • Page 1 ORIGINAL INSTRUCTIONS >EN PETROL LAWN TRACTOR FRT90EL USER GUIDE CAUTION: Read this manual before using this machine!
  • Page 2 Dear Customer, Thank you for having chosen one of our products. We hope that you will get complete satisfaction from using your new machine and that it will fully meet all your expectations. This manual has been compiled in order that you may get to know your machine and to be able to use it safely and efficiently.
  • Page 3: Table Of Contents

    1. SAFETY ........................4 2. IDENTIFICATION OF THE MACHINE AND COMPONENTS........9 3. UNPACKING AND ASSEMBLY .................10 4. CONTROLS AND INSTRUMENTS ................12 5. HOW TO USE THE MACHINE ..................14 6. MAINTENANCE ......................26 7. ENVIRONMENTAL PROTECTION ................29 8. TROUBLESHOOTING....................29 9. ACCESSORIES ON REQUEST ................. 31 10.
  • Page 4: How To Read The Manual

    1.1 HOW TO READ THE MANUAL This manual describes various versions of the machine, which mainly differ in: – type of transmission: with either mechanical gear change or continuous speed converter. – the inclusion of components or accessories which may not be available in some areas; –...
  • Page 5: General Safety Regulations

    1.2 GENERAL SAFETY REGULATIONS Read carefully before using the machine. A) TRAINING 1) Read the instructions carefully. Be familiar with the controls and how to use the equipment properly. 2) Never let children or people unfamiliar with these instructions use the machine. Local regulations can restrict the age of the user.
  • Page 6: Operation

    C) OPERATION 1) Do not start the engine in a confined space where dangerous carbon monoxide fumes can collect. 2) Mow only in daylight or good artificial light. 3) Before starting the engine, disengage the blades and shift into neutral. 4) Do not use on slopes of more than 10°...
  • Page 7 5) Check the grass-catcher frequently for wear or deterioration. 6) Replace worn or damaged parts for safety purposes. 7) If the fuel tank has to be drained, this should be done outdoors. 8) When the machine is to be stored or left unattended, lower the cutting deck. Improper maintenance can reduce life of the tool and create accident and damages.
  • Page 8: Safety Labels

    plots or gardens are those used for the maintenance of grassy areas and private lawns and should not be used in public areas, parks, sports, agricultural or forest areas. 1.3 SAFETY LABELS Your machine must be used with care. Therefore, labels have been placed on the machine to remind you pictorially of the main precautions to take during use.
  • Page 9: Name And Address Of Manufacturer

    WARNING! Do not put hands or feet near rotating parts or under the cutting deck. Contact with the blade(s) can amputate hands and feet. Danger ! Electrical shock ! The surface is very hot and not touching. Guaranteed sound power level. Risk of fire 2.1 IDENTIFICATION OF THE MACHINE The identification label located under the seat has the essential...
  • Page 10: Unpacking And Assembly

    4. Driver seat: this is where the machine operator sits. It has a sensor which detects the presence of the operator and acts as a safety device. 5. Labels for regulations and safety: give reminders on the main provisions for working safely, each of which is explained in chapter 1.
  • Page 11: Fitting The Seat

    3.2 FITTING THE STEERING WHEEL Place the machine on a flat surface and straighten the front wheels. - Install steering wheel shaft (1) - Tap in elastic cylindrical pin (2), - Install casing (3), casing base (4), - Align steering wheel (5) on steering wheel shaft - Place flat washer (6) and spring washer (7) and tighten bolt (8).
  • Page 12: Steering Wheel

    4.1 STEERING WHEEL Turns the front wheels. 4.2 CLUTCH / BRAKE PEDAL It has a double function: during the first part of its travel it acts as a clutch, engaging and disengaging drive to the wheels, and in the second part it works the brake.
  • Page 13: Key Ignition Switch

    – To disengage the parking brake, press the pedal(☛4.2).The lever will return to position «A». 4.4 SPEED CHANGE LEVER This lever has six positions for the four forward gears, the neutral position «N», and reverse «R».To change gear press the pedal (☛4.2) halfway down and move the lever as per the indications on the label.
  • Page 14: Accelerator Lever

    4.8 ACCELERATOR LEVER Regulates the engine's speed. The positions are indicated on a plate showing the following symbols : «CHOKE» (if fitted) = cold starting «FAST» for maximum engine speed «SLOW» for minimum engine speed –The «CHOKE» position (if fitted) enriches the mixture so must only be used for the necessary time for cold starting.
  • Page 15: Why The Safety Devices Cut In

    – never put your hands or feet next to or beneath the rotating parts and always keep away from the discharge opening. Do not use the machine when in a precarious state of health or under the effect of medicines or other substances that can reduce your reflex actions and your ability to concentrate.
  • Page 16: Tire Pressure

    Adjust the seat by sliding it along the bracket slots. 1. Loosen the four screws (1); 2. once you have found the right position, securely tighten screws. 5.3.2 Tire pressure Having the correct tire pressure is essential for ensuring that the cutting deck is perfectly horizontal and thus mows evenly.
  • Page 17: Using The Machine

    To refuel (to be done when the machine has stopped): 1. unscrew the plug (4) from the tank located behind the seat; 2. Fill the tank with fuel through a funnel, but it cannot be completely filled.The fuel tankThe volume is about 5 liters.
  • Page 18: Starting And Moving Without Mowing

    5. put in the key (☛ 4.6) and turn to «ON» to make electrical contact, then turn to «START» to start the engine; 6. release the key once the engine has started; The choke (if fitted) must be closed as soon as possible. Using it when the engine is already warm can foul the spark plugs and cause the engine to run erratically.
  • Page 19: Grass Cutting

    2. push the pedal right down (☛4.2) to lower the speed even more until the machine stops. 3. Move the speed gear shift (☛4.4) to idle «N» to permit gradual motion. 5.4.4 Reverse Reverse MUST be engaged only when the machine has stopped 1.When the machine has stopped, put it in reverse by moving the lever sideways to position «R»...
  • Page 20: Unblocking The Collector Channel

    5.4.6 Unblocking the collector channel This job must only be performed with the engine Turned off. If the collector channel gets blocked (due to accumulated grass cuttings filling up the side discharge or an excessively high speed with relation to the quantity of grass cuttings), you need to: 1.
  • Page 21 Wear eye protection and keep people or animals away from the surrounding area when cleaning the cutting deck. a) When washing the inside of the cutting deck and the collector channel, the machine must be on firm ground: 1. fit the grass-catcher; 2.
  • Page 22: Using On Slopes

    6.2.3). The next time the machine is used, check that there are no fuel leaks from the tubes or carburetor. 5.5 USING ON SLOPES When mowing lawns on a slope, observe the maximum gradients already mentioned (max 10° - 17%) and move up and down but never across them. Take great care when changing direction that the highest wheels do not hit obstacles (such as stones, branches, roots, etc.) that may cause the machine to slide sideways, tip over or otherwise cause loss of control.
  • Page 23 1. To keep a lawn green and soft with a good appearance, it should be cut regularly without damaging the grass. 2. It is always better to cut the grass when dry. 3. The blade must be in good condition and well sharpened so that the grass is cut straight without any ragged edge that leads to yellowing at the ends.
  • Page 24 4. Insert the return snap ring into the side row shield. 5. The side row guard shaft enters from the left side of the side row guard cover, passes through the return circlip, and goes out from the right side of the side row guard cover. 6.
  • Page 25 7. Install the side row holder above the cutter wheel. 8. The side row hood cover welding assembly and the side row hood cover welding assembly fixing seat, the connection holes are aligned. 9. The rivets are inserted from above the fixing seat of the side hood cover welding assembly and pass through the side hood cover welding assembly.
  • Page 26: Maintenance

    6.1 SAFETY RECOMMENDATIONS Disconnect the spark plug cap, remove the key (in the electric start models) or shift the accelerator lever to «OFF» (in the manual start models) and read the relevant instructions before starting any cleaning, maintenance or repairs. Wear suitable clothing and strong gloves for dismantling and refitting the blade and in all other hazardous situations for the hands.
  • Page 27: Interventions On The Machine

    6.2.3 Battery To ensure long life to the battery it is essential to keep it carefully maintained. The machine battery must always be charged: – before using the machine for the first time after purchase; – before leaving the machine for a prolonged period of disuse; –...
  • Page 28: Replacing Wheels

    6.3.2 Replacing wheels 1. Place the machine on a flat surface and put blocks under a load-bearing part of the frame on the side of the wheel to be changed; 2. using a screwdriver, remove the snap ring (1) and the washer (2);...
  • Page 29: Environmental Protection

    Damaged or bent blades must always be replaced; never try to repair them! ALWAYS USE MANUFACTURER'S GENUINE REPLACEMENT BLADES BEARING THE SYMBOL! Environmental protection should be a priority of considerable importance when using the machine, for the benefit of both social coexistence and the environment in which we live. –...
  • Page 30 3. The engine stops Electronic card blocked due to: Turn the key to position«OFF» and look for the cause of the problem: –earth connections of the micros witches –check connections disconnected – you are not ready for starting – check that the conditions allowing the start are met 4.
  • Page 31: Battery Charger

    1. BATTERY-CHARGER Battery charger charges the battery when the machine is in storage. Note: The Battery can be charged automatically if the motor is working. 2. Change Blade 1.Make sure there is no machine oil and gasoline in the tank, side lay the machine as the picture above.
  • Page 32: Specifications

    Model No. FRT90EL 84.3 dB(A) Sound pressure level, uncertainty K=3.0 dB 98.23 dB(A) Sound power level, uncertainty K=0.93 dB Guaranteed sound power level 100 dB(A) 4.44 m/s Vibration, uncertainty K=1.5 m/s Max. Engine power 6.5kW Max. Engine Speed 2900/min Engine displacement...
  • Page 33: Declaration Of Conformity

    32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France Tel : +33 (0)5.34.502.502 Fax : +33 (0)5.34.502.503 declares that the machines: PETROL LAWN TRACTOR FRT90EL Serial No.: 20221213152-20221213245 the people name holding the technical file:Mr. Olivier Patriarca have been designed in compliance with the following standards: EN-ISO 5395-1:2013+A1: 2018, EN-ISO 5395-3:2013+A1:2017+A2:2018 EN-ISO 14982:2009...
  • Page 34: Warranty

    1 2 . WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear.
  • Page 35: Product Failure

    1 3 . PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.
  • Page 36: 14. Warranty Exclusions

    14. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
  • Page 37 BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Made in PRC 2022...
