WatchGas SST Dock Quick Start Manual

Hide thumbs Also See for SST Dock:
Table of Contents

Advertisement

Quick Links

Download this manual
SST Dock
Quick Start Guide
SST Dock | QSG | V 1.0 | EN | 15-06-23

Advertisement

Table of Contents
loading

Related Manuals for WatchGas SST Dock

Summary of Contents for WatchGas SST Dock

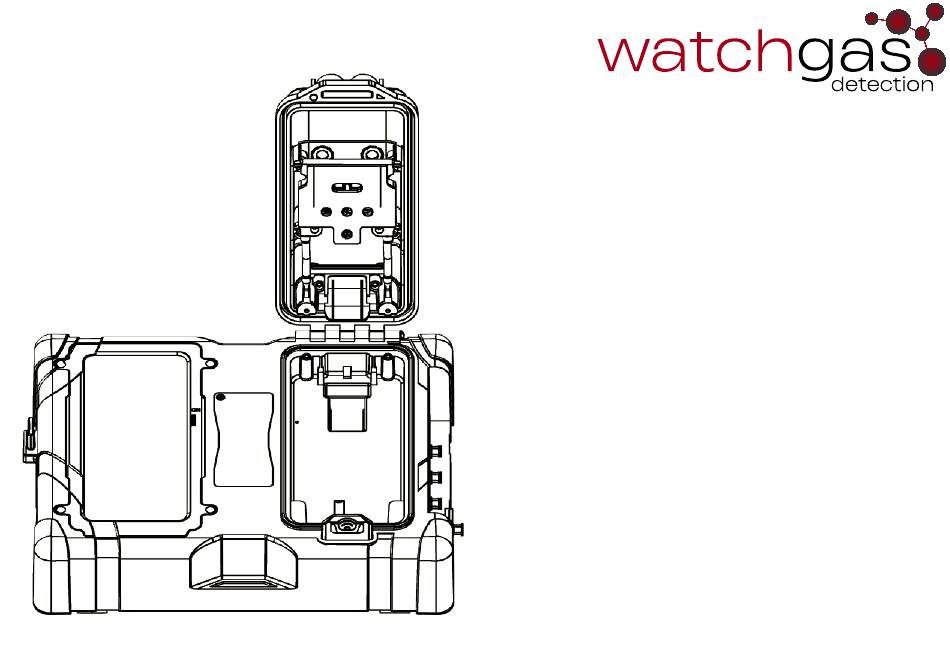

  • Page 1 SST Dock Quick Start Guide SST Dock | QSG | V 1.0 | EN | 15-06-23...
  • Page 2 CAUTIONS & BEST PRACTICES WARNING IMPORTANT SAFETY INFORMATION: • If the SST Dock appears to be damaged or is not READ FIRST functioning properly, please contact WatchGas or a local WatchGas distributor. • SST Dock uses Calibration Gas to carry out testing and •...

  • Page 3: Prepare For Use

    Ensure a fresh air inlet filter is installed. • If potentially harmful gas is used for calibrations, users must read the MSDS of the gas con- nected. The SST Dock must be attached to a venting system or be used in a well-ventilated area.

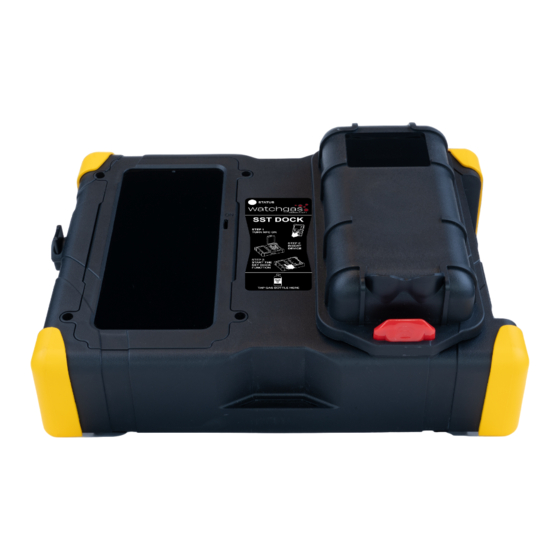

  • Page 4 INTRODUCTION The SST Dock is an automated test station that allows Bump and Calibration testing. It is compat- ible with the full SST Range in one module. It has the capability to be connected via Wi-Fi, BLE, or Cellular and allows for desk, wall, and hard case mounted dependent on your application. With two inlets it allows for calibration of the standard four gases plus another gas type.
  • Page 5 Installing the brackets SWITCH ON THE SST DOCK If the SST Dock is fully discharged, please allow 5 min of charging prior to switching on the unit. The LED will show red switching to white prior to start-up. Connect the SST Dock to an electrical outlet (or surge protector) by means of the included power adapter.

  • Page 6: Enter Set Up

    Watch Tab enabled bottles. It is important to fill in all data as the IMPORTANT: If optional pressure sensors are utilized these shall be activated or the SST Dock Dock produces a full calibration certificate. will ignore the signal Enter the password To add a new Calibration bottle click “Add bottle”...
  • Page 7 If the touch screen is in sleep mode – dou- port is open during operation). ble-tap the screen to wake up the unit. The NOTE: The SST Dock will not perform any bump screen will instruct the next step. or calibration if the gas does not match the detector target gas.
  • Page 8 2- or 3-year SST1 then the device will already be activated. Turn on NFC. Step 2 Lift the lid on the SST Dock by using the two-finger guides and the red latch. Step 3 Insert the device by locating the alligator clip into the guide in the SST Dock.

  • Page 9: Specifications

    Data Storage More than 1 year of operation Connection capability Wi-Fi, Cellular, BLE – Connected into the Cloud and WatchGas App Gas Inlets Fresh air inlet, 2 gas inlets and one purge Bump Test, Calibration (optional), Device Configuration and Data Testing Function Download.

  • Page 10: Maintenance

    NO USER-SERVICEABLE PARTS INSIDE MAINTENANCE Periodically check that the inlet filter is free of dirt and replace it if required. SST Dock can be cleaned with a soft, damp cloth. Do not use solvents, soaps, polishes, or immerse the SST Dock in liquids.

  • Page 11: Troubleshooting

    | www.watchgasusa.com SST Dock | QSG | V 1.0 | EN | 15-06-23 © 2023 WatchGas B.V. WatchGas is dedicated to continuously improving its products. Therefore, the specifications and features mentioned in this QSG are subject to change without prior notice.
