WatchGas SST Dock Quick Start Manual

Hide thumbs Also See for SST Dock:

Advertisement

Table of Contents

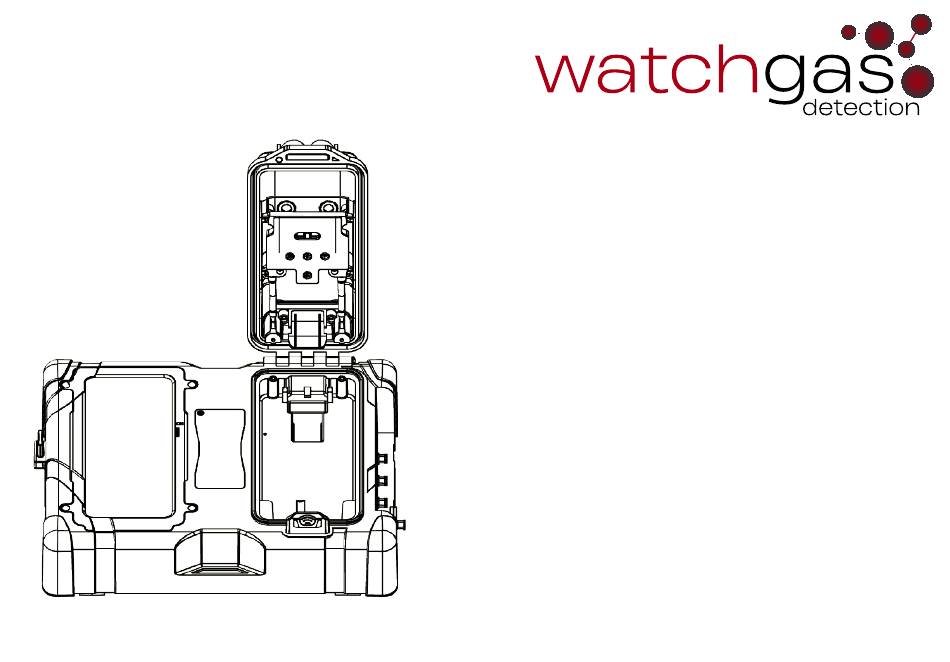

SST Dock
Quick Start Guide
SST Dock | QSG | V 1. 1 | EN | 09-07-24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SST Dock and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WatchGas SST Dock

Summary of Contents for WatchGas SST Dock

  • Page 1 SST Dock Quick Start Guide SST Dock | QSG | V 1. 1 | EN | 09-07-24...
  • Page 2 CAUTIONS & BEST PRACTICES • If the SST Dock appears to be damaged or is not functioning properly, please contact WatchGas or a local WatchGas distributor; • SST Dock uses Calibration Gas to carry out testing and calibrations so always ensure that these tests are done in a well-ventilated area;...

  • Page 3: Prepare For Use

    Use the shortest lenght of tubing possible. • • If potentially harmful gas is used for calibrations, users must read the MSDS of the gas connected. The SST DOCK must be attached to a venting system or be used in a well-ventilated area.
  • Page 4 INTRODUCTION The SST Dock is an automated test station that allows Bump and Calibration testing. It is compat - ible with the full SST-Range in one module. It has the capabilities to be connected via Wi-Fi, BLE or Cellular and allows for desk, wall and hard case mounted dependent on your application. With two inlets it allows for calibration of the standard four gases plus another gas type.
  • Page 5 SST Dock on a table Installing the brackets SWITCH ON THE SST DOCK If the SST DOCK is fully discharged, please allow for 1 hour of charging prior to switching on the unit. will show red switching to white prior to start-up. Connect the SST DOCK to an electrical outlet (or surge protector) by means of the included power adapter.

  • Page 6: Enter Set Up

    ‘s are utilized these shall be activated or the SST DOCK will ignore the signal. You can set this up in SST DOCK Setting -> Settings, with the Pressure sensor fitted option. To add a new Calibration bottle Bump & Calibration click “Add bottle”.
  • Page 7 The screen will instruct the next step. NOTE: The SST DOCK will not perform any If there is a fault with the SST Dock, this bump or calibration if the gas does not will be indicated with a red-colored Dock match the detector target gas.
  • Page 8 SST Dock is going to automatically do to the device inside once you close the lid. The Step 2 following actions are available: Lift the lid on the SST Dock by using the two finger guides and the red latch. • Always ask (open dialog with calibration,...
  • Page 9 SST DOCK EXIT KIOSK SST DOCK WIFI To exit the Kiosk mode on your SST From the main menu, select Wi-Fi settings. Dock, select Exit Kiosk mode from the This is where you can choose which Wi-Fi main menu. network to connect to.

  • Page 10: Specifications

    Yes, updateable Data Storage More than 1 year of operation Connection capability Wi-Fi, Cellular, BLE – Connected into the Cloud and WatchGas App Gas Inlets Fresh air inlet, 2 Gas inlets and one purge Testing Function Download. Also tests device Alarms, Visual LED’s and Vibrator...

  • Page 11: Maintenance

    WARNING MAINTENANCE Periodically check that the inlet filter is free of dirt and replace it if required. The SST Dock can be can be cleaned with a soft, damp cloth. Do not use solvents, soaps, polishes, or immerse the SST Dock in liquids.

  • Page 12: Parts And Accessories

    ONLY USE ORIGINAL WATCHGAS PARTS AND / OR ACCESSORIES PARTS AND ACCESSORIES Serviceable parts and accessories are sold separately. Please contact WatchGas or an authorized distributor, or visit the website at www.watchgas.com or www.watchgasusa.com if in North America. Parts list •...

  • Page 13: Troubleshooting

    TROUBLESHOOTING Detector fails bump, fresh air, or calibration: Check that gas bottles are connected, sufficiently pressurized, and contain the right gas concentration (information on the bottle). Verify the station function with a known functional detector. Detector fails alarm test: Redo the test. Manually inspect the detector for LED, vibration and audio alarms.

  • Page 14: Contact Information

    Red Oak, TX 75154, USA info@watchgasusa.com www.watchgasusa.com APAC Woods Square Tower 1, 12 Woodlands Square, #11-71, Singapore 737715 aus@watchgas.com SST Dock | QSG | V 1.1 | EN | 09-07-24 © 2024 WatchGas B.V. WatchGas is dedicated to continuously improving its products.

This manual is also suitable for:

Sst-dock-kit
