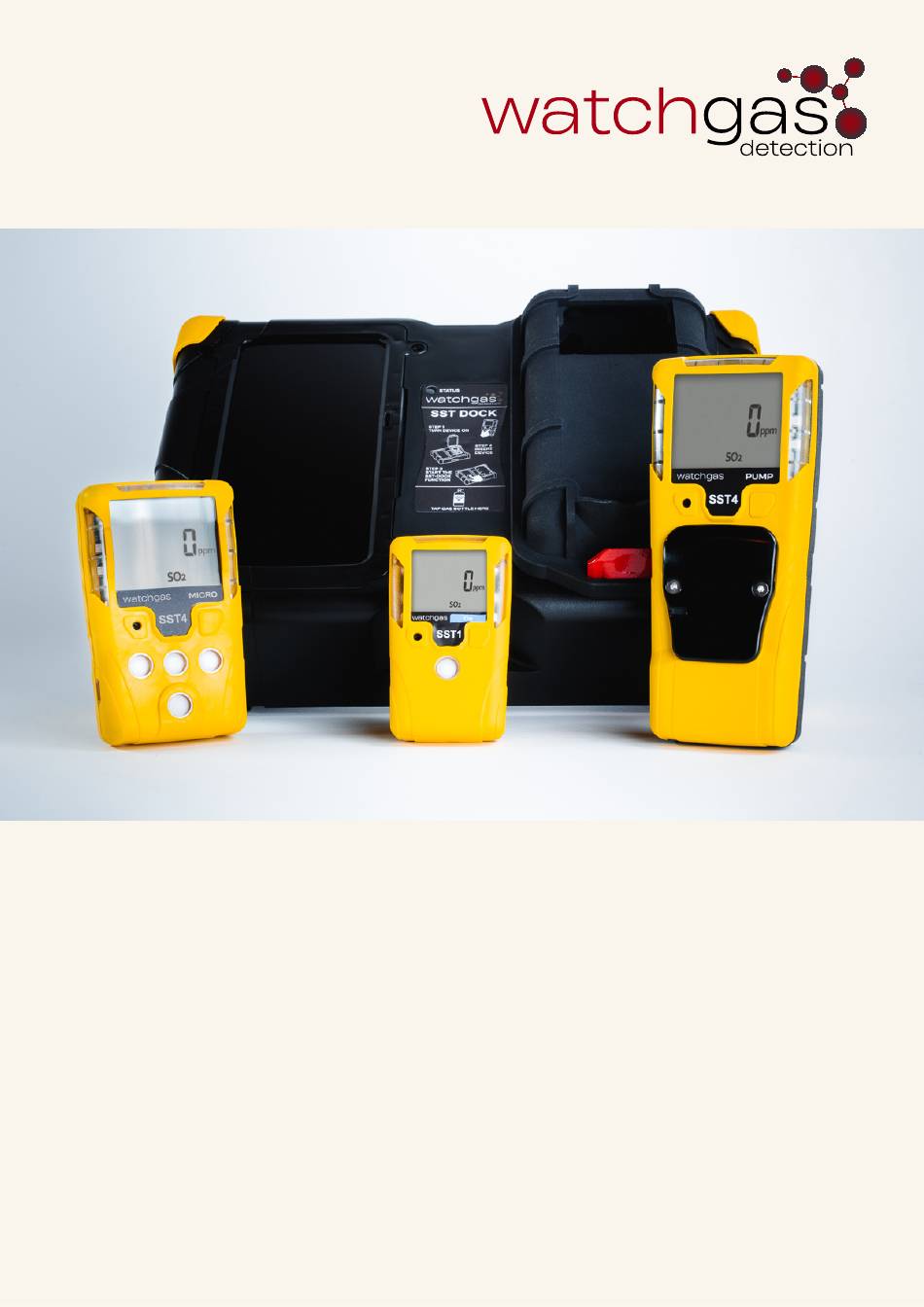

  • Page 1 User Manual SST Dock SST-DOCK-MAN-ENG-v1.0 27.12.2024...

  • Page 2: Table Of Contents

    1.2. What’s In the Box 1.3. SST DOCK Overview 1.4. Prepare For Use 1.5. Mounting the SST Dock 1.6. Function Overview 1.7. Installing the SIM Card in the SST DOCK Touch Screen 1.8. Connectivity 2. Menu and Settings 2. 1 . Start Screen Overview 2.2.

  • Page 3: Safety Information - Read First

    • Use the SST Dock only as specified by the manufacturer. Failure to do so may impair protection provided by the SST DOCK. The safety and security of any system or network incorporating the SST DOCK and its accessory components is the responsibility of the assembler of the system.

  • Page 4: Introduction

    With built-in NFC it is easier than ever to assign gas cylinders to the correct gas in ports. 1.2 What’s In the Box The content below are the standard items included with the SST DOCK. If the device is damaged or parts are missing, contact the place of purchase immediately.

  • Page 5: Sst Dock Overview

    Ensure that the fresh air inlet filter is installed. • If potentially harmful gas is u sed for calibrations, users must read the MSDS of the gas connected. The SST DOCK must be attached to a venting system or be used in a well-ventilated area.

  • Page 6: Mounting The Sst Dock

    If the SST DOCK in not charging, the LED will show red for 5 minutes, and then enter sleep mode. Opening or closing the lid will activate the SST DOCK and the red LED will be activated. This is done to preserve energy.

  • Page 7: Installing The Sim Card In The Sst Dock Touch Screen

    1.7 Installing the SIM Card in the SST DOCK Touch Screen • Step 1: Power down the touch screen. • Step 2: Unscrew the 4 screws on the touch screen holder, as seen in Figure 2 below. • Step 3: Install the SIM card in the touch screen module.

  • Page 8: Menu And Settings

    2. Menu and Settings 2.1 Start Screen Overview 1. Menu 2. SST DOCK name 3. Gas bottle connected to port set up in Menu sec- tion X 4. Touch screen battery level 5. Touch screen linked to sensor/driver electronics 6. Sensor/driver electronics battery charge level 7.

  • Page 9: Menu Overview

    2.3 Menu Overview 1. Allows for the setup of a device 2. Preloaded device configuration files 3. Unassign a User and Site ID 4. Power down non-rechargeable devices 5. Firmware update for devices 6. Loaded gas bottle list 7. Stored calibration certificates 8.

  • Page 10: Single Device Setup

    2.4 Single Device Setup The Single Device Setup allows the user to change the settings in the device that is currently active in the DOCK. In the Single Device Setup option, it is possible to set the User ID and the Site ID of the device placed inside.

  • Page 11: Saved Configuration File

    2.6 Unassign To unassign a device from the user: Activate the NFC on the unit. Insert the unit in the SST DOCK and press the unassign option. If it is required to delete all the events from the device after unassigning it, activate the clear...

  • Page 12: Hibernation

    By hibernating the unit its battery usage will be limited and operation time extended. To enter a device into hibernation, activate the NFC on the device and insert it into the SST DOCK. Press the button and the device will enter into hibernation mode. 2.8 Firmware Update...

  • Page 13: Set Up A Gas Bottle

    If the gas bottle label contains the WatchGas QR code, use the QR code scanner on the front of the touch screen. WatchGas recommends users enter the bottle name for easy reference. WatchGas recommends users enter the part number for easy reorder.

  • Page 14: Calibration Certificates

    2.10 Calibration Certificates Select desired View the Certificate. Sharing certificates can cerificate from the list be done via multiple and press the Share different media. button. NOTE: the application shall be installed on the touch screen. If no active email account is present, then the email icon will not show. 2.11 Event Logs The event log overview allows the user to quickly view the last...

  • Page 15: Data Log Download

    The selected data log and press the Extract Datalog files will be downloaded button to the SST DOCK 2.13 Connectivity Setup Company name The Station name will show up if the RTR software is activated Will be turned on if the RTR software has been activated Select the server site depending on the location –...

  • Page 16: Application Setting

    2.14 Application Setting The SST DOCK Serial Number Application version Password change The Assign check function allows the user to enter a User ID if not already loaded Unassign the site ID during the unassign process If Scan protect is active in the device, then the scan protect code needs...

  • Page 17: Assign Check Function

    2.15 Assign Check Function When the Assign Check Function is turned on, the SST DOCK will ask for the user to enter the name of the unit that has been placed inside of it. 2.16 Unassign Site ID When the Unassign Site ID option is turned on, the SST DOCK will unassign the unit that has been placed...

  • Page 18: Sst Dock Setting Menu

    The SST DOCK Diagnostic, which allows the User to test the SST 2.18 SST DOCK Port Setup The SST DOCK Port Setup allows the user to select gas bottles from the gas bottle list. From the preprogrammed gas bottle list drop down menu, select which gas to connect to which port.

  • Page 19: Sst Dock Settings

    4. If pressure sensors are fitted they must be turned on here. 5. If this option is turned on and bump fails, the SST DOCK will automatically perform a zero calibration. 6. Inlet block alarm, which indicates that a gas bottle is empty.

  • Page 20: Sst Dock Diagnostic Settings

    2.20 SST DOCK Diagnostic Settings 1. NOTE: The alarm test settings should not be adjusted unless under special circumstances. 2. The current sensor fault check. 3. The vacuum sensor fault check. 4. The time required for the valves to switch.

  • Page 21: Sst Dock Diagnostic Test

    2.21 SST DOCK Diagnostic Test During the SST DOCK Diagnostic Test all the sensors, pump, and valves are checked - providing a clear overview of where the fault has occurred. Press the Start test button The test will then be run...

  • Page 22: Sst Dock About

    2.22 SST DOCK About The SST DOCK About section provides an overview of general information regarding the DOCK. This includes info such as the App version, build number, which products it supports, the SST DOCK serial number, firmware version, and more.

  • Page 23: Sst Dock Exit Kiosk Mode

    2.24 SST DOCK Exit Kiosk Mode The Exit Kiosk Mode feature allows users to change or add features to the touch screen. To Exit Kiosk Mode, enter password 2017 and press the Enter button.

  • Page 24: Sst Dock Functions

    3. SST DOCK Functions 3.1 Fresh Air Calibration, Bump, or Zero Calibration When a device is inserted into the SST Dock and the LID has been closed, the following options are going to be displayed: Fresh Air, Bump, and Calibration.

  • Page 25: Fresh Air Calibration

    3.2 Fresh Air Calibration When this option is selected, the SST DOCK will perform a Fresh Air Calibration on the device inside of it.

  • Page 26: Bump

    When this option is selected, the SST DOCK will perform a Bump on the device inside of it. First the SST DOCK will test the device’s alarms, then apply gas to the unit, and generate a bump certificate of the results.

  • Page 27: Calibration

    3.4 Calibration When this option is selected, the SST DOCK will perform a Calibration on the device inside of it. The calibration process starts with an alarm test, followed by fresh air calibration, followed by a span calibration, and completes with the results certificate preview.

  • Page 28: Sst Dock Flow Vs % Pump Setting

    4. SST DOCK Flow vs % Pump Setting...

  • Page 29: Troubleshooting

    Check the gas bottle Run diagnostic Inlet blocked alarm Check the gas bottle to see if it is empty The SST Dock does not communicate with the device Ensure that the Device NFC is active Table 2. Troubleshooting Problems and Solutions...

  • Page 30: Spare Parts List

    SST Dock Rubber bumpers that fit on the corners, pack of 4 SST-DOCK-MB SST Dock Mounting brackets, including 4 screws and spacers SST-DOCK-LUR SST Dock Set of luers to connect hose to inlets/outlet, pack of 6 SST-DOCK-KEY SST Dock Power Key, pack of 5 SST-DOCK-LAT...

  • Page 31: Contact Details

    7. Contact details EMEA Klaverbaan 121 2908 KD Capelle a/d IJssel The Netherlands info@watchgas.com www.watchgas.com Americas 313 N. State Hwy 342 Red Oak, TX 75154, USA info@watchgasusa.com www.watchgasusa.com APAC Woods Square Tower 1, 12 Woodlands Square, #11-71, Singapore 737715 info@watchgas.com www.watchgas.com...
