User Manual

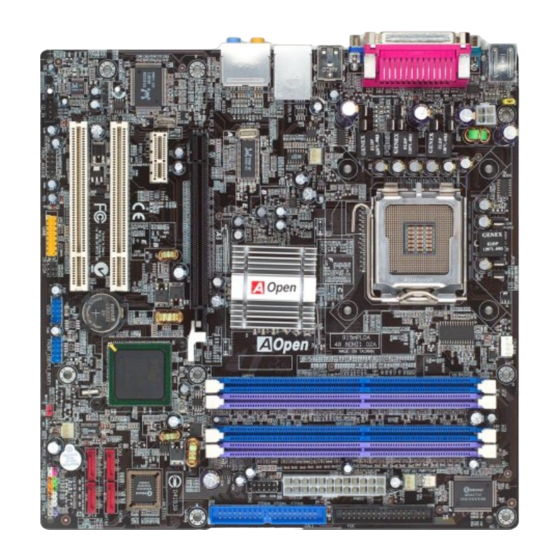

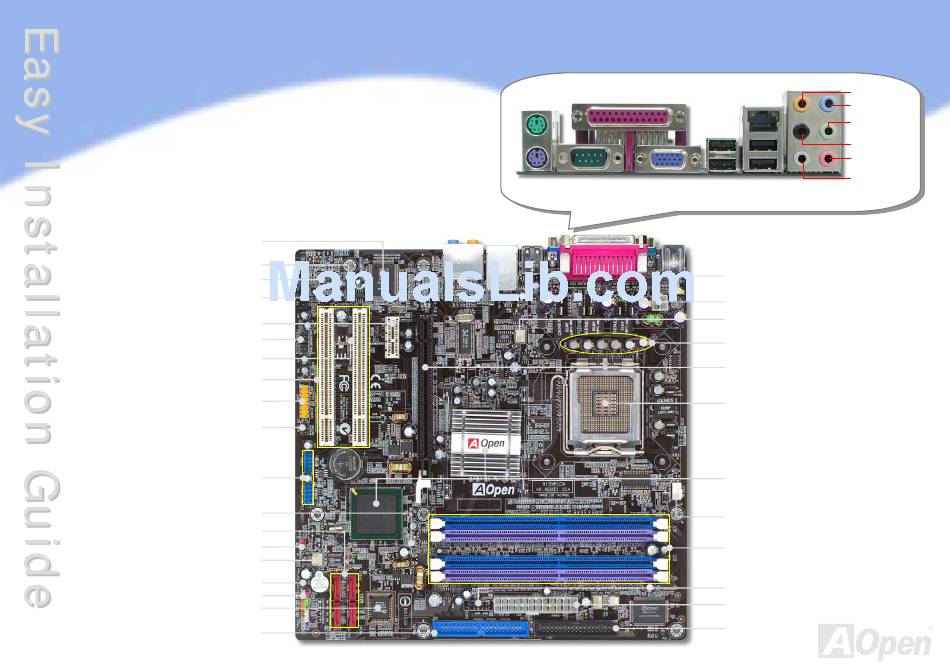

i915Gm-PL / i915Pm-PL
Realtek Gigabit LAN Chip
S/PDIF Connector
Onboard HD Codec
CD_IN Connector
PCI Express x1 Slot
Front Audio Connector
STBY LED
32-bit PCI Expansion Slots x2
Game Connector
IRDA Connector
USB 2.0 Connectors x2
BOOT LED
Serial ATA Ports x4
Supports 150 MB/s Transfer Rate
JP14 CMOS Data Clear Jumper
SYSFAN2 Connector
Case Open Connector
Front Panel Connector
DieHard BIOS Lite
IDE Connector
(ATA 33/66/100 supported)
AOpen reserves the right to revise all the specifications and information contained in this document, which are subject to change without notice.
PS/2 Mouse
SPP/EPP/ECP Parallel Port
Connector
PS/2
COM 1 Port
VGA Port
Keyboard
Connector
RJ45
Rear SUR
LAN Jack
Line-In
Speaker Out
USB 2.0
Ports
Center/
Subwoofer
MIC-In
Side SUR
USB 2.0
Ports
JP28 PS2 KB/Mouse Wakeup
Jumper
4-pin 12V ATX Power Connector
SYSFAN1 Connector
Functional Polymer Capacitor
PCI Express x 16 Graphics
Slot (8.0GB/s)
LGA 775 CPU Socket with Voltage
and
Frequency
Auto-detection
®
that supports Intel
FC-LGA4 CPU
Intel
915G / ICH6 (i915Gm-PL)
®
915P / ICH6 (i915Pm-PL) Chipsets
that support 800 MHz FSB, DDR 400
and PCI Express x16
CPUFAN Connector
184-pin DIMMsx4 support
DDR400/333
Max. To 4GB
COM2 Connector (i915Gm-PL)
ATX Power Connector
FDD Connector
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AOpen i915Gm-PL
Summary of Contents for AOpen i915Gm-PL
- Page 1 COM2 Connector (i915Gm-PL) Front Panel Connector ATX Power Connector DieHard BIOS Lite IDE Connector FDD Connector (ATA 33/66/100 supported) AOpen reserves the right to revise all the specifications and information contained in this document, which are subject to change without notice.
- Page 2 Everything you need to boot this motherboard is included in this Easy Installation Guide. For more 1. Installing CPU information, a complete Online 12. Installing Drivers & Utilities User's Manual can be found in the Bonus Pack CD. Thanks for the help of saving our earth.
-
Page 3: Installing Cpu
1. Installing CPU 3. Installing Memory Modules This socket supports FC-LGA4 CPU, which is the latest CPU package developed by DIMM slots are designed in Navy Blue and Electronic Blue which are very easy to Intel. Other forms of CPU package are impossible to be fitted in. recognize. - Page 4 (CPU, RAM, HDD, etc.) are good enough for turbo setting. 6. Connecting ATX Power Cables 8. AOpen EzInstall and Bonus Pack CD This motherboard comes with a 24-pin and 4-pin ATX power connector as shown You can use the autorun menu of Bonus CD disc. Choose the utility and driver below.
-
Page 5: Jp14 Clear Cmos
Setting CPU Voltage & Frequency JP14 Clear CMOS Setting CPU Core Voltage You can clear CMOS to restore system default setting. To clear the CMOS, follow This motherboard supports Voltage ID (VID) function to detect CPU voltage the procedure below. automatically during power-on. -
Page 6: Usb 2.0 Connectors
USB 2.0 Connectors Front Audio Connectors This motherboard provides eight USB 2.0 ports to connect USB devices, such as If the housing is designed with an audio port on the front panel, you’ll be able to mouse, keyboard, modem, printer, etc. There are four ports on the back panel. connect onboard audio to front panel through this connector. -
Page 7: Model Name And Bios Version
Gold member of Club AOpen, and to ensure high service quality and priority from AOpen. You will also have a chance to play slot machine game to win prize from AOpen. Please prepare the following information before you start: Model Name, Part Number (P/N), Serial Number (S/N) and Purchase Date. - Page 8 Gold Member of Club AOpen so as to ensure quality service in the future. In order to maintain the best service to every customer of us, we recommend you to follow the procedures below and seek help from our branches according to the region you buy the product.
