Purelink VIP-T400 User Manual V1.0 VIP-T400 4K60 HDMI and USB over IP Fiber/CAT USER MANUAL PureLink 220-10 State Route 208 Fair Lawn, NJ 07410 USA Tel: +1.201.488.3232 Fax: +1.201.621.6118 E-mail: sales@purelinkav.com For order support, please contact your local dealer. For technical support, please contact us at...
How to check the IP Address of a Decoder ..................... 13 Option 1: Via connection to a Display ....................13 How to find all IP Addresses of a VIP-T400 system ................. 13 Option 1: Using a VIP-T400 endpoint with known IP Address: ............13 Option 2: Using VPX Management Software ..................
Page 3
Purelink VIP-T400 User Manual V1.0 Network switch recommendations ......................19 Bandwidth Usage and Latency ........................19 Installation ..............................20 Connections ..............................20 Power ..............................20 Network ..............................20 Audio ............................... 20 Video ............................... 20 Infrared ..............................20 RS232 ..............................20 Passthrough –...
The VIP-T400 4K60 HDMI & USB/KM Over IP Distribution System provides UltraHD/4K video, audio, RS- 232, IR, and USB signal transport over IP networks. The VIP-T400 can be used as a point-to-point extension system supporting distances up to 300 meters, as well as layered distribution, switching, and matrix switching systems using multiple control options including PureLink’s VPX IP Video Management...
Purelink VIP-T400 User Manual V1.0 Specifications • TAA Compliant • Input video support; HDMI 2.0 with HDR o 4K60 4:4:4 o 4K60 4:2:0 o 4K30 4:4:4 o 1080P60 o 1080P30 o 1080P24 o 720P60 o 720P30 • Input audio support o HDMI input Typical HDMI 2.0 audio formats...

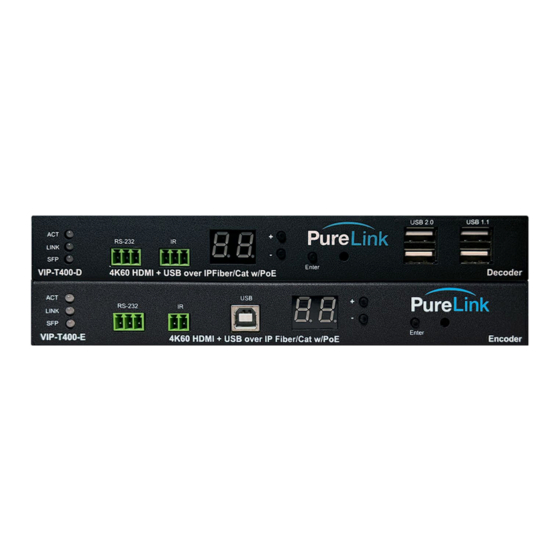

Purelink VIP-T400 User Manual V1.0 Front Panel - ENCODER (transmitter) 1. ACT LED: o Turns green whenever 4K HDMI & USB over IP Extender is powered 2. LINK LED a. On Encoder is linked to at least one Decoder with video signal b.
Purelink VIP-T400 User Manual V1.0 Rear Panel - ENCODER (transmitter) 1. RJ45 Connector o Self-adaptive Ethernet interface 2. 1G SFP Fiber Slot 3. HDMI IN 4. HDMI LOOP OUT 5. Stereo Input (unbalanced) a. Can be embedded on to the output stream signal 6.
Purelink VIP-T400 User Manual V1.0 Front Panel - DECODER (receiver) 1. ACT LED: a. Turns green whenever 4K HDMI & USB over IP Extender is powered 2. LINK LED a. On Encoder is linked to at least one Decoder with video signal b.
Purelink VIP-T400 User Manual V1.0 Rear Panel – DECODER (receiver) 1. RJ45 Connector o Self-adaptive Ethernet interface 2. 1G SFP Fiber Port 3. HDMI OUT 4. Stereo Input (unbalanced) a. Can be embedded on to the output stream signal 5. Stereo Output (Unbalanced) *Unicast mode only a.
Purelink VIP-T400 User Manual V1.0 Available Functions when connected over a Network In addition video, audio, USB, IR and RS232 transport over networks, the VIP-T400 provides network access to the following functions: Built in web server • • Built in web server The built-in web server provides the following functionality •...
Extension - Point to Point To use the VIP-T400 as a point-to-point system, there is no need for a network, you can directly connect the ENCODER and DECODER by CAT or Fiber to create an extender solution. It is possible to create a...
Option 1: Via connection to a Decoder When connected by CAT or Fiber cable to a VIP-T400 Decoder, and the Encoder and Decoder are set to the same Channel and no video input present at the Encoder, the VIP-T400 Decoder will display the ‘Remote IP’...
When connected a display, the Decoder will display the ‘Local IP’ in the lower right corner of the splashscreen. How to find all IP Addresses of a VIP-T400 system Option 1: Using a VIP-T400 endpoint with known IP Address: Using the VIP endpoint with known IP address: enter the IP address in to a browser. In the Utilities section>Console API Commands field, enter...
Purelink VIP-T400 User Manual V1.0 Option 2: Using VPX Management Software VPX Management software allows for automatic detection of all VIP-T400 devices on the network, as long as the software is on a Windows computer or VPX Commander that is in the same subnet.
Page 15
Purelink VIP-T400 User Manual V1.0 The next page will be as shown below. Select the “Change Adapter Settings”. When you are in the Change Adapter Settings page as shown below, select the LAN adapter that you will use to communicate with the VIP-T400system.
Page 16
Note: Do not deselect the checkbox or change the selections of any other properties in the menu. When the window changes to the Properties page for the Internet Protocol Version 4, enter the same IP subnet as the VIP-T400system. (VIP-T400 default address is 169.254.nnn.nnn)
Purelink VIP-T400 User Manual V1.0 Setting up your Mac computer to communicate on the same subnet Opening Network Page From the top menu bar, you can either click on the network symbol Or click on the Apple icon in the upper left, and the select system preferences:...
Page 18
Purelink VIP-T400 User Manual V1.0 Then select Network: Select the appropriate network adapter from the list in the left pane, and then set the correct IP subnet parameters.
IGMP Snooping V2 and Jumbo Frame. We recommend the PureLink switch line as they are AV over IP purpose built and ready for use out of the box in closed systems. The PureLink line of network switches are all either L2+ or L3 switches depending on the model, and support CAT and Fiber transport.
Connections Power Each VIP-T400 can be powered by PoE 802.3af via the RJ45 port, or from the included AC to 12Vdc power adapter. When multiple VIP-T400s are present in a rack system, and are connected by fiber, or PoE is not an option, we recommend our RPS-1218, eighteen channel 12VDC UL listed power supply.
RS-232 connections default to a follow video mode. Passthrough – breakaway / layered switching Using the layered switching feature (Free Routing) of the VIP-T400, you can break away the RS-232 and route it separately from the audio, video, USB, and IR layers.
Press the up or down button to change the channel (0 <> 999) • Reset to Factory defaults After confirming VIP-T400 endpoint is powered up, press and hold the recessed Reset button until the Power and Link LED flash at the same time, then release the Reset button.
TERMS & CONDITIONS PureLink shall repair or replace the Product if it develops a material fault during the period of warranty, on condition that i) the Product has only been subject to normal use in a domestic or commercial environment in a manner consistent with its...
Page 24
Most problems can be corrected over the phone through close cooperation between Customer and a PureLink technician. To better enable PureLink to address a warranty claim, please have the Product’s serial and model numbers. If PureLink, in its sole discretion, determines that an on-site visit or other remedial action is necessary, PureLink may send a representative to Customer’s site.
