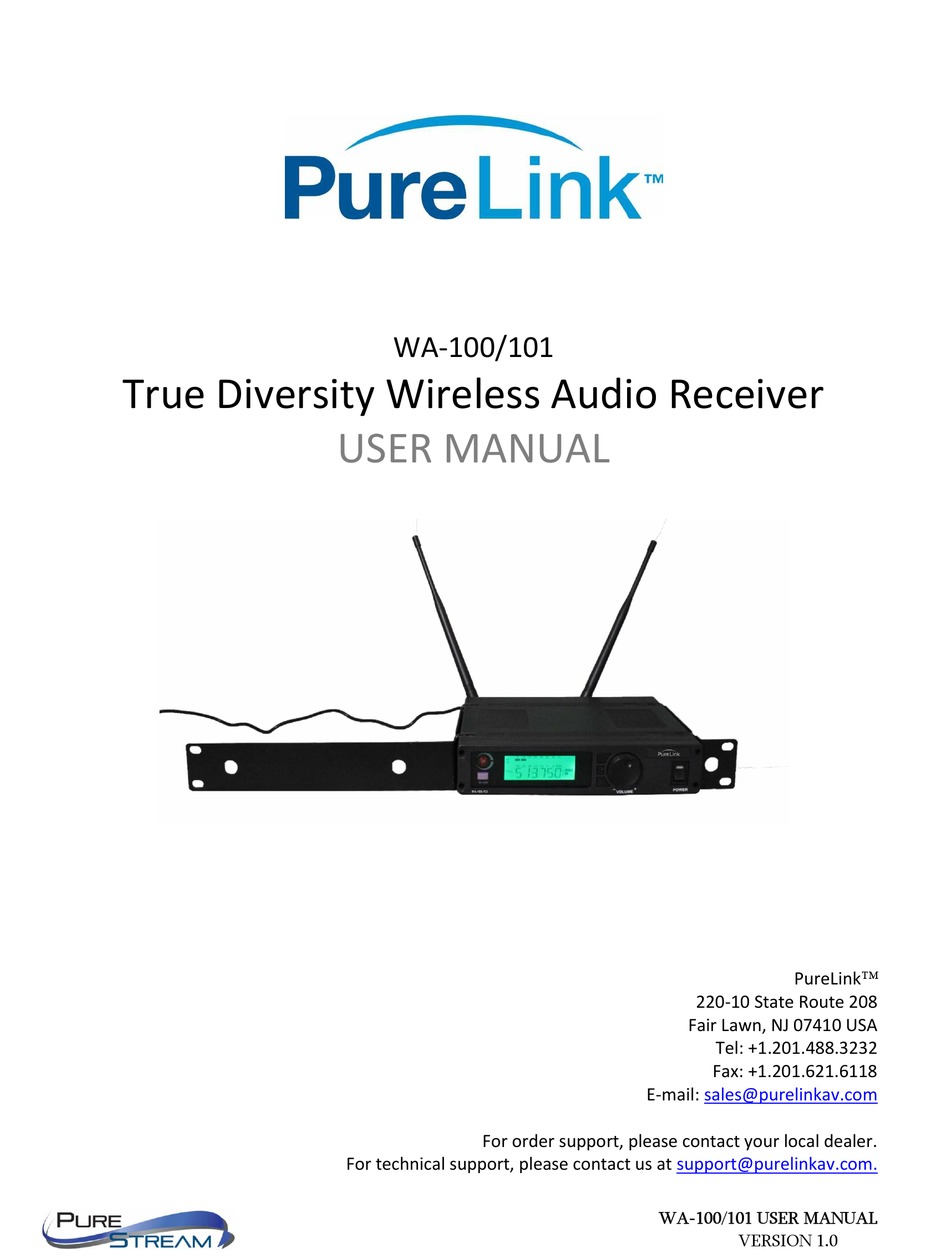

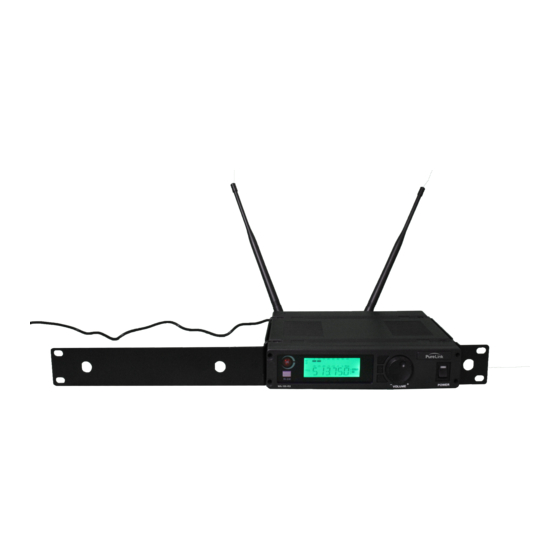

- Page 1 True Diversity Wireless Audio Receiver USER MANUAL PureLink 220-10 State Route 208 Fair Lawn, NJ 07410 USA Tel: +1.201.488.3232 Fax: +1.201.621.6118 E-mail: sales@purelinkav.com For order support, please contact your local dealer. For technical support, please contact us at support@purelinkav.com. WA-100/101 USER MANUAL VERSION 1.0...
-
Page 2: Table Of Contents
3) IR-SW button ............................6 4) Scan button ............................6 5) Information Display ..........................7 Rear Panel ..............................8 Setting up the WA-100/101 Receiver ......................9 Synchronizing the Receiver and Transmitter ....................9 Setting the Receiver ..........................9 Setting the Transmitter ..........................9 WA-BP1 Beltpack .......................... -
Page 3: What's In The Box
Transmitter Options WA-BP1 Beltpack for headset or lav mics: 512 – 525 MHz Band o Only works with the WA-100 WA-BP2 Beltpack for headset or lav mics: 570 – 583 MHz Band o Only works with the WA-101 ... -
Page 4: Beltpack Microphone Options
2x AA rechargeable batteries for beltpacks, podium or handheld mics For simplicity, systems can be purchased as a single SKU. Wireless Audio Kit SKUs WA-100B o WA-100 Receiver, WA-BP1 beltpack, WA-LV1 microphone: 512 – 525 MHz Band WA-100H o WA-100 Receiver, WA-HH1 Handheld mic: 512 –... -
Page 5: Product Description
WA-100/101 receivers can be mounted in a 1U rack space as either a single receiver, or you can connect two receivers together with the WA-100/101 RACK2 kit. An option antenna distribution system is available when using multiple recievers. -
Page 6: Front
Transmitter. In order for this function to operate correctly, you must have all transmitters, currently assigned channels, to be on. The Receiver will scan and detect which channels that are unused are the best next option to use within your system. WA-100/101 USER MANUAL VERSION 1.0... -
Page 7: Information Display
2. Selected Channel 3. Output volume level (XLR and ¼”) 4. Lock state 5. Transmitter battery level (If connection established) 6. RF Strength meter 7. Audio level meter 8. Antenna A or B in indicator WA-100/101 USER MANUAL VERSION 1.0... -
Page 8: Rear Panel
Rear Panel 1. Power Adapter input 2. Antenna input A 3. XLR Balanced audio output 4. 1.4” Unbalanced audio output 5. Antenna input B WA-100/101 USER MANUAL VERSION 1.0... -
Page 9: Setting Up The Wa-100/101 Receiver
Setting up the WA-100/101 Receiver Synchronizing the Receiver and Transmitter Setting the Receiver You can set the frequency of the Receiver using the Set button, and the up and down buttons. If the Lock indicator shows the setup functions are locked, press the Set button twice, the press the down button, then press the Set button twice again to enter in to frequency adjustment mode. -
Page 10: Wa-Hh1 Handheld Microphone
Receiver and Transmitter are communicating. When the Receiver IR LED turns off the Transmitter synchronization is complete. Check the Transmitter LED display to confirm. You will now have live audio signal in to the Receiver. WA-100/101 USER MANUAL VERSION 1.0... -
Page 11: Warranty
TERMS & CONDITIONS PureLink shall repair or replace the Product if it develops a material fault during the period of warranty, on condition that i) the Product has only been subject to normal use in a domestic or commercial environment in a manner consistent with its... - Page 12 Most problems can be corrected over the phone through close cooperation between Customer and a PureLink technician. To better enable PureLink to address a warranty claim, please have the Product’s serial and model numbers. If PureLink, in its sole discretion, determines that an on-site visit or other remedial action is necessary, PureLink may send a representative to Customer’s site.
Need help?
Do you have a question about the WA-100 and is the answer not in the manual?
