FX1070
Single-Mode DVI LC-Fiber Extender Set
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FX1070 and is the answer not in the manual?

Questions and answers

Summary of Contents for PureLink FX1070

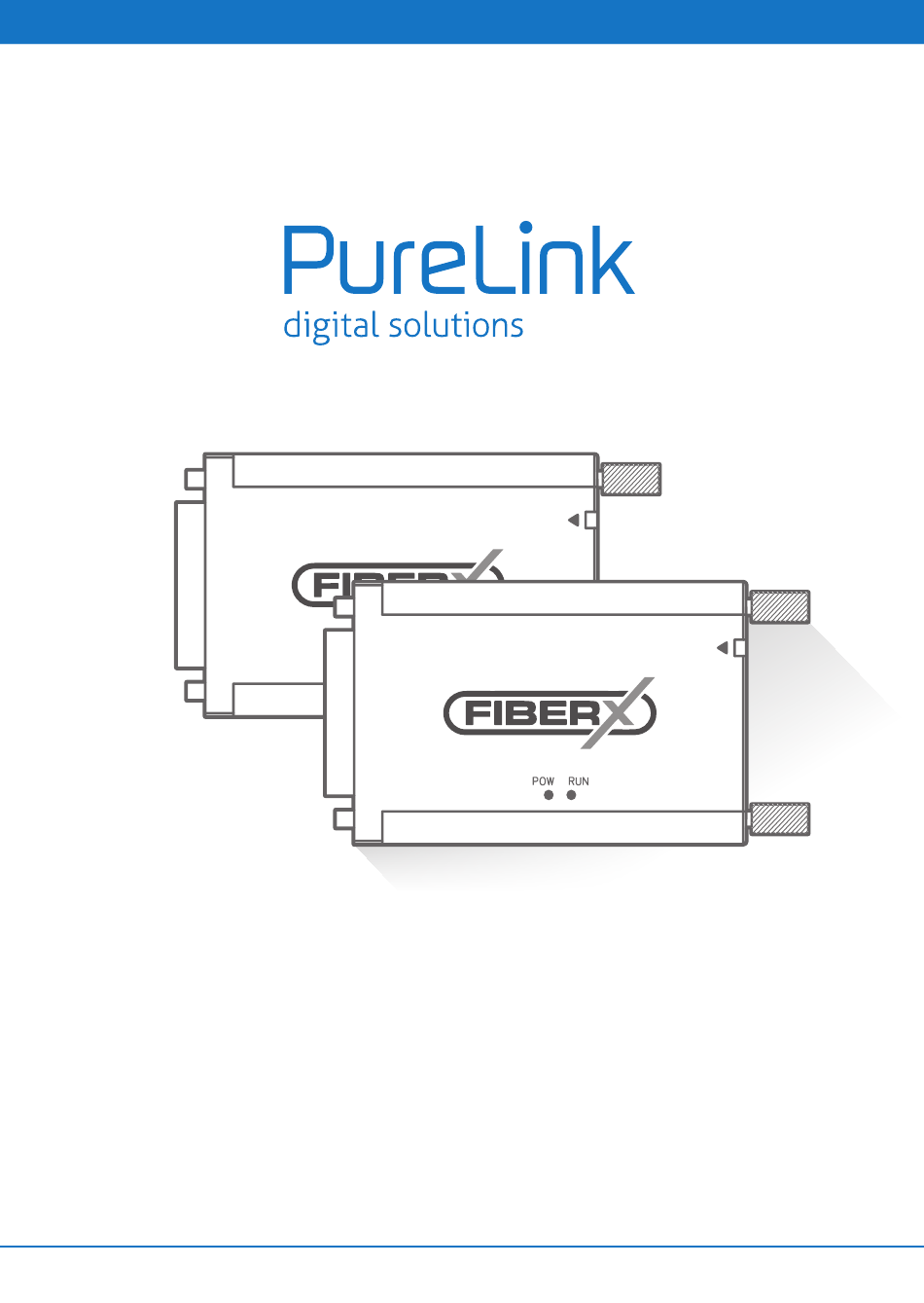

  • Page 1 FX1070 Single-Mode DVI LC-Fiber Extender Set Instruction Manual...
  • Page 2: Table Of Contents

    FX1070 | TABLE OF CONTENT CHAPTER PAGE Important safety instructions ������������������������������������������������������������������������������������������������������������������������������ 3 Introduction ������������������������������������������������������������������������������������������������������������������������������������������������������������� 4 Features ��������������������������������������������������������������������������������������������������������������������������������������������������������������������� 4 Application ��������������������������������������������������������������������������������������������������������������������������������������������������������������� 4 Package Includes ����������������������������������������������������������������������������������������������������������������������������������������������������� 4 Specifications ���������������������������������������������������������������������������������������������������������������������������������������������������������� 5 Layout ������������������������������������������������������������������������������������������������������������������������������������������������������������������ 6 - 7 Dimension ���������������������������������������������������������������������������������������������������������������������������������������������������������������� 8 Installation ��������������������������������������������������������������������������������������������������������������������������������������������������������������� 9 LED-Codes ���������������������������������������������������������������������������������������������������������������������������������������������������������������� 9 Maintenance ����������������������������������������������������������������������������������������������������������������������������������������������������������...
  • Page 3: Important Safety Instructions

    1. IMPORTANT SAFETY INSTRUCTIONS Read the operating instructions carefully and especially observe the safety information before using the device� If you do not follow the safety instructions and information on proper handling in this manual, we assume no liability for any resulting personal injury or damage to property� Such cases will invalidate the warranty/ guarantee�...
  • Page 4: Introduction

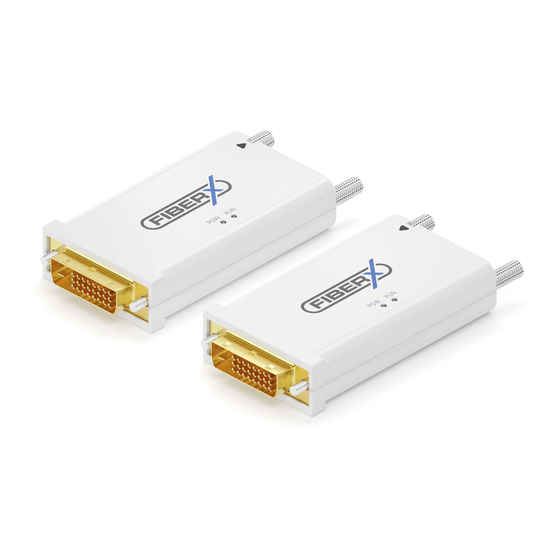

    2. INTRODUCTION The FX1070 set is a DVI fiber transmitter / receiver kit for up to 2Km distance transmission of max. 1080p / WUXGA signals� Using Single-Mode Fiber technology, the DVI signals incl� HDCP encryption are transmitted over only one Single-Mode 9/125 fiber core. Sources and display devices both feature galvanic isolation to avoid ground loops as well as humming effects.
  • Page 5: Specifications

    6. SPECIFICATIONS TX input, RX output: 24 pole DVI-D plug Fiber: LC simplex DC Power: Micro-B USB Data rate: 6�75 Gbps (2�25 Gbps per color) Resolution: WUXGA (1920x1200) / 60Hz Video Delay: 0 frames HDCP pass through: EDID emulation: Transparent EDID LED indicators: Link &...
  • Page 6: Layout

    7. LAYOUT DVI Port: 1. DVI Connector (Male): TX Extender: Connect to the DVI output of a source RX Extender: Connect to the DVI input of a monitor 2. Mounting Screw: TX Extender: Secure to/remove from the DVI mounting hole of a source RX Extender: Secure to/remove from the DVI mounting hole of a monitor Optical Port:...
  • Page 7 Top View: 1. LED Status Indicator - Power 2. LED Status Indicator - Link 3. DVI Connector (Male) TX Extender: Connect to the DVI output of a source RX Extender: Connect to the DVI input of a monitor 4. Mounting Screw TX Extender: Secure to/remove from the DVI mounting hole of a source...
  • Page 8: Dimension

    8. DIMENSION The dimension is measured in millimetre and is proximate values�...
  • Page 9: Installation

    9. INSTALLATION DIAGRAM CAUTION: DO NOT connect power to the device until all other connections are made and the unit is installed. Single-Mode 10. LED CODES The blue LED will appear on the transmitter and receiver after all the product connections are completed� Red LED On: Power supply�...
  • Page 10: Maintenance

    You can easily remove dust using a long-haired, soft and clean brush� 13. WARRANTY AND LIABILITY PureLink warrants this product to be in good working order for a period of one year from the date of purchase� The manufacturer guarantees full statutory warranty terms on the device only, as the ma- nufacturer has no influence on installation, warranty only applies to the product itself.
  • Page 11: Ce Conformity

    • Consult the dealer or an experienced radio/TV technician for help� Important: Changes or modifications to this product not authorized by PureLink could void the elec- tromagnetic compatibility (EMC) and wireless compliance and negate your authority to operate the product�...
  • Page 12: Disclaimer

    FCC/IC radio frequency exposure limits� This device should be operated with a minimum separation distance of 20 cm (8 inches) between the equipment and a person’s body� Responsible party (contact for FCC matters only): PureLink GmbH Von-Liebig-Straße 10 48432 Rheine Germany 17.
  • Page 13 ENGLISH -13-...
  • Page 14 -14-...
  • Page 15 -15-...
  • Page 16 0049 (0)5971-800 299 -0 Fax: 0049 (0)5971-800 299 -99 E-mail: info@purelink�de Internet: www�purelink�de © 2020 PureLink GmbH� All rights reserved� All trade names are registered trademarks of respective manufactures listed� v1 | 2020-08 HDMI is a trademark of HDMI Licensing LLC�...
