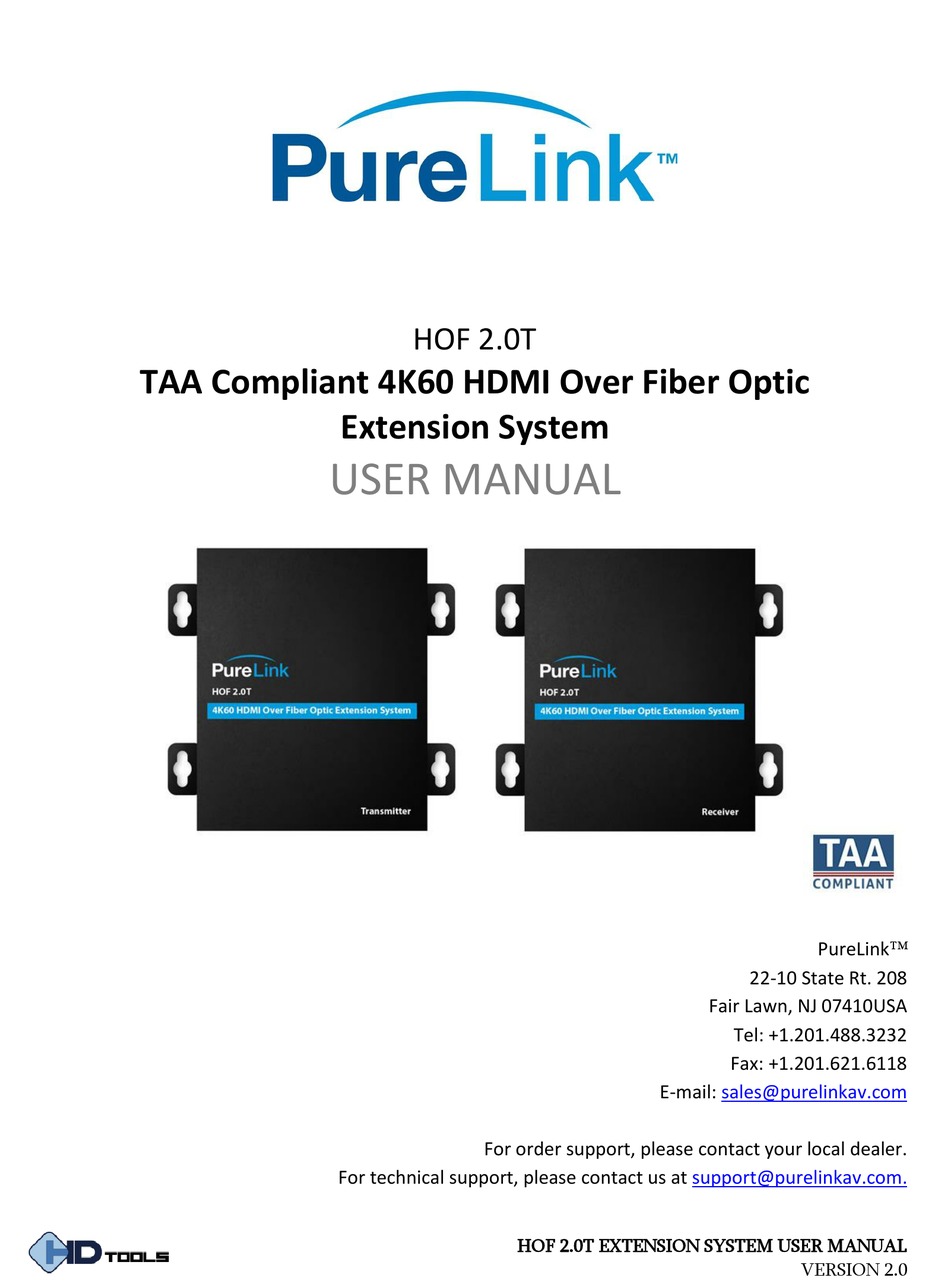

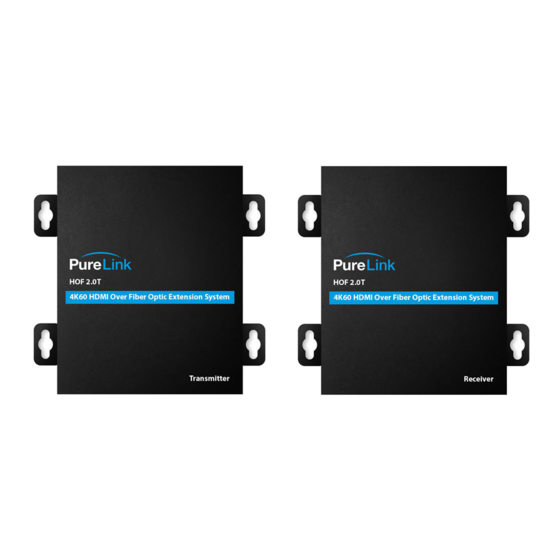

HOF 2.0T
TAA Compliant 4K60 HDMI Over Fiber Optic
Extension System
USER MANUAL
PureLink
22-10 State Rt. 208
Fair Lawn, NJ 07410USA
Tel: +1.201.488.3232
Fax: +1.201.621.6118
E-mail:
sales@purelinkav.com
For order support, please contact your local dealer.
For technical support, please contact us at
support@purelinkav.com.
HOF 2.0T EXTENSION SYSTEM USER MANUAL
VERSION 2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HOF 2.0T Tx and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PureLink HOF 2.0T Tx

  • Page 1 HOF 2.0T TAA Compliant 4K60 HDMI Over Fiber Optic Extension System USER MANUAL PureLink 22-10 State Rt. 208 Fair Lawn, NJ 07410USA Tel: +1.201.488.3232 Fax: +1.201.621.6118 E-mail: sales@purelinkav.com For order support, please contact your local dealer. For technical support, please contact us at support@purelinkav.com.
  • Page 2: Table Of Contents

    Thank You for Purchasing This Product For optimal performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge Protection Device Recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
  • Page 3: Introduction

    Introduction The HOF 2.0T Tx/Rx is TAA Compliant and offers a powerful solution for Ultra HD, long-distance distribution of A/V, KVM, and control signals over fiber. Ultra HD/4K HDMI 2.0 (18Gbps), embedded audio, USB, and bi-directional RS-232 and IR are all supported over distances up to 1.24 miles (2000 m.) using PureLink’s TotalWire LC-terminated fiber optic cables.
  • Page 4: Specifications

    Specifications Inputs: (1) HDMI Type A female, (1) USB Type B Connector Type/s (Tx) Outputs: (1) SFP 10G+ Fiber module Control: (1) DB9 female [RS-232], (2) 3.5mm jack [IR Input/Output] Inputs: (1) SFP 10G+ Fiber module Connector Type/s (Rx) Outputs: (1) HDMI Type A female, (2) USB Type A Control: (1) DB9 male [RS-232], (2) 3.5mm jack [IR Input/Output] 4K@60Hz 4:4:4 18Gbps (6Gbps per color) 1080p@60Hz 16bit, 3D, HDR, Resolutions...
  • Page 5: Operation

    Operation Installation Please note: the working distance is subject to the type of Fiber Optic cable used and the type of transceiver used. HOF 2.0T Transmitter Panel View HOF 2.0T EXTENSION SYSTEM USER MANUAL VERSION 2.0...
  • Page 6: Hof 2.0T Receiver Panel View

    HOF 2.0T Receiver Panel View LED Indicators • When the Green LED is on = unit is getting power • When the Blue LED is on = Fiber link between transmitter and receiver is connected HOF 2.0T EXTENSION SYSTEM USER MANUAL VERSION 2.0...
  • Page 7: Dip Switch Functionality

    Dip Switch Functionality Switch Function SW 1 IR Extender Function RS232 Extender Function USB Keyboard Mouse Extender SW 2 Function SWITCH position 1 and 2 must be positioned as above instructed above: IR: SW1 ON (down position) + SW2 OFF (up position) RS232: SW1 OFF (up position) + SW2 ON (down position) USB: SW1 ON (down position) + SW2 ON (down position) RS232...
  • Page 8: Warranty

    You may also have other rights which vary from state to state. TERMS & CONDITIONS PureLink shall repair or replace the Product if it develops a material fault during the period of warranty, on condition that i) the Product has only been subject to normal use in a domestic or commercial...
  • Page 9: Customer Service

    RMA number. On any products returned and accepted with an RMA number, return freight charges following repair of items under warranty shall be paid by PureLink, shipping by the standard ground carrier of its choice. ADVANCE WARRANTY REPLACEMENTS PureLink’s advance replacement service offers a Replacement Unit upon request - free of charge for...
