PureLink Luxi Electronics Presenter TPR-110CR Quick Start Manual

P R E S E N T E R ™
Q ui ck S tar t Guid e
Thank you for purchasing the Luxi Electronics® Presenter product. Please read through this manual before using the product.
How the product functions: Think of the daisy chain as the flow of a river; each transmitter (Tx) connects to a source device and loads
the signal to the river flow; each receiver (Rx) unloads the signal from the river flow and sends it to the display it is connected to.
The front panel and the RS-232 controls determine which source signal goes to which display.

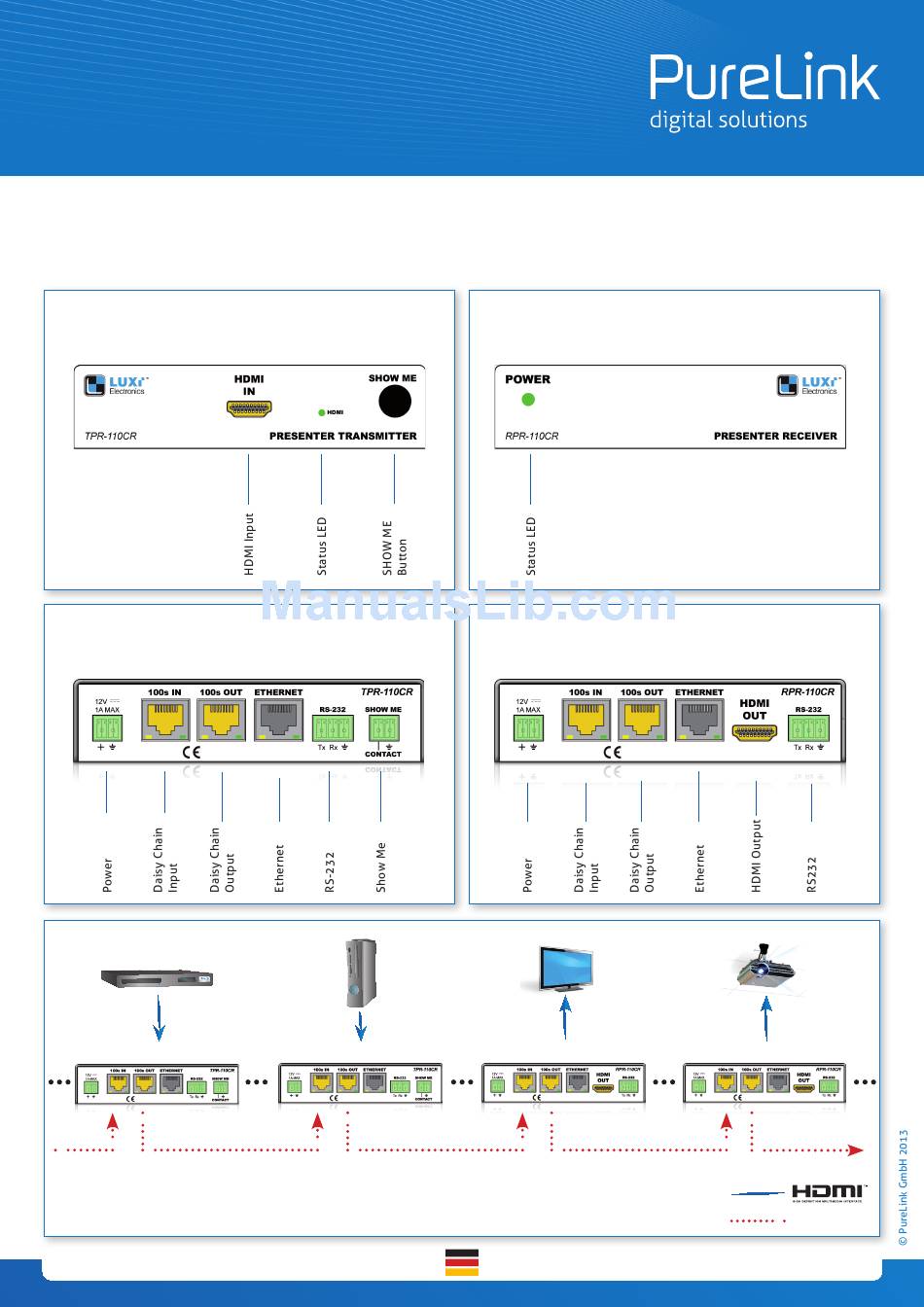

Transmitter - front view
Transmitter - rear view
System diagram
TX
Power options:
This product can draw power from other Presenter products in the chain
or from an optional external power supply.
K n o w - H o w . Q u a l i t y . D e s i g n .
PureLink GmbH | Von-Liebig-Straße 10 | 48432 Rheine | Germany | Tel.: 0049 (0)5971-800 299-0 | Fax: 0049 (0)5971-800 299-99 | E-mail: info@purelink.de | Internet: www.purelink.de
Receiver - front view
Receiver - rear view
TX
I n n o v a t i o n G e r m a n E n t e r p r i s e s .
RX RX
CAT 5, 6, 7
