Ancona Aria Manual

Single handle pull-out kitchen faucet

Aria

Single Handle Pull-out Kitchen Faucet

STANDARDS

1.8 gpm/6.8 L/min

2020-07-02 MAAN4118-3

Helpful Information

Tools:

PLUMBERS PUTTY

SAFETY GLASSES

CHANNELLOCKS

SEALED-TUBE

Attention:

Important

FLASHLIGHT

BASIN WRENCH

SCREWDRIVER

ADJUSTABLE

WRENCH

PLIERS

HEX-KEY

TAPE

tools for future use!

Table of Contents

Do you have a question about the Aria and is the answer not in the manual?

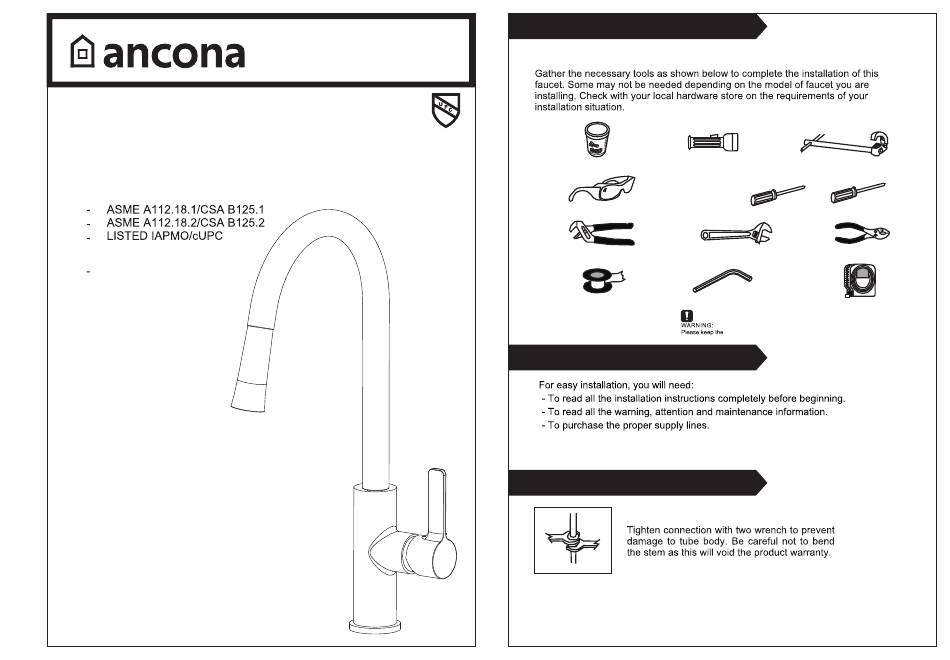

Page 1 Helpful Information Tools: Aria © ® Single Handle Pull-out Kitchen Faucet PLUMBERS PUTTY FLASHLIGHT BASIN WRENCH STANDARDS SAFETY GLASSES SCREWDRIVER CHANNELLOCKS ADJUSTABLE WRENCH PLIERS 1.8 gpm/6.8 L/min SEALED-TUBE HEX-KEY TAPE tools for future use! Attention: Important 2020-07-02 MAAN4118-3...
Page 2 Installation size map Installation /16 (116.1 mm) Position the faucet in order on the counter top as shown. Don't forget the O-ring. Assemble gasket assembly and lock nut to faucet threaded sleeve by hand and tighten the screws with screwdriver. 8 7/8 (226 mm) / 16...
Page 3 Connect to water supply lines with either Check all connections at arrows for risers with the coupling nuts or leaks and retighten if necessary. BUT DON'T OVERTIGHTEN supplied tube head interior connector or Checking and Testing Test Faucet Installation Remove the shower by hand. Turn the faucet handle all the way on, turn on hot B.
Page 4 Cleaning and care Parts list PART NAME Daily cleaning and care are required in order to keep the product shining and working properly. Shower Check valve 1. Clean it with water and dry it with soft cloth. Shower hose 2. Clean the product with gentle liquid or glass cleaner. 3.
