Le Duo Faucet
Flow Rate Chart
G P M
3
2 5
2
1 5
0
20
30
0
10
05-31-2017
40
50
60
70 80
P S I
Helpful Information
Tools:
Gather the necessary tools as shown below to complete the installation of this
faucet. Some may not be needed depending on the model of faucet you are
installing. Check with your local hardware store on the requirements of your
installation situation.
PLUMBERS
PUTTY
FLASHLIGHT
SAFETY
GLASSES
CHANNEL LOCKS
ADJUSTABLE WRENCH
SEALED-TUBE
HEX-KEY
A .
B .
C .
Important
Tighten connection
with two wrench to
prevent damage to
tube body. Be
careful not to bend
the stem as this will
void the product
800-101
warranty.
BASIN WRENCH
SCREW DRIVER
PLIERS
TAPE
Connect to water supply lines with either
A 3 8 O D copper tubing ball nose
risers with the coupling nuts or
B 3 8 copper tubing no ball with
supplied tube head interior connector or
C IPS faucet connectors 1 2
Advertisement
Related Manuals for Ancona Le Duo
Summary of Contents for Ancona Le Duo

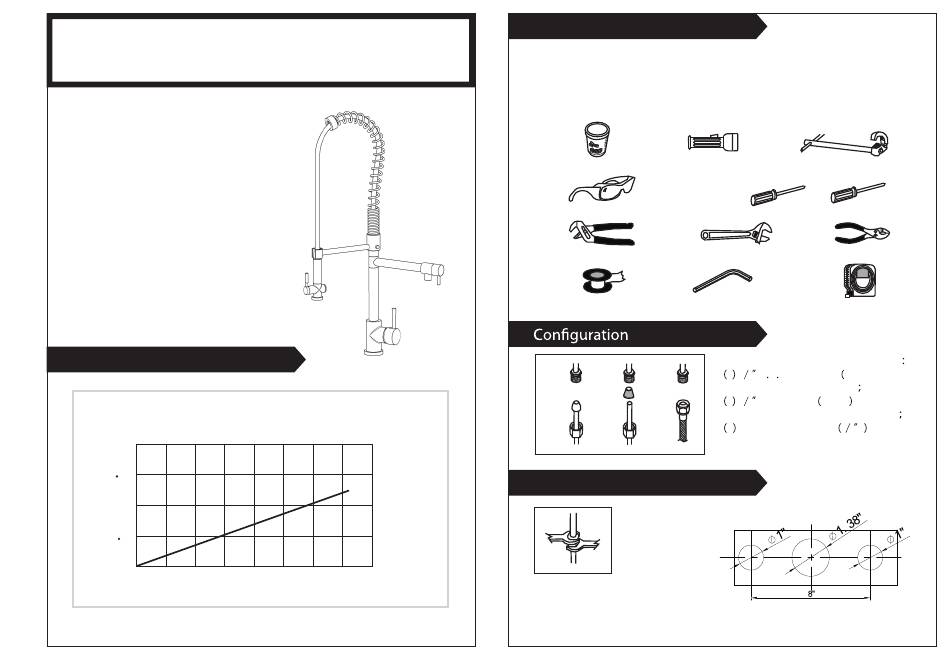

- Page 1 Helpful Information Le Duo Faucet Tools: Gather the necessary tools as shown below to complete the installation of this faucet. Some may not be needed depending on the model of faucet you are installing. Check with your local hardware store on the requirements of your installation situation.
- Page 2 Installation size map Three Hole Installation Step 1: Insert plate (1) and rubber washer (2) before inserting spout body into sink deck. Step 2: Repeat steps D to F from Single Hole Installation. Step 3: Secure plate (1). Step 4: Securing all connectors: Ensure all connections are tightly set in place to avoid leakage.
- Page 3 WARNING ATTENTION Ensure hoses are tightly screwed into positon Assurez-vous de bien serrer les embouts as they may move during transportation and de chaque Tuyau car ils peuvent installation. se dévisser lors du transport – bien valider après l’installation aussi Step 1: Etape 1 : Unscrew shank...
-
Page 4: Information Utile
Information utile Robinet Le Duo Outils: Réunissez les outils nécessaires comme montrés ci-dessous, pour compléter l'installation de ce robinet. Certains peuvent ne pas être requis, selon le modèle du robinet que vous installez. Vérifiez avec votre quincaillerie locale sur les exigences de votre situation d'installation. - Page 5 Carte de dimension d'installation Étape 1: Insérrez la plaque (1) à trois trous et l’anneau de caoutchouc noir (2) avant d’inserrer le robinet dans l’évier. Étape 2: Répetez les étapes D à F de l’Installation à un orifice. Étape 3: Serrez bien en place la plaque (1). Étape 4: Validez tous les raccords afin d’assurez qu’il n’ya pas les fuites d’eau.
- Page 6 WARNING ATTENTION Ensure hoses are tightly screwed into positon Assurez-vous de bien serrer les embouts as they may move during transportation and de chaque Tuyau car ils peuvent installation. se dévisser lors du transport – bien valider après l’installation aussi Step 1: Etape 1 : Unscrew shank...
