LITTLE WONDER

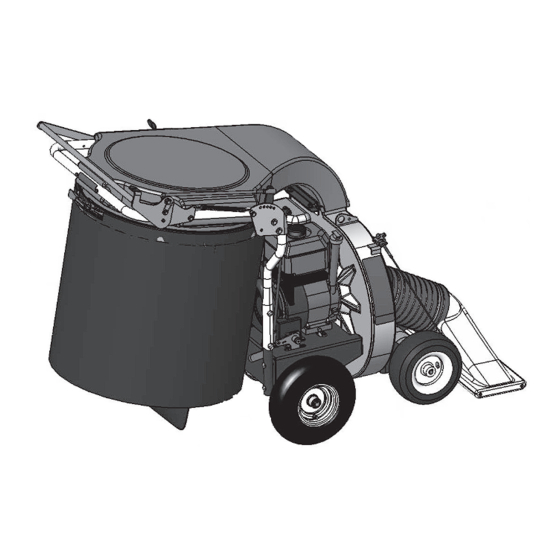

HPV
High Performance Vac
Self Propelled
MODELS:
5621 & 5631

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HPV and is the answer not in the manual?

Questions and answers

Related Manuals for Little Wonder HPV

Summary of Contents for Little Wonder HPV

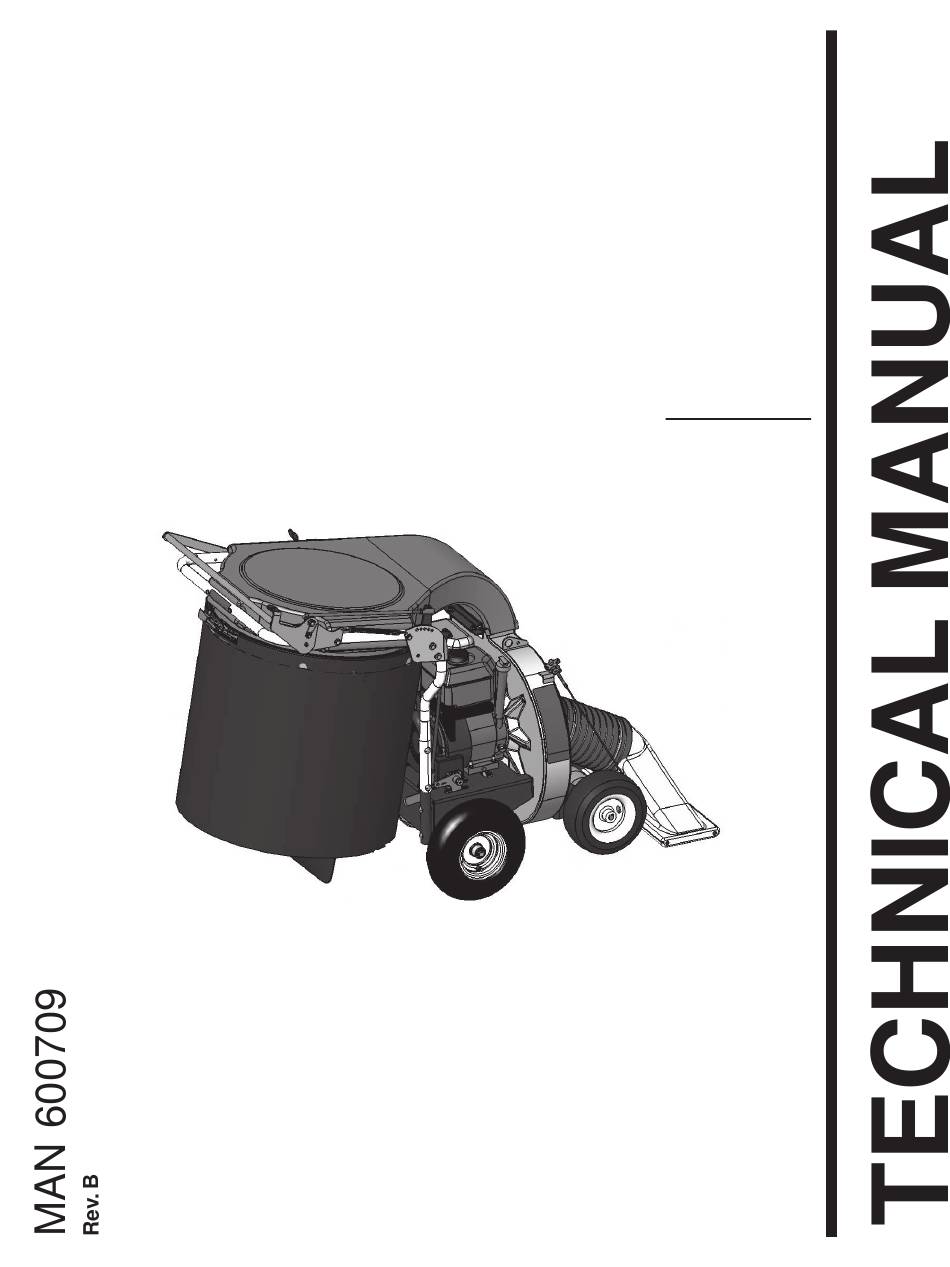

  • Page 1 LITTLE WONDER High Performance Vac Self Propelled MODELS: 5621 & 5631...
  • Page 2 CALIFORNIA WARNING Proposition 65 Warning The engine exhaust from this product Diesel engine exhaust and some of contains chemicals known to the State its constituents are known to the State of California to cause cancer, birth of California to cause cancer, birth defects or other reproductive harm.

  • Page 3: Table Of Contents

    Schiller-Pfeiffer designs and builds its equipment to serve many years in a safe and productive manner. For longest life, use this machine only as directed in the manual, keep it in good repair and follow safety warnings and instructions. You'll always be glad you did. LITTLE WONDER Division of Schiller-Pfeiffer, Incorporated 1028 Street Road, P.O. Box 38...

  • Page 4: Safety

    LITTLE SAFETY WONDER NOTICE !!! This symbol means: ATTENTION! Unauthorized modifications may present extreme BECOME ALERT! safety hazards to operators and bystanders and could also result in product damage. Your safety and the safety of others is involved. Schiller-Pfeiffer strongly warns against, rejects and disclaims any modifications, add-on accessories or Signal word definitions product alterations that are not designed, developed,...
  • Page 5 See page 9. It is your responsibility to replace the decals (labels) 5. Roll HPV base unit out of box. when they become hard to read. The location of these decals and their part numbers for ordering are...
  • Page 6 LITTLE SAFETY WONDER...
  • Page 7 8. Do not override or remove any safety devices. spark plug before removing material. Don’t attempt to repair High Performance Vac. Have repairs made by qualified Little Wonder dealer or FAN COASTS AFTER THE ENGINE HAS BEEN repairman. See that only Little Wonder and TURNED OFF.
  • Page 8 LITTLE SAFETY WONDER B. WARNINGS - "DO'S" Always dress properly. Do not wear loose clothing or jewelry. They can be caught in moving parts. Use of sturdy gloves, non-skid footwear and safety glasses are recommended. Always wear ear protectors where possible. Use face filter to avoid breathing dust. Always stay alert.
  • Page 9 LITTLE SAFETY WONDER C. Engine/ Fuel Warnings - “Don’ts” Don’t fuel, refuel or check fuel while smoking or near an open flame or other ignition source. Stop engine and be sure it is cool before refueling. Don’t leave the engine running while the High Performance Vac is unattended. Stop engine before transporting High Performance Vac from one place to another.

  • Page 10: Assembly

    LITTLE ASSEMBLY WONDER ASSEMBLY 1. Attach the collector assembly to the base unit: 5. Attach nozzle assembly to base unit: • Bolt the collector assembly to the frame with • Attach one end of the hose to the nozzle 4 sets of bolts, washer, and nuts assembly with the bridge clamp Assembly •...
  • Page 11 LITTLE ASSEMBLY WONDER...
  • Page 12 LITTLE ASSEMBLY WONDER SPEED CONTROLLER SETUP • Verify the Actuator reversing function by depressing the Reversing Lever (Red) and then releasing it. It should work smoothly and, when released, it should fully return to the "normal" position. 1. Attach the Lower Connecting Rod Assembly to the Lower Bellcrank.
  • Page 13 LITTLE ASSEMBLY WONDER • • If the Actuator Pin does not enter into the Remove the nut that holds the Rod End to Rear Slot as shown below, the Upper the Upper Bellcrank. Connecting Rod Assembly is too short and •...
  • Page 14 LITTLE ASSEMBLY WONDER • PUT OIL AND GASOLINE IN ENGINE Depress the Bail Handle and verify that the Actuator Pin smoothly engages the Front BEFORE STARTING Slot on the Bail Handle. HANDLE FUEL WITH CARE. IT IS HIGHLY FLAMMABLE. FUELING A HOT ENGINE OR NEAR AN IGNITION SOURCE CAN CAUSE A FIRE AND RESULT IN SERIOUS PERSONAL •...

  • Page 15: Operation

    LITTLE OPERATION WONDER STARTING INSTRUCTIONS SELF-PROPELLED INSTRUCTIONS With engine running (and Transaxle Lever in Engage position) slowly press Bail Handle downward to FUEL IS EXTREMELY FLAMMABLE. HANDLE IT selfpropel vacuum FORWARD. The farther down you WITH CARE. KEEP AWAY FROM IGNITION press the Bail Handle, the faster the speed of the SOURCES.
  • Page 16 LITTLE OPERATION WONDER VACUUMING Adjust nozzle to desired height by turning the nozzle control knob, secure position with wing nut. KEEP RECOIL STARTER SCREEN AND ENTIRE Vacuum debris from lawn or paved surfaces. ENGINE CLEAR OF ALL DEBRIS. DO NOT Vacuum the following: leaves, small twigs and sticks, OPERATE ENGINE WITH AN acorns, thistles, seed pods, grass clippings, straw,...

  • Page 17: Storage & Maintenance

    STORAGE & MAINTENANCE WONDER STORAGE After each use, run HPV with the empty bag attached to help clear out any loose material in the housing. When not in use store High Performance Vac in sheltered area (a dry place) not accessible to children.
  • Page 18 B. Service Information High Performance Vac Unit On behalf of everyone at CGC, Inc., we would like to thank you for your purchase of a Little Wonder High Contact your local Little Wonder dealer. Performance Vac. This professional debris handling...
  • Page 19 LITTLE SERVICE WONDER REMOVING THE FAN AND REINSTALLATION Loosen (but do not remove) 2 hex head bolts that Remove spark plug wire from spark plug. attach Fixed Idler Bracket to Deck. (Use 7/16” wrench or socket.) This allows clearance Remove nozzle assembly. for belt to be removed.

  • Page 20: Parts Assembly

    LITTLE PARTS ASSEMBLY WONDER FIGURE 1 CONNECT TO ENGINE THROTTLE LEVER...
  • Page 21 LITTLE PARTS ASSEMBLY WONDER FIGURE 1 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 600901 ENGINE-6.5HP 1-41 600546 BOLT-5/16-8 X 3/4 600199 ASSY-DECK 1-42 910503 BOLT-5/16-24 X 3/4 600193 TRANSAXLE 1-43 720518 LOCKNUT-3/8-16 600184 HANDLE MOUNT 1-44 720594 NUT-FLANGE 3/8-16 600251 BELT GUARD 1-45...

  • Page 22: Engine Assembly

    LITTLE ENGINE ASSEMBLY WONDER FIGURE 2...
  • Page 23 LITTLE ENGINE ASSEMBLY WONDER FIGURE 2 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 600901 ENGINE-6.5HP RECOIL BOLT 600194 PULLEY-ENGINE 600249 STANDOFF-ENGINE 600200 BELT-V LV W/TRANS 600238 KEY-ENGINE PULLEY...

  • Page 24: Deck Assembly

    LITTLE DECK ASSEMBLY WONDER FIGURE 3 *CONCAVE SIDE OF SPRING WASHERS MUST FACE EACH OTHER...
  • Page 25 LITTLE DECK ASSEMBLY WONDER FIGURE 3 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 600199 DECK-LV W/TRANS 600231 BELLCRANK-DECK 600244 BRKT-BELLCRANK DECK 600264 BRKT-IDLER WLDMT 600266 LINK-BELLCRANK WLDMT 600219 STRAP-TORQUE LV 600204 BRKT-MOUNT TENSION 600203 BRKT-TENSION 600555 PIN-CLEVIS 1/2 X 1-1/2 3-10 600556 PIN-HITCH...

  • Page 26: Collector Assembly

    LITTLE COLLECTOR ASSEMBLY WONDER FIGURE 4...
  • Page 27 LITTLE COLLECTOR ASSEMBLY WONDER FIGURE 4 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 600101 DISCHARGE COLECTR 600130 HANDLE 600142 FLANGE CLAMP PLATE 600138 FLANGE ANGLE COLECTR 600242 BRKT-BELLCRANK HANDLE 1 600206 BELLCRANK HANDLE 600215 BAIL HANDLE 600211 REVERSE LEVER 600271 CAP-REVERSE LEVER 4-10...
  • Page 28 LITTLE LINER ASSEMBLY WONDER FIGURE 5...

  • Page 29: Liner Assembly

    LITTLE LINER ASSEMBLY WONDER FIGURE 5 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 600187 ASSY-HOUSING 600175 LINER 720592 BOLT-5/16-18 X 1 720511 WASHER-5/16 114C LOCKNUT-5/16-18...
  • Page 30 LITTLE COLLECTOR ASSEMBLY WONDER FIGURE 6...

  • Page 31: Collector Assembly

    LITTLE COLLECTOR ASSEMBLY WONDER FIGURE 6 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 600100 NOZZLE 600133 ASSY-NOZZLE CLMP PLATE 1 600183 BRKT-NOZZLE VER. 2" 114B NUT-FL 5/16-18...
