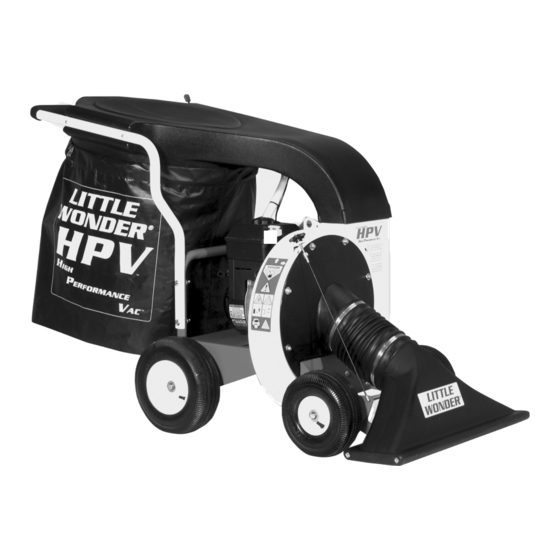

LITTLE WONDER
HPV
High Performance Vac
MODEL:
5611-00-59

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5611-00-59 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Little Wonder 5611-00-59

Summary of Contents for Little Wonder 5611-00-59

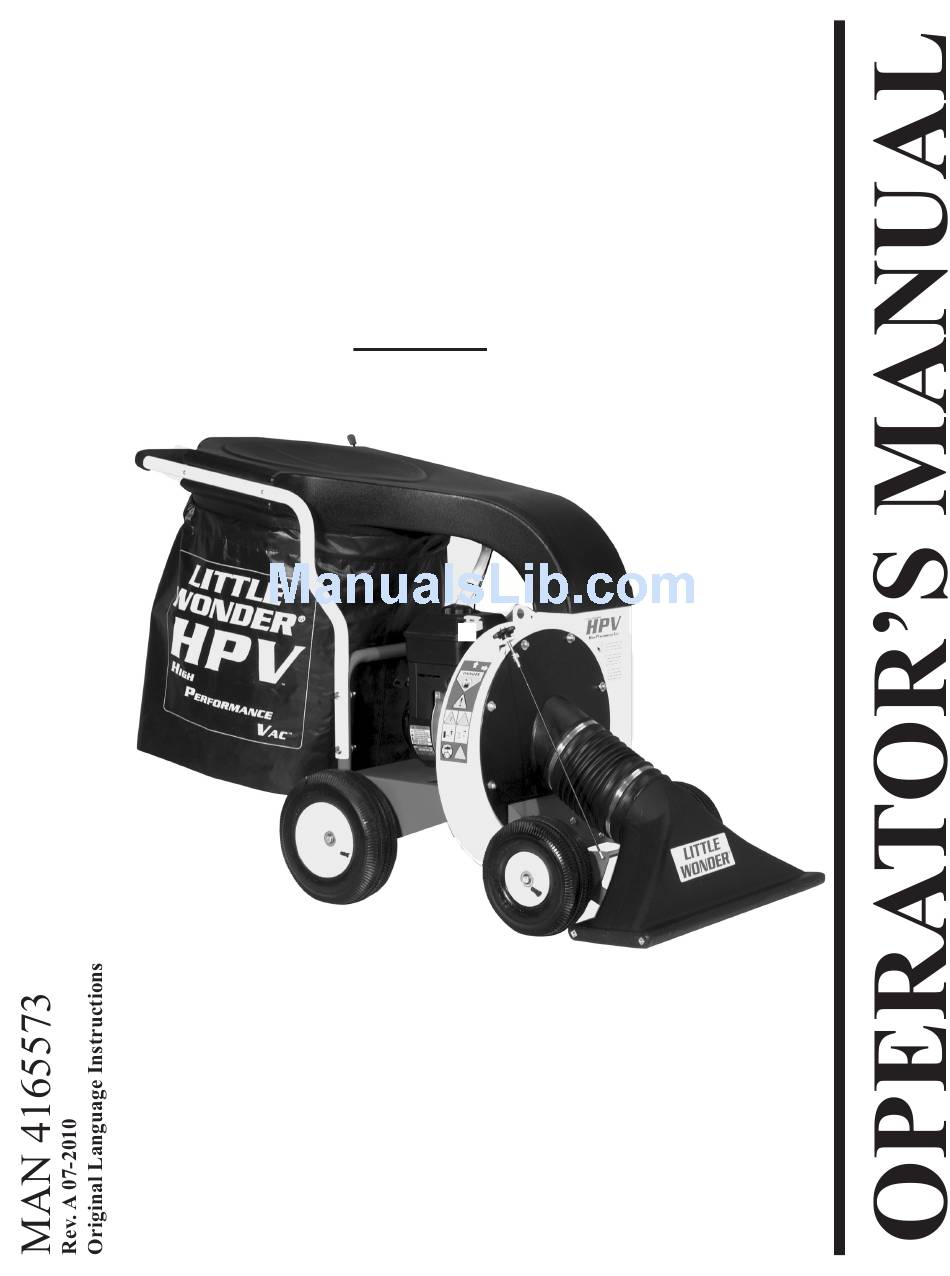

  • Page 1 LITTLE WONDER High Performance Vac MODEL: 5611-00-59...
  • Page 2 CALIFORNIA Proposition 65 Warning Diesel engine exhaust and some of its constituents are known to the State of California to cause cancer, birth defects and other reproductive harm. WARNING The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

  • Page 3: Table Of Contents

    IMPORTANT MESSAGE On behalf of everyone at Little Wonder, we would like to thank you for your purchase of a Little Wonder High Powered Vacuum This professional vac was designed to the highest standards to ensure you many hours of uninterrupted service.

  • Page 4: Safety

    LITTLE SAFETY WONDER HPV VAC This symbol means: NOTICE !!! ATTENTION! Unauthorized modifications may present extreme BECOME ALERT! safety hazards to operators and bystanders and could also result in product damage. Your safety and the safety of others is involved. Schiller Grounds Care, Inc.
  • Page 5 LITTLE SAFETY WONDER HPV VAC MACHINE PREPARATION Operator preparation and training Read the Operation & Safety SITE PREPARATION AND CIRCUMSTANCES Manual – Evaluate the terrain to determine how to safely – If an operator or mechanic cannot read English, it perform the job.
  • Page 6 LITTLE SAFETY WONDER HPV VAC OPERATING SAFELY INTERRUPTING OPERATION Before leaving the operator's position: IN GENERAL - Park on level ground. – Use extra care when loading or unloading the - Shut off the engine. machine into a trailer or truck. Stop the engine, and wait until the fan stops moving: –...

  • Page 7: Maintenance Safety

    LITTLE SAFETY WONDER HPV VAC MAINTENANCE SAFETY When refueling or checking fuel level: - Stop the engine and allow to cool; In general - Do not smoke; Maintain machine according to manufacturer's sched- - Refuel outdoors only; ule and instructions for maximum safety and best - Use a funnel;...

  • Page 8: Labels

    LABELS LITTLE WONDER HPV VAC Rotating Fan: CUT / AMPUTATION HAZARD -Keep hands and other body parts out of blower housing. Thrown Object Hazard: -Keep bystanders away. Before Servicing: -Direct discharge into a -Stop engine. suitable receptacle. -Remove key (if applicable). -Remove spark plug wire(s).

  • Page 9: Labels

    LABELS LITTLE WONDER HPV VAC STOP 4165567 Thrown Object / Flying Debris Hazard -Do not operate without properly attached bag. -Stop engine before removing bag. 4165566 Rotating Blades: CUT / AMPUTATION HAZARD -Keep hands out of fan housing. -Stop engine and remove spark plug wire before cleaning or servicing.

  • Page 10: Controls

    LITTLE CONTROLS WONDER HPV VAC THROTTLE (A) Controls engine speed and the amount of air being blown. Stops the engine when moved to the extreme slow position. CHOKE (B) Move to the “CHOKE” position to apply the choke. Move to the “RUN” position to remove the choke. FUEL SHUT OFF (C) Move to the “OFF”...

  • Page 11: Operation

    LITTLE OPERATION WONDER HPV VAC BEFORE STARTING THE ENGINE Examples of items/areas to avoid. -excessively wet surfaces and debris 1. Read the Operator Manual and Engine Manual. Be- -gravel surfaces come familiar with the controls, how each functions, -large hard objects and what it operates.

  • Page 12: Maintenance / Storage

    2. Replace drain plug, remove fill plug and fill with new the spark plug. oil. Little Wonder recommends SAE 30 oil whenever applicable. 5. Top off if necessary. See engine manual for details.

  • Page 13: Ec Declaration Of Conformity

    Wombwell, Barnsley, South Yorkshire, S73 OBS UK Managing Director Date: July 5, 2010 Declare that the machine described below: Make & TypE ........Little Wonder Walk-behind Lawn Vacuum Category ..........Leaf/Debris Vacuum Series ...........5611 Engine ..........Briggs and Stratton Intek Speed ...........High idle governor setting 3700 rpm ±100rpm Net installed power .......4.5KW (6 HP)

  • Page 14: Southampton, Pa

    TWO YEARS from date of purchase, when used for RESIDENTIAL SERVICE, or COMMERCIAL SERVICE. Any LITTLE WONDER High Performance Vac or part found to be defective within the warranty period is to be returned to any registered LITTLE WONDER Dealer.
