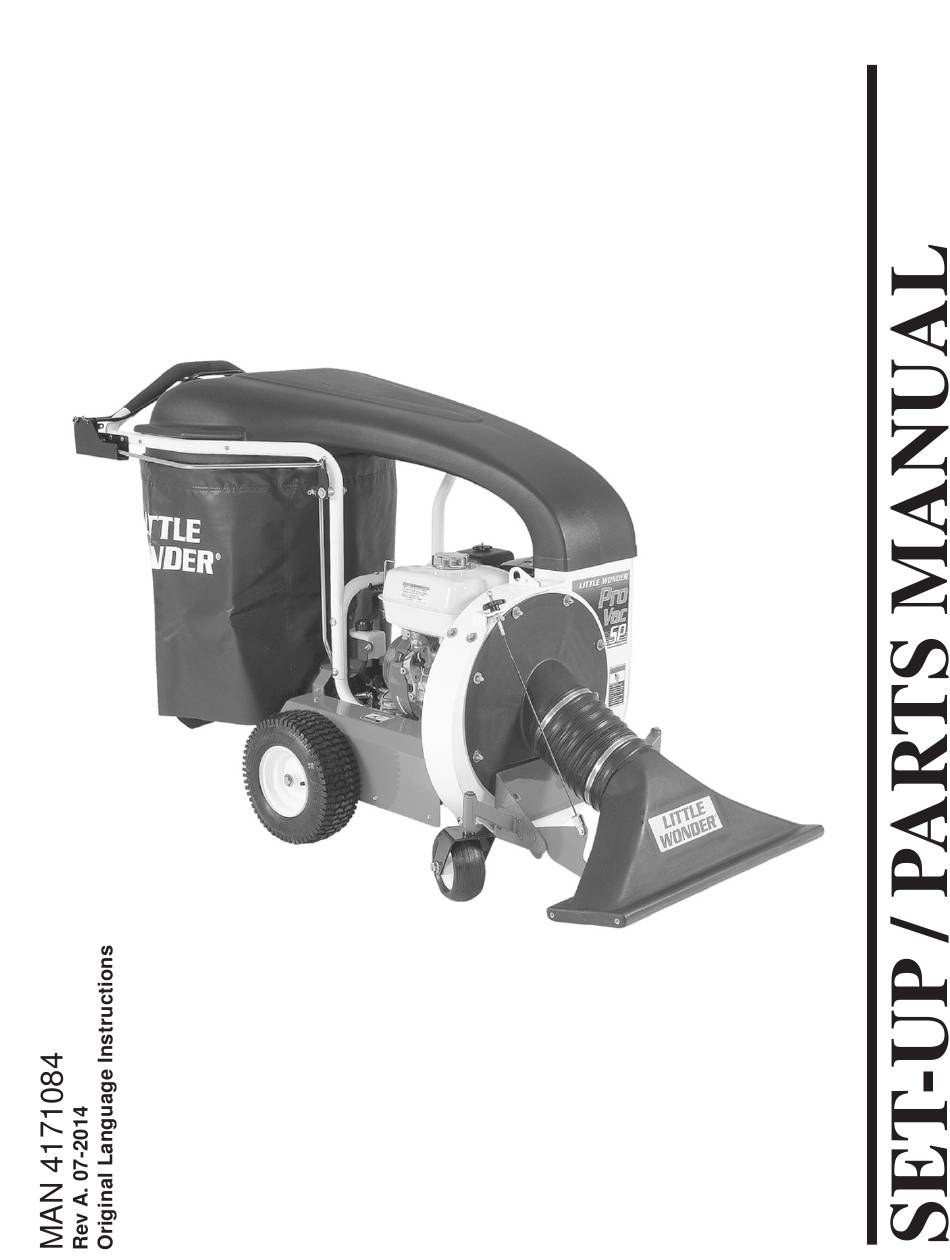

- Page 1 LITTLE WONDER ® PRO VAC SP MODELS: 5612-12-59 HONDA GX270 Operators Manual 4171085...
- Page 2 CALIFORNIA Proposition 65 Warning WARNING Diesel engine exhaust and some The engine exhaust from this product of its constituents are known to the contains chemicals known to the State State of California to cause cancer, of California to cause cancer, birth birth defects and other reproductive defects or other reproductive harm.
-
Page 3: Table Of Contents
PRO VAC SP IMPORTANT MESSAGE Thank you for purchasing this Schiller Grounds Care, Inc. product. You have purchased a world class product, one of the best designed and built anywhere. This machine comes with an Operation and Safety Manual, Parts and Service Manual, and Engine Manual. The useful life and good service you receive from this machine depends to a large extent on how well you read and understand these manuals. -
Page 4: Safety
SAFETY PRO VAC SP This symbol means: NOTICE !!! ATTENTION! Unauthorized modifications may present extreme BECOME ALERT! safety hazards to operators and bystanders and could also result in product damage. Your safety and the safety of others is involved. Schiller Grounds Care, Inc. strongly warns against,... - Page 5 SAFETY PRO VAC SP OPERATOR PREPARATION AND TRAINING SITE PREPARATION AND CIRCUMSTANCES • Evaluate the terrain to determine how to safely READ THE OPERATION & perform the job. Only use accessories and SAFETY MANUAL attachments approved by the manufacturer. •...
- Page 6 SAFETY PRO VAC SP MAINTENANCE SAFETY WARNING Fuel In general • Petrol (gasoline) is flammable; petrol (gasoline) vapors are explosive. Use • Maintain machine according to manufacturer's extra care when handling. schedule and instructions for maximum safety and • Store only in containers specifically best results.
-
Page 7: Set-Up Instructions
•Tuck the other end of the seal strap behind the bracket (overlapping the lead end of the seal strap). The Little Wonder PRO Vac includes a convenient lifting •Feed the tail end of the band clamp behind the lug A on top of the fan housing that can be used to lift the bracket (overlap the seal strap). - Page 8 SET-UP INSTRUCTIONS PRO VAC SP COLLECTOR ASSEMBLY BAND CLAMP SEAL STRAP FRONT PLATE INLET NOZZLE CABLE BRIDGE CLAMPS DEBRIS BAG COTTER PIN HOSE NOZZLE ASSEMBLY WIRE FORM TAIL END ADJUSTMENT BRACKET CLASP BAND CLAMP...
-
Page 9: Controls
CONTROLS PRO VAC SP THROTTLE (A) Controls engine speed and vacuum suction level. CHOKE (B) Move to the “CHOKE” position to apply the choke. Move to the “RUN” position to remove the choke. FUEL SHUT OFF (C) Move to the “OFF” position to shut off the fuel whenever transporting the machine by trailer or truck or during storage. -
Page 10: Maintenance
BELTS 2. Replace the drain plug,remove fill plug and fill with • Check condition of belts for damage or wear. new oil. Little Wonder recommends SAE 30 oil • Replace broken, worn, or damaged belts. whenever applicable. 1. Make sure the engine is off, spark plug is removed, 3. -
Page 11: Storage
STORAGE PRO VAC SP STORAGE To prevent possible explosion or ignition of vaporized fuel, do not store equipment with fuel in tank or carburetor in an enclosure with open flame (for example, a furnace or water heater pilot). DAILY STORAGE 1. -
Page 12: Troubleshooting
TROUBLESHOOTING PRO VAC SP TROUBLESHOOTING COMMON PROBLEMS COMMON CAUSES ENGINE WILL NOT START. • Refer to the section “Operation” in this manual to verify engine starting procedure. (Check the Engine Manual for more • Check the spark plug connection. details.) •... -
Page 13: Parts Section
PARTS SECTION PRO VAC SP PARTS SECTION... -
Page 14: Nozzle / Wheel Assembly
NOZZLE / FRONT WHEEL ASSEMBLY PRO VAC SP FIGURE 1... - Page 15 NOZZLE / FRONT WHEEL ASSEMBLY PRO VAC SP FIGURE 1 ITM PART NO. DESCRIPTION ITM PART NO. DESCRIPTION 4169692.17 WLDMT - BRACKET FRONT 1 600183.17 NOZZLE BRACKET 4169483.17 CASTER SUPPORT 4169484.17 CASTER YOKE - PRO VAC 600133.7 ASSY-NOZZLE CLAMP PLA 1 4170312 CASTER WHEEL 6.25X3...
-
Page 16: Fan / Engine Assembly
FAN ASSEMBLY PRO VAC SP FIGURE 2... - Page 17 ENGINE-HONDA GX270 4171119 S-HOUSING PROVAC 600114 IMPELLER-BALANCED 600198 FRONT PLATE 600175 LINER 4168849.17 WLDMT DECK - PRO VAC SP 4168845.10 WLDMT SPACER HONDA 4168843 SHEAVE ENGINE 4168957 PULLEY AK 28 - PROVAC SP 10 4168956 BELT 4L260 - PROVAC SP 4168840 SPACER HONDA .85 SP...
- Page 18 MAIN FRAME ASSEMBLY PRO VAC SP FIGURE 3...
-
Page 19: Main Frame Assembly
MAIN FRAME ASSEMBLY PRO VAC SP FIGURE 3 ITM PART NO. DESCRIPTION ITM PART NO. DESCRIPTION 4168849.17 WLDMT DECK 4169743 HOSE ADPTR, SAE7/16-20 1 4171120 S-SIDE GUARD 64123-283 BLT-HEX 1/4-20X1-3/4 4168851.17 REAR GAURD 600504 BOLT, CRG, 3/8-16x2-1/4, 4169476.17 DECK AIR SPACER... -
Page 20: Handle Assembly
HANDLE ASSEMBLY PRO VAC SP FIGURE 4 44 42 45... - Page 21 HANDLE ASSEMBLY PRO VAC SP FIGURE 4 ITM PART NO. DESCRIPTION ITM PART NO. DESCRIPTION 600153 GRIP-HANDLE, LAWN VAC 2 4168839 STANDOFF TRACTION 4168832.10 HANDLE LOWER 4171130 HANDLE UPPER 4168837.7 TRACTION ROD UPPER 4168848.7 BELLCRANK 4168834.7 BRACKET BAIL RT 4169477.7 WLDMT-BAIL FORWARD 4169480.7...
- Page 22 LITTLE WONDER will repair or replace, at its option, any part or parts of the product found to be defective in ma- terial or workmanship during the warranty period. Warranty repairs and replacements will be made without charge for parts or labor.
