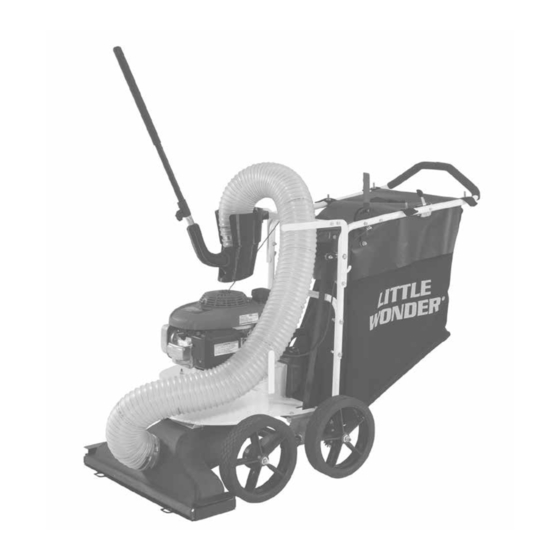

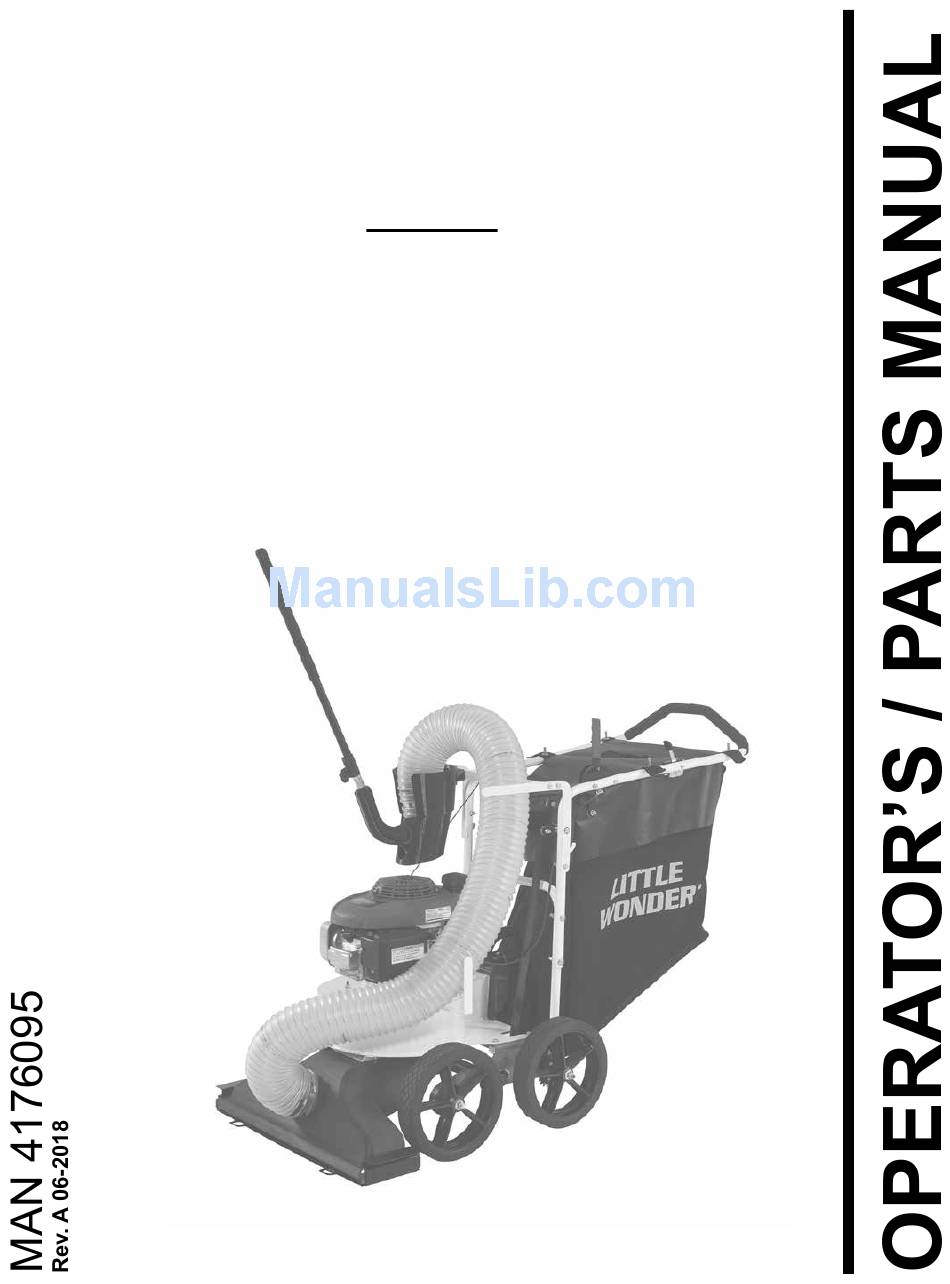

- Page 1 LITTLE WONDER PROVAC SI MODEL: 5511-02-01 PROVAC SI, HONDA PUSH (US) 5511-02-12 PROVAC SI, HONDA PUSH (AUS)
-
Page 2: Table Of Contents
IMPORTANT MESSAGE On behalf of everyone at Little Wonder, we would like to thank you for your purchase of a Little Wonder PROVAC SI. This lawn/debris vacuum was designed to the highest standards to ensure you many hours of uninterrupted service. -
Page 3: Safety
LITTLE SAFETY WONDER PROVAC SI WARNING The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. CALIFORNIA Proposition 65 Warning Battery posts, terminals, wiring insulation, and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and birth... - Page 4 LITTLE SAFETY WONDER PROVAC SI This symbol means: ATTENTION! Unauthorized modifications may present extreme BECOME ALERT! safety hazards to operators and bystanders and could also result in product damage. Your safety and the safety of others is involved. Schiller Grounds Care, Inc. strongly warns against, Signal word definitions rejects and disclaims any modifications, add-on accessories or product alterations that are not...
- Page 5 LITTLE SAFETY WONDER PROVAC SI SITE PREPARATION AND CIRCUMSTANCES – Evaluate the terrain to determine how to safely READ AND UNDERSTAND ALL INSTRUCTIONS. perform the job. Only use accessories and Failure to follow all instructions listed below may result in attachments approved by the manufacturer.
- Page 6 LITTLE SAFETY WONDER PROVAC SI OPERATING SAFELY OPERATING ON SLOPES IN GENERAL – Slopes are a major factor in loss of control and tip over – Use extra care when loading or unloading the accidents that sometimes lead to severe injury or death. machine into a trailer or truck.
-
Page 7: Maintenance Safety
LITTLE SAFETY WONDER PROVAC SI Fuel – Never tamper or remove safety devices. Check their proper operation regularly. WARNING – Petrol (gasoline) and diesel – Before cleaning, repairing, or inspecting, stop fuels are flammable; petrol the engine, wait for all moving parts to stop, and (gasoline) vapors are explo- disconnect the spark plug. -
Page 8: Labels
LABELS LITTLE WONDER PROVAC SI SAFETY DECALS An important part of the safety system incorporated in the vacuum is the warning labels found on the vacuum. Replace labels if damaged or illegible. Fan blades can cut/crush -Keep hands out and feet away. Fan blades can cut/crush -Stop engine and remove spark plug wire -Keep hands out and feet away. - Page 9 LITTLE SET-UP INSTRUCTIONS WONDER PROVAC SI Do not use this product if it is not completely assembled or if any parts appear to be missing or damaged. Use of a product that is not properly and completely assembled could result in seri- ous personal injury.
-
Page 10: Set-Up Instructions
LITTLE SET-UP INSTRUCTIONS WONDER PROVAC SI 5. Using the upper handle tilt the unit back and rest the Intake Nozzle on a block 2-3 inches off the ground. Using the adjustable 9/16” wrench, remove the hardware that is already fastened to the short free end of the Bell Crank. - Page 11 LITTLE SET-UP INSTRUCTIONS WONDER PROVAC SI 8. On the bag, loosen the strap located on the front panel cutout. Insert the oval end of the exhaust nozzle into the bag as shown in Figure 6. Tighten the bag strap around the exhaust nozzle ensuring the strap falls in the recess as noted in Figure 6.
-
Page 12: Controls
LITTLE CONTROLS WONDER PROVAC SI THROTTLE HONDA(A) Controls the engine speed and the amount of air being vacuumed. Stops the engine when moved to the extreme slow position. Engages the choke when moved to the extreme fast position. FUEL SHUT OFF (B) Move to the “OFF”... -
Page 13: Operation
LITTLE OPERATION WONDER PROVAC SI 5. After the engine starts and begins to warm, slowly pull the throttle lever rearwards until the throttle lever falls In some countries regulations define at what time into the next detent. The unit is now in the maxi- of the day and on what special days products are mum running position of the throttle and the choke allowed to be used and what restrictions apply! Ask... - Page 14 LITTLE OPERATION WONDER PROVAC SI STOPPING THE ENGINE 1. Turn off the engine by moving the throttle to the Before performing any type of maintenance on the “STOP” position. Let the engine and fan come to a machine, stop engine, wait for all parts to stop mov- complete stop.
-
Page 15: Fan Removal
LITTLE FAN REMOVAL AND INSTALLATION WONDER PROVAC SI 6. Remove bolt E and spacer D to remove fan C from the engine crankshaft. The fan has a relief cut into the hub for use with standard fan pullers. The bolt Before performing any type of maintenance on the that secures the fan to the engine crankshaft can be machine, stop engine, wait for all parts to stop mov-... -
Page 16: Maintenance / Storage
Top off if necessary. See engine manuals for details. 2. Replace drain plug, remove fill plug and fill with new 3. Start the engine and check for fuel leaks. Repair any oil. Little Wonder recommends SAE 30 oil whenever leaks before operating the unit. applicable. -
Page 17: Troubleshooting
Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by an authorized service center or a similarly qualified specialist if you cannot solve the problem yourself! For assistance contact the Little Wonder Customer Service Center at 1-877-596-6337 IF THESE SOLUTIONS DO NOT SOLVE THE PROBLEM, CONTACT YOUR AUTHORIZED SERVICING DEALER. -
Page 19: Parts Section
LITTLE PARTS SECTION WONDER PROVAC SI PARTS SECTION... -
Page 20: Bagger & Nozzle Assembly
LITTLE BAGGER & NOZZLE ASSY WONDER FIGURE 1 PROVAC SI... - Page 21 LITTLE BAGGER & NOZZLE ASSY WONDER FIGURE 1 PROVAC SI ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 64262-006 BLT-FLG HD 5/16-18 3/4 64268-02 NUT-FL NYLON LOCK 5/16-18 4175183 SPRING, CHUTE 4174977 NOZZLE, EXHAUST” 4175283 PUSHNUT, STUD RETAINER 5/16 4175284 CLEVIS PIN, 5/16 X 2-1/8 4175049 BAG, FILTER MESH...
-
Page 22: Handle Assembly
LITTLE HANDLE ASSEMBLY WONDER FIGURE 2 PROVAC SI... -
Page 23: Handle Assembly .......................................... Figure 2
LITTLE HANDLE ASSEMBLY WONDER FIGURE 2 PROVAC SI ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 64268-02 NUT-FL NYLON LOCK 5/16-18 64268-03 NUT-FL NYLON LOCK 3/8-16 64123-67 BLT-HEX 3/8-16X2 4174981.17 WLDMNT-FRONT AXLE C400429 TINE ENGAGEMENT BUSHING 64262-024 BLT-FLG HD 5/16-18 X 2-1/2 64262-020 BLT-FLG HD 3/8-16 X 2-3/4 64262-011... -
Page 24: Engine Body Assembly
ENGINE BODY ASSEMBLY LITTLE WONDER FIGURE 3 PROVAC SI... - Page 25 LITTLE ENGINE BODY ASSEMBLY WONDER FIGURE 3 PROVAC SI ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION ITEM PART NO DESCRIPTION QTY. 64018-9 BLT-CRG 5/16-18X3/4 G5 4174972 BEARING, 3/4 FLUSH 4176175 S-HOUSING INCLUDES ITEMS 30-31 4174978.17 WELDMENT, FRAME 4174981.17 WELDMENT, FRONT AXLE 64268-02 NUT-FL NYLON LOCK 5/16-18 64268-03...
- Page 26 NOZZLE GUARD KIT (4176173) LITTLE WONDER FIGURE 4 PROVAC SI...
-
Page 27: Nozzle Side Guard Kit
NOZZLE GUARD KIT (4176173) LITTLE WONDER FIGURE 4 PROVAC SI ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4175792 BOLT, LW PROFILE 5/8-16 5/8 LNG 4175791.7 WELDMENT, NOZZLE RIGHT GUARD 1 4175790.7 WELDMENT, NOZZLE LEFT GUARD... -
Page 28: Provac Si Hose Kit
PROVAC SI HOSE KIT (4176172) LITTLE WONDER FIGURE 5 PROVAC SI... - Page 29 PROVAC SI HOSE KIT (4176172) LITTLE WONDER FIGURE 5 PROVAC SI ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 64268-02 NUT-FL NYLON LOCK 5/16-18 4175296 CLAMP, HOSE KIT 4175204.7 PLATE, HOSE BOTTOM 4175206 HOLDER, HOSE 4175199 NOZZLE, HOSE 4175291.10 BRACKET, RIGHT HOSE 4175292.10 BRACKET, LEFT HOSE 4175773.10...
- Page 30 LITTLE WONDER will repair or replace, at its option, any part or parts of the product found to be defective in ma- terial or workmanship during the warranty period. Warranty repairs and replacements will be made without charge for parts or labor.
