Little Wonder 5621 Manual

Self-propelled high performance vac
Hide thumbs Also See for 5621:

Advertisement

S
P
E L F
R O P E L L E D
Models 5621 and 5631
© 2005 Little Wonder, Div. of Schiller-Pfeiffer Inc. All Rights Reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5621 and is the answer not in the manual?

Questions and answers

Summary of Contents for Little Wonder 5621

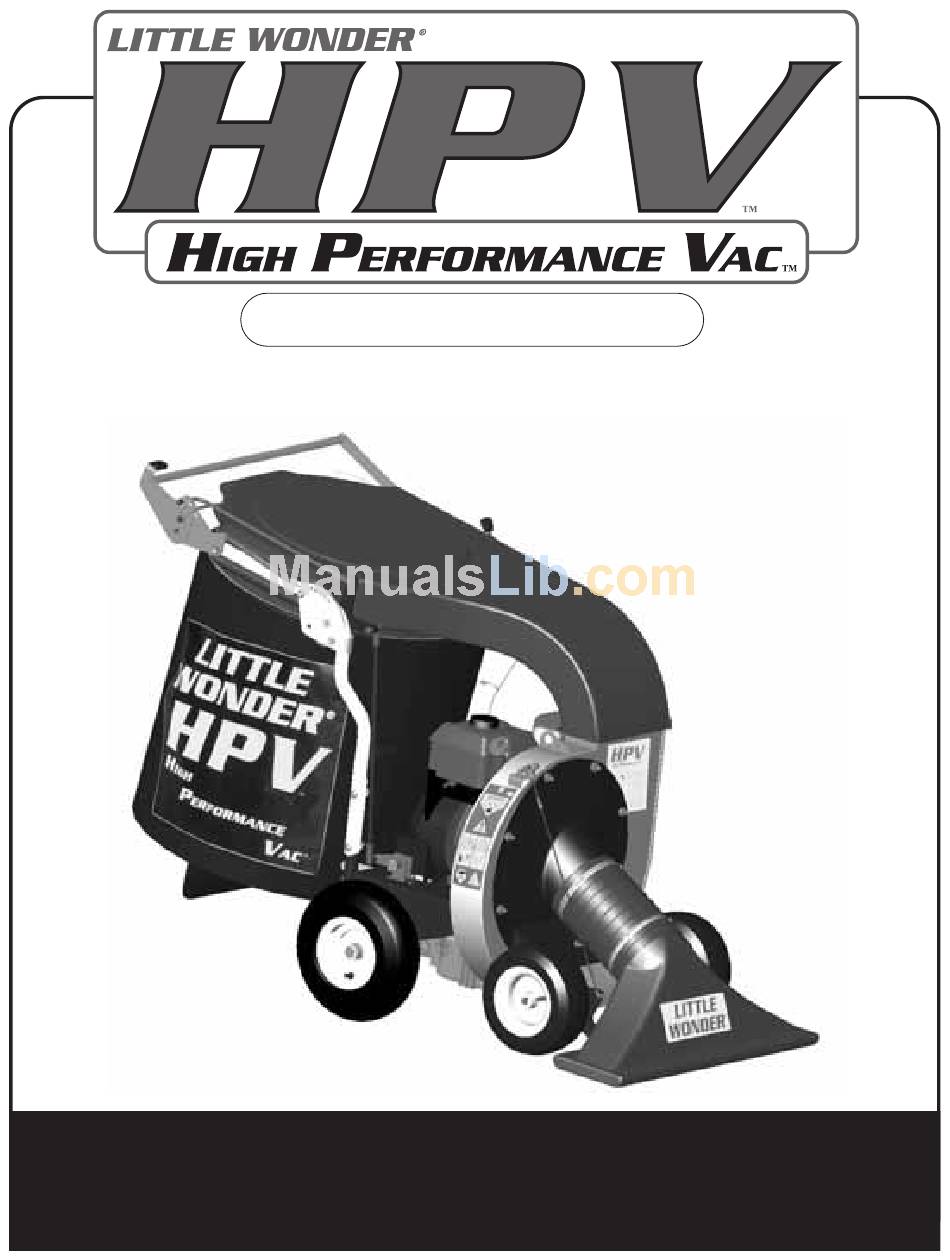

  • Page 1 E L F R O P E L L E D Models 5621 and 5631 © 2005 Little Wonder, Div. of Schiller-Pfeiffer Inc. All Rights Reserved.
  • Page 2: Table Of Contents

    For your safety, it is critically important that you read and understand this entire manual before operating your High Performance Vac. Specifications: Model Dry Weight 5621 258 lbs. 5631 260 lbs. B. Service Information High Performance Vac Unit Contact your local Little Wonder dealer.
  • Page 3: Unpackaging Information

    Unpacking 1. Remove Collector assembly, Nozzle assembly, and Debris bag from the top section of the package. 2. Remove cardboard insert. 3. Cut away short side of box and fold down. 4. Pull and latch “transaxle engagement lever.” See page 9. 5.
  • Page 4 Safety and Warnings P/N 600605 Warning Label P/N 600604 P/N 600602 Warning Label...
  • Page 5: General Safety Rules

    General Safety Rules 1. Read and understand manual. 2. Wear eye, hearing, and breathing protection, proper clothing and footwear. 3. While operating the machine always be sure of a safe and secure operating position, maintain a firm footing and good balance at all times. 4.
  • Page 6: Engine/ Fuel Warnings - "Don'ts

    Warnings - "Do’s" Continued Always store High Performance Vac indoors. When not in use, store High Performance Vac indoors in a sheltered area (a dry place) where it’s not accessible to children. The High Performance Vac, as well as fuel, should not be stored in a house.
  • Page 7: Assembly Instructions

    Assembly Instructions A. Assembly 1. Attach the collector assembly to the base unit: • Bolt the collector assembly to the frame with 4 sets of bolts, washer, and nuts • Slide the rectangular end of the collector over the housing and mount the flange with 2 sets of washers and nuts 2.
  • Page 8: Speed Controller Setup

    7. Speed Controller Setup 1. Attach the Lower Connecting Rod Assembly to the Lower Bellcrank. Attach Lower Connecting Rod Assembly to the Lower Bellcrank with a 3/8”-24 Nyloc Nut. Tighten using 9/16” and 1/2” wrenches. 2. Setup the Speed Controller Mechanism – Critical for proper operation.
  • Page 9: Put Oil And Gasoline In Engine Before Starting

    g. If the Actuator Pin enters into the Rear Slot as show below, the Upper Connecting Rod Assembly is too long and must be shortened. Remove the nut that holds the Rod End to the Upper Bellcrank. ii. Disconnect the Rod End from the Upper Bellcrank.
  • Page 10: Use Of Lifting Lug

    C. Use of Lifting Lug Little Wonder High Performance Vac is supplied with convenient Lifting Lug that can be used when you need to move or tie down the unit. WARNING DANGER DO NOT USE OR SERVICE THE UNIT WHEN IT’S SUSPENDED FROM THE LIFTING LUG.
  • Page 11: Vacuuming

    C. Vacuuming 1. Adjust nozzle to desired height by turning the nozzle control knob, secure position with wing nut. 2. Vacuum debris from lawn or paved surfaces. Vacuum the following: leaves, small twigs and sticks, acorns, thistles, seed pods, grass clippings, straw, wood chips, dry mulch, litter, small cans &...
  • Page 12: Storage And Maintenance

    Storage and Maintenance A. Storage 1. After each use, run HPV with the empty bag attached to help clear out any loose material in the housing. 2. When not in use store High Performance Vac in sheltered area (a dry place) not accessible to children. Keep throttle in the “Stop”...
  • Page 13: Removing Blockage In Moving Parts

    C. Removing Blockage in Moving Parts WARNING TURN OFF ENGINE BEFORE YOU DISCONNECT HOSE, AND MAKE SURE ALL MOVING PARTS COME TO A COMPLETE STOP. WARNING BE SURE THROTTLE IS IN “STOP” POSITION, AND FAN HAS COME TO A COMPLETE STOP. WARNING DISCONNECT THE SPARK PLUG WIRES BEFORE ANY CLEANING OR MAINTENANCE!
  • Page 14: Hpv Parts Assembly

    HPV Parts Assembly 13 4x CONNECT TO ENGINE THROTTLE LEVER 44 4x...
  • Page 15: Hpv Parts List

    HPV Parts List ESCRIPTION SEE DETAIL 6.5 HP ENGINE ASSEMBLY SEE DETAIL DECK ASSEMBLY 600193 TRANSAXLE 600184 HANDLE MOUNT 600251 BELT GUARD 600186 HOUSING - WITH OUT LINER HOLES 600187 HOUSING - WITH LINER HOLES 600114 IMPELLER-BALANCED 600118 FRONT PLATE 600182 BRACKET, FRONT WHEELS 600188...
  • Page 16: Hpv Engine Assembly

    HPV Engine Assembly KEY NO. PART NO. DESCRIPTION 600901 ENGINE, 6.5 HP 600901 RECOIL, SUPPLIED W/ ENGINE (600901) 600901 NUT, SUPPLIED W/ ENGINE (600901) 600901 BOLT, SUPPLIED W/ ENGINE (600901) 600194 PULLEY, ENGINE 600249 STANDOFF , ENGINE 600200 BELT, V, LV W/ TRANS 600238 KEY, ENGINE PULLEY HPV Deck Assembly...
  • Page 17: Hpv Collector Assembly

    HPV Collector Assembly KEY NO. PART NO. DESCRIPTION 600101 DISCHARGE COLLECTOR 600130 HANDLE 600142 FLANGE CLAMP PLATE 600138 FLANGE ANGLE-COLLECTOR 600242 BRACKET, BELLCRANK, HANDLE 600206 BELLCRANK, HANDLE 600215 BAIL HANDLE 600211 REVERSE LEVER 600271 CAP, REVERSE LEVER 600161 HOOK STRIP 600605 WARNING LABEL - DEBRIS BAG 600260...
  • Page 18: Hpv Liner Assembly

    HPV Liner Assembly (MODELS 5611 & 5631 ONLY) HPV Nozzle Assembly KEY NO. PART NO. DESCRIPTION 600100 NOZZLE 600133 NOZZLE CLAMP PLATE ASSEMBLY 600183 NOZZLE BRACKET, VER. 2" 114B NUT, SERRATED FLANGE, 5/16-18 KEY NO. PART NO. DESCRIPTION 600187 HOUSING ASSEMBLY, WITH LINER HOLES 600175 LINER 720592...
  • Page 19: Warranty

    1 YEAR LIMITED SERVICE & WARRANTY POLICY The Little Wonder High Performance Vac is guaranteed against defects in material and workmanship for a period of ONE YEAR from date of purchase, when used for RESIDENTIAL SERVICE, or COMMERCIAL SERVICE. Any Little Wonder High Performance Vac or part found to be defective within the warranty period is to be returned to any registered Little Wonder Dealer.

This manual is also suitable for:

5631Hpv 5621Hpv 5631
